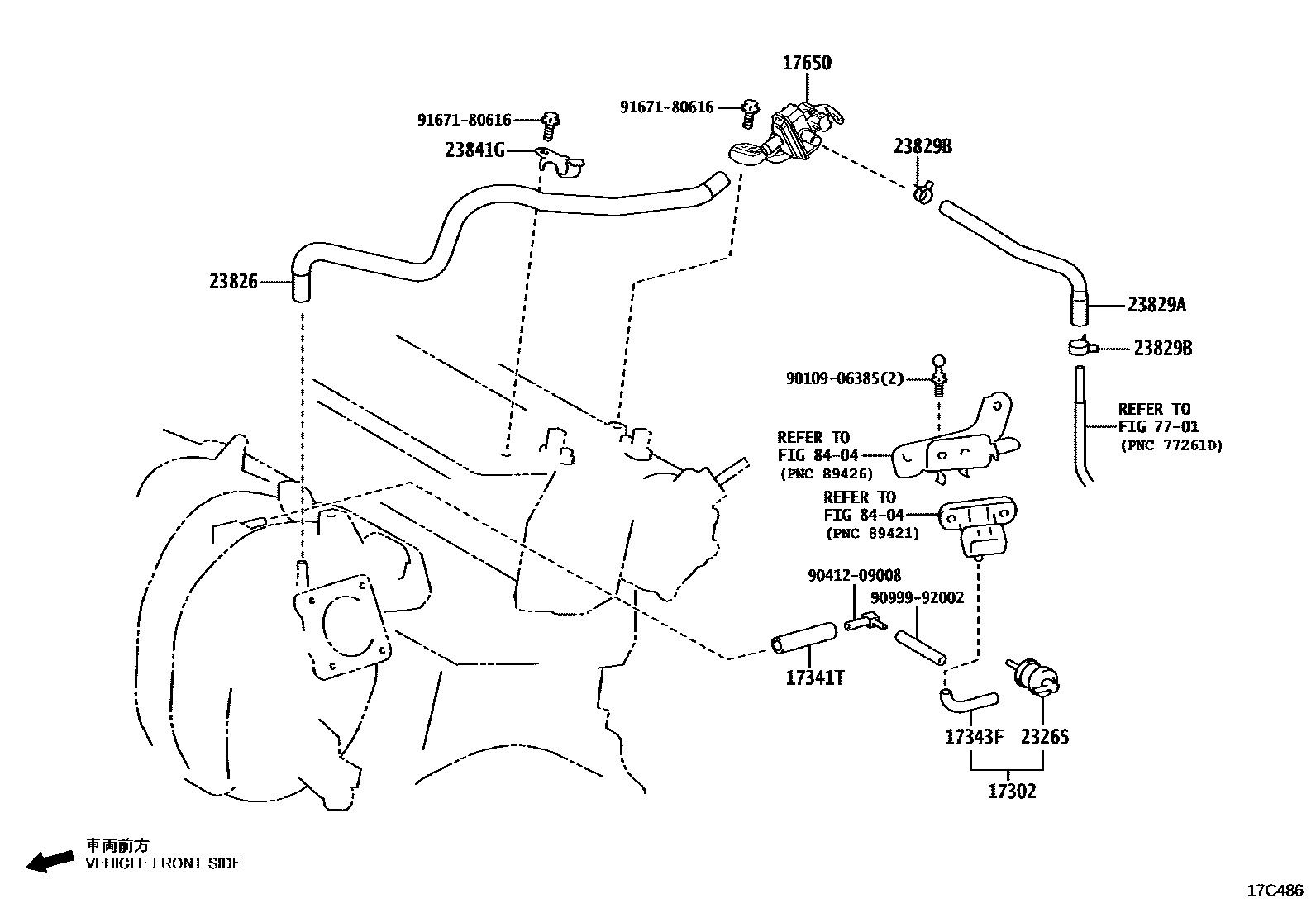

VACUUM PIPING

0001 1 0002 1

17302HOSE SUB-ASSY, AIR

main17302-37010i2ZRFAE..ZRE212201909

17341THOSE, AIR, NO.1

main17341-37070i2ZRFAE..ZRE212201909

17343FHOSE, AIR, NO.3

main17343-37050i2ZRFAE..ZRE212201909

17650VALVE ASSY, VACUUM SWITCHING

main25860-37130i2ZRFAE..ZRE212201909

23265FILTER, GAS, NO.1

main90917-11038i2ZRFAE..ZRE212201909

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-37220i2ZRFAE..ZRE212202002

main23826-37250i2ZRFXE..ZWE219202210-202411

main23826-37340i2ZRFXE..ZWE219202411

main23826-37360i2ZRFAE..ZRE212201909-202001

23829AHOSE, FUEL VAPOR FEED

main23826-37300i2ZRFAE..ZRE212201909

main23826-37420i2ZRFXE..ZWE219202210

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300×2i2ZRFAE..ZRE212201909

main96136-41901i2ZRFXE..ZWE219202210

23841GCLAMP, FUEL HOSE

main23841-0T060i2ZRFAE..ZRE212201909

MADE IN TMMNA

main23841-37180i2ZRFAE..ZRE212201909

MADE IN JAPAN

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010906385

main90109-06385

9041209008

main90412-09008

9099992002

main90999-92002

9167180616

main91671-80616

15 parts on this diagram · 2 diagrams in section
