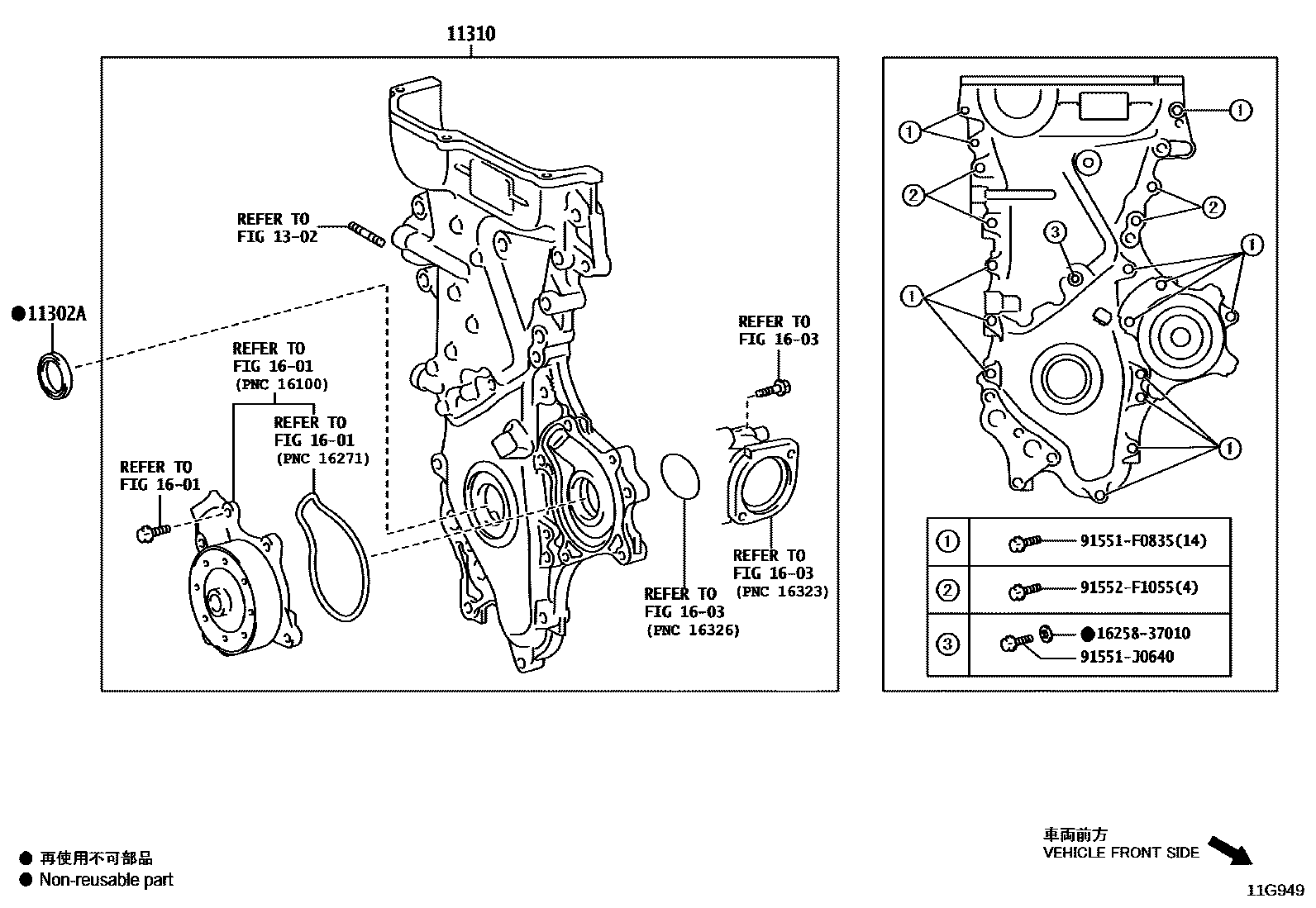

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38096i2ZRFAE..ZRE212201909

11310COVER ASSY, TIMING CHAIN

main11310-37100i2ZRFAE..ZRE212201909

main11310-37110i2ZRFXE..ZWE219202210

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

9 parts on this diagram · 2 diagrams in section
