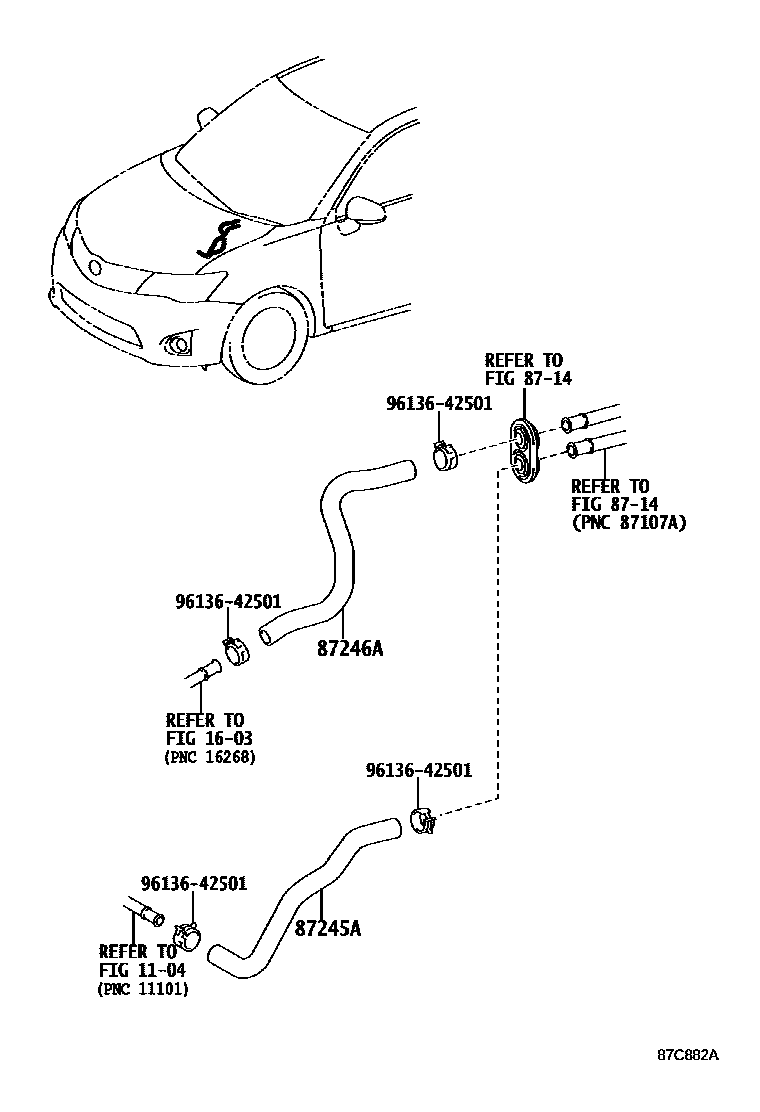

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87209-52191iNZE161..CVT201206-201207

main87209-52192iNZE161..CVT201208-201503

main87245-52120iNZE161..5F201204-201503

main87245-52300iNRE161201503-201710

87246AHOSE, HEATER WATER, OUTLET A

main87245-52110iNZE161201503-201710

main87245-52330iNRE161201503-201710

9613642501

main96136-42501
