HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

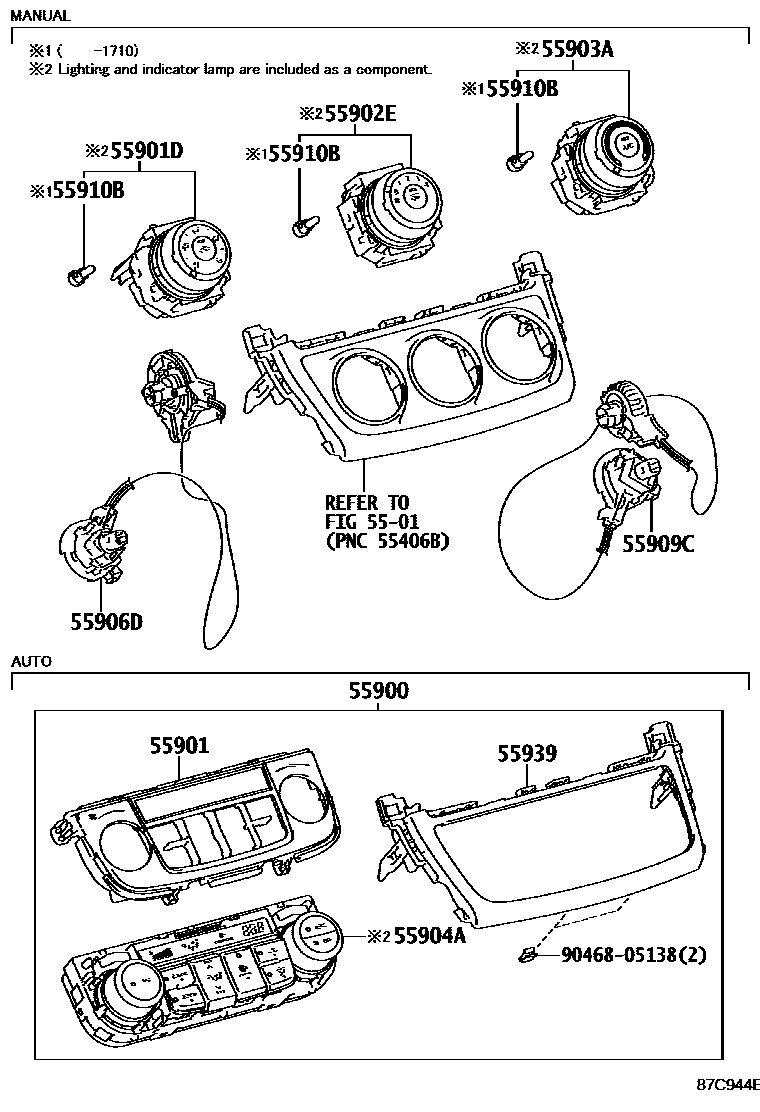

55900CONTROL ASSY, AIR CONDITIONER

main55900-12D90iNZE161..E201212-201503

main55900-12E50iNRE161..E201503-201710

55901BASE SUB-ASSY, HEATER CONTROL

main55901-12260iNZE161..E201212-201503

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-12230iNZE161..N201204-201503

main55901-12250iNRE161,NZE161201710-201908

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-12150iNZE161..N201204-201503

main55902-12350iNRE161,NZE161201710-201908

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-12190iNZE161..N201204-201503

main55903-12280iNRE161,NZE161201710-201908

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-12020iNZE161..E201212-201503

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-52132iNZE161..N201204-201503

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26080iNZE161..N201204-201503

55910BBULB, HEATER CONTROL

main90010-01113×3iNZE161..N201204-201503

55939ORNAMENT, HEATER CONTROL

main55939-12040iNZE161..E201212-201503

main55939-12060iNRE161..E201503-201710

9046805138

main90468-05138

12 parts on this diagram · 3 diagrams in section
