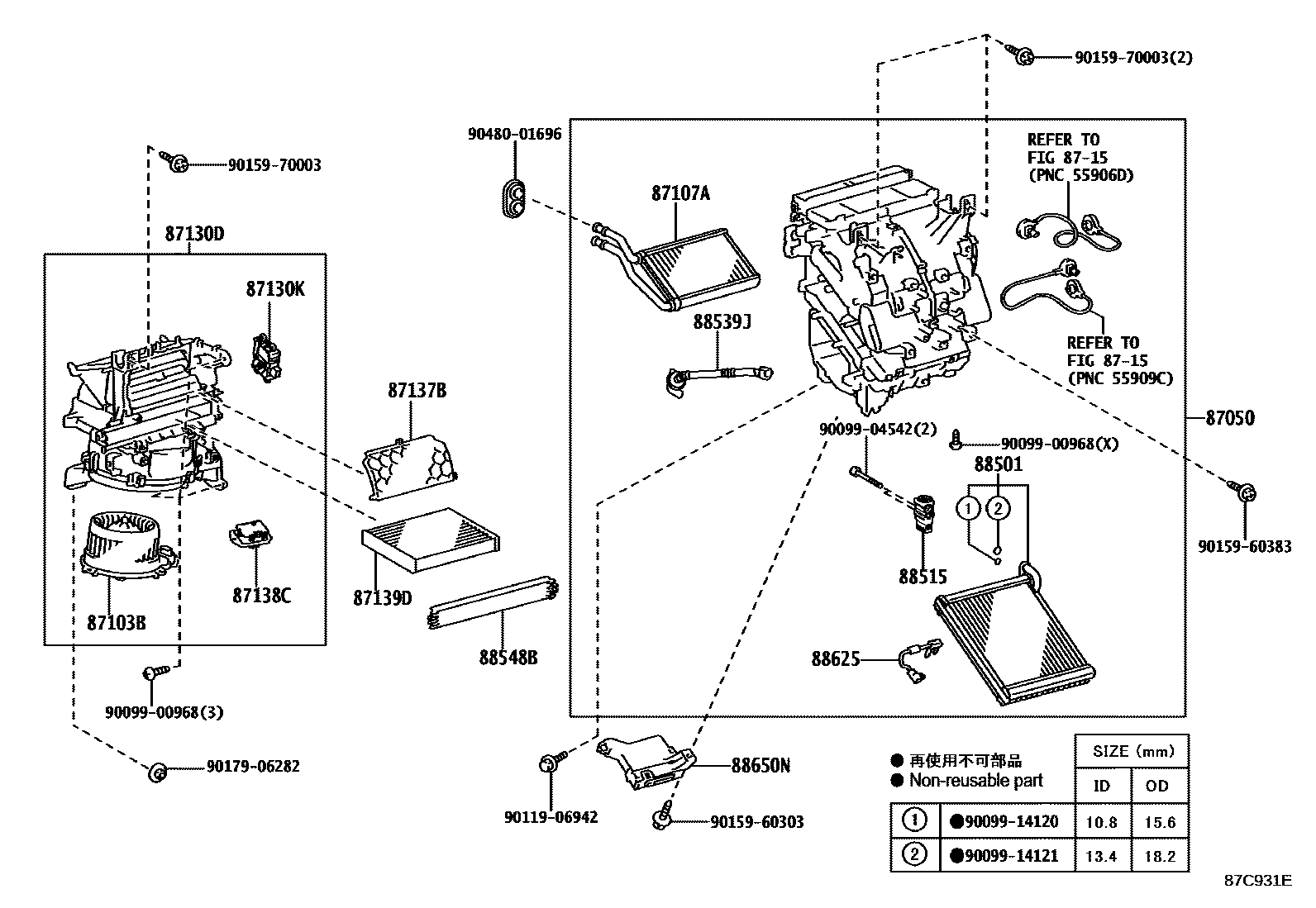

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12690iNZE161..N201204-201308

main87050-12691iNRE161,NZE161201710-201908

main87050-12730iNZE161..E201212-201310

main87050-12731iNZE161..5D..CVT; NZE161..E201311-201503

SMART ENTRY-WITH

main87050-52480iNRE161..E201503-201710

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-12110iNRE161,NZE161..N201503-201710

main87103-52200iNRE161..E201503-201710

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52070iNZE161201204-201503

87130DBLOWER ASSY

main87130-12500iNZE161..N201204-201503

main87130-52190iNRE161..E201503-201710

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-12180iNRE161,NZE161..N201503-201710

main87106-52150iNZE161..E201212-201503

87137BCOVER, HEATER BLOWER

main87137-52010iNRE161,NZE161201503-201710

87138CRESISTOR, BLOWER

main87138-52030iNZE161..N201204-201503

87139DELEMENT, AIR REFINER

main87139-52040iNRE161,NZE161201710-201908

POLLEN FILTER

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12520iNZE161201204-201503

main88501-52130iNRE161..E201503-201710

88515VALVE, COOLER EXPANSION

main88515-52090iNRE161..E201503-201710

main88515-68010iNRE161,NZE161201710-201908

88539JHOSE, DRAIN COOLER

main88539-52030iNZE161201204-201503

main88539-52060iNRE161,NZE161201805-201908

88548BCASE, AIR FILTER

main88548-52040iNRE161,NZE161201503-201710

88625THERMISTOR, COOLER, NO.1

main88620-12090iNRE161..E201503-201710

main88620-52010iNRE161,NZE161201710-201908

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-12J40iNZE161..N201204-201503

main88650-12J60iNZE161..E201212-201503

main88650-12L00iNRE161,NZE161..N201503-201710

main88650-12L20iNRE161..E201503-201710

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906942

main90119-06942

9015960303

main90159-60303

9015960383

main90159-60383

9015970003

main90159-70003

9017906282

main90179-06282

9048001696

main90480-01696

25 parts on this diagram · 2 diagrams in section
