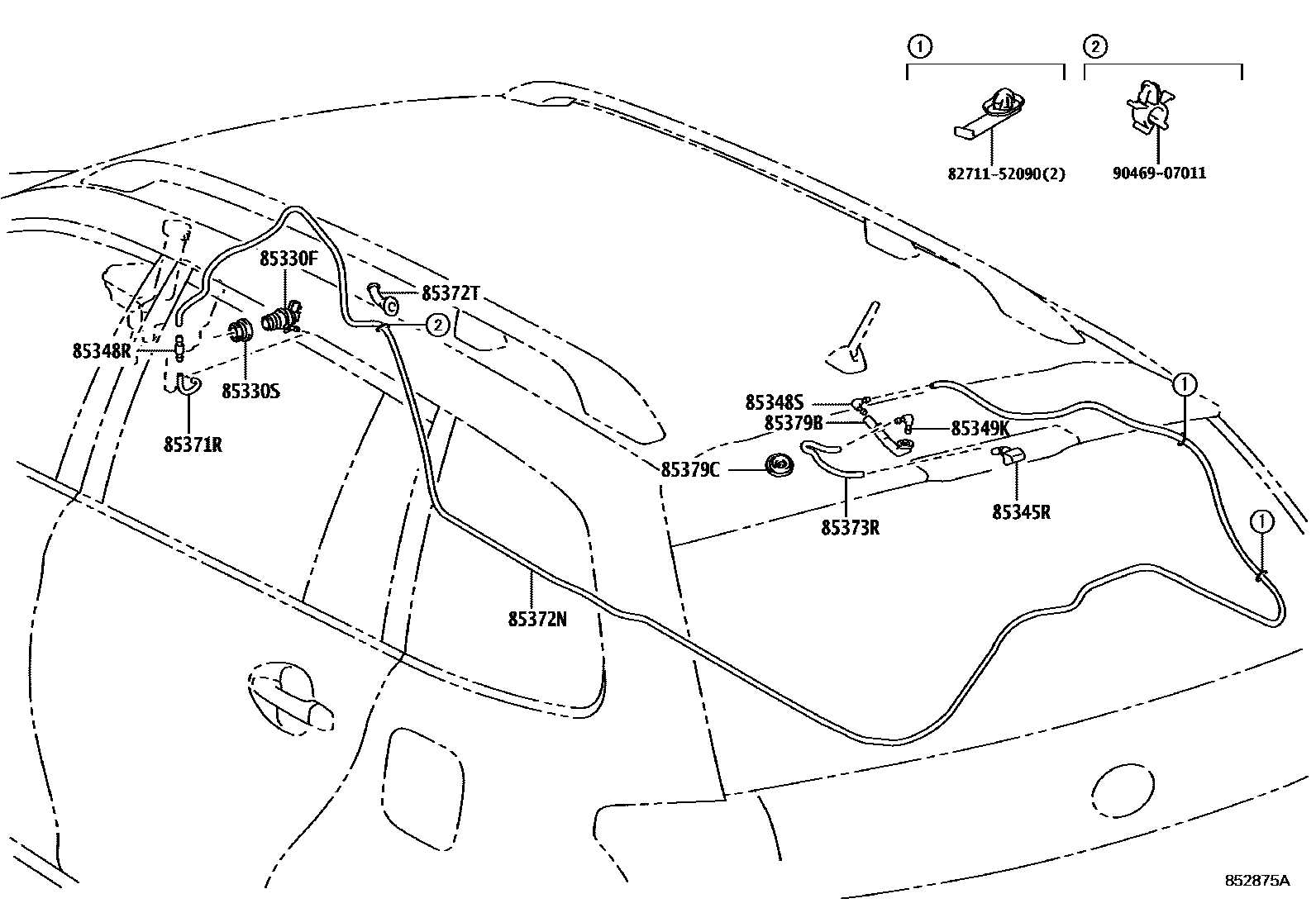

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iNZE161..5D201204-201908

85330SBUSH, REAR WASHER JAR

main85336-60300iNZE161..5D201204-201908

85345RNOZZLE, REAR WASHER

main85391-13060iNZE161..5D201204-201908

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNZE161..5D201204-201908

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNZE161..5D201204-201908

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNZE161..5D201204-201908

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iNZE161..5D201204-201908

L=1450(*H,L=100)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595iNZE161..5D201204-201503

L=5093

main90099-59369iNRE161,NZE161..5D201503-201908

L=5093

85372TGROMMET, WASHER

main85379-52530iNZE161..5D201204-201908

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNRE161,NZE161..5D201204-201908

L=1000(*H,L=280)

85379BGROMMET, WASHER, A

main85372-20040iNRE161,NZE161..5D201409-201908

main85373-12030iNZE161..5D201204-201408

85379CGROMMET, REAR WASHER HOSE NO.1

main85373-13020iNZE161..5D201204-201908

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9046907011

main90469-07011

14 parts on this diagram · 1 diagram in section
