WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1FLOOR & ROOF 0008 1CLAMP & BLACKET 0009 1CONNECTOR 1/2 0010 1CONNECTOR 2/2

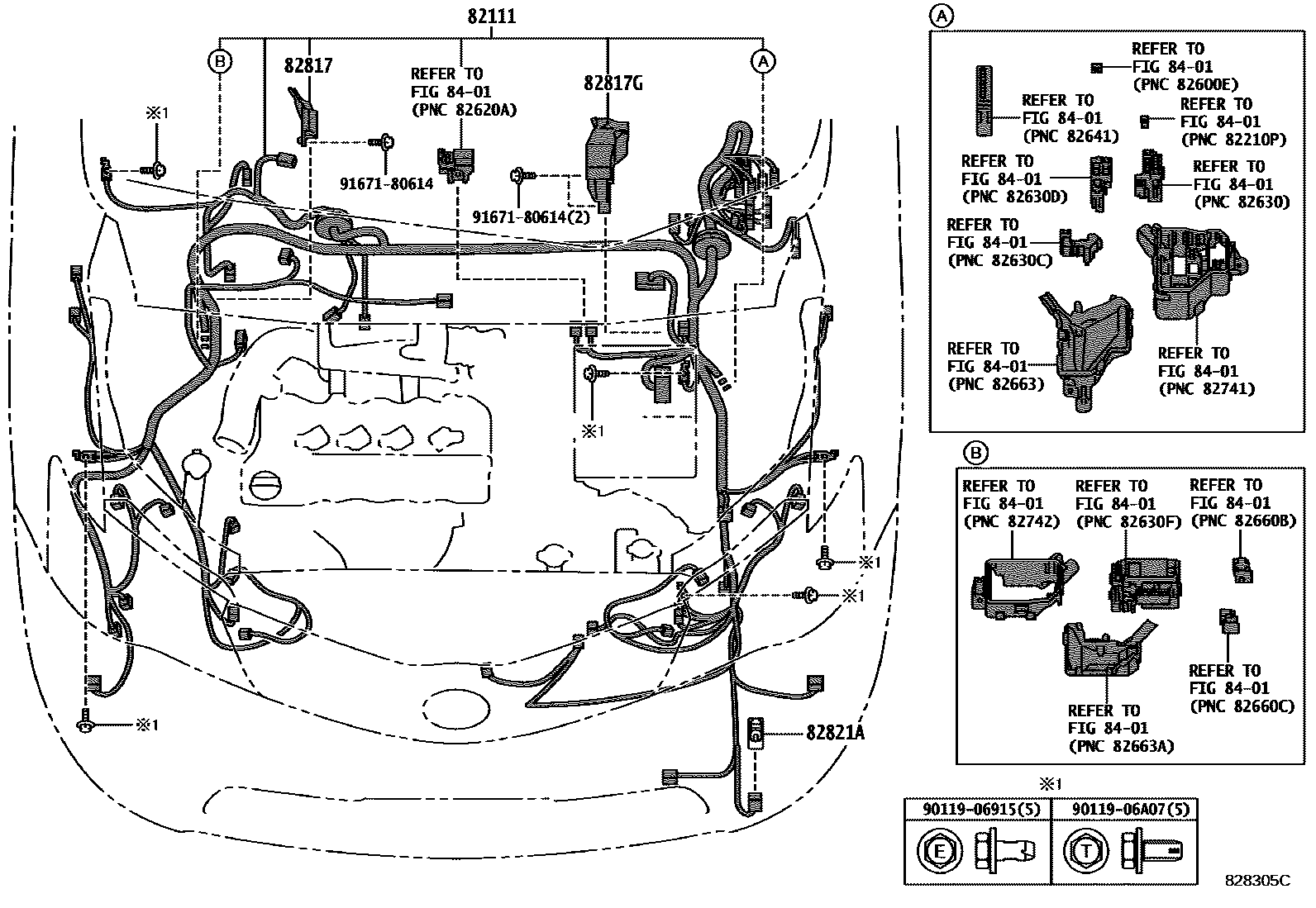

82111WIRE, ENGINE ROOM MAIN

main82111-1HK92iNZE161..5F201204-201503

main82111-1HL32iNZE161..5D..CVT201206-201503

main82111-1HL62iNZE161..E201212-201503

main82111-1HM72iNZE161..4D..N201212-201503

main82111-1HS40iNZE161201503-201710

main82111-1HS41iNZE161201710-201908

main82111-1HT71iNRE161..5D201710-201908

main82111-1HX40iNRE161..4D201503-201710

main82111-1HX41iNRE161..4D201710-201908

main82111-1HX50iNRE161..5D201503-201710

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-52C00iNZE161201204-201908

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-52A20iNZE161201204-201908

82821ACOVER, CONNECTOR

main82119-12050iNRE161,NZE161201710-201908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9011906A07

main90119-06A07

9167180614

main91671-80614

8 parts on this diagram · 10 diagrams in section
