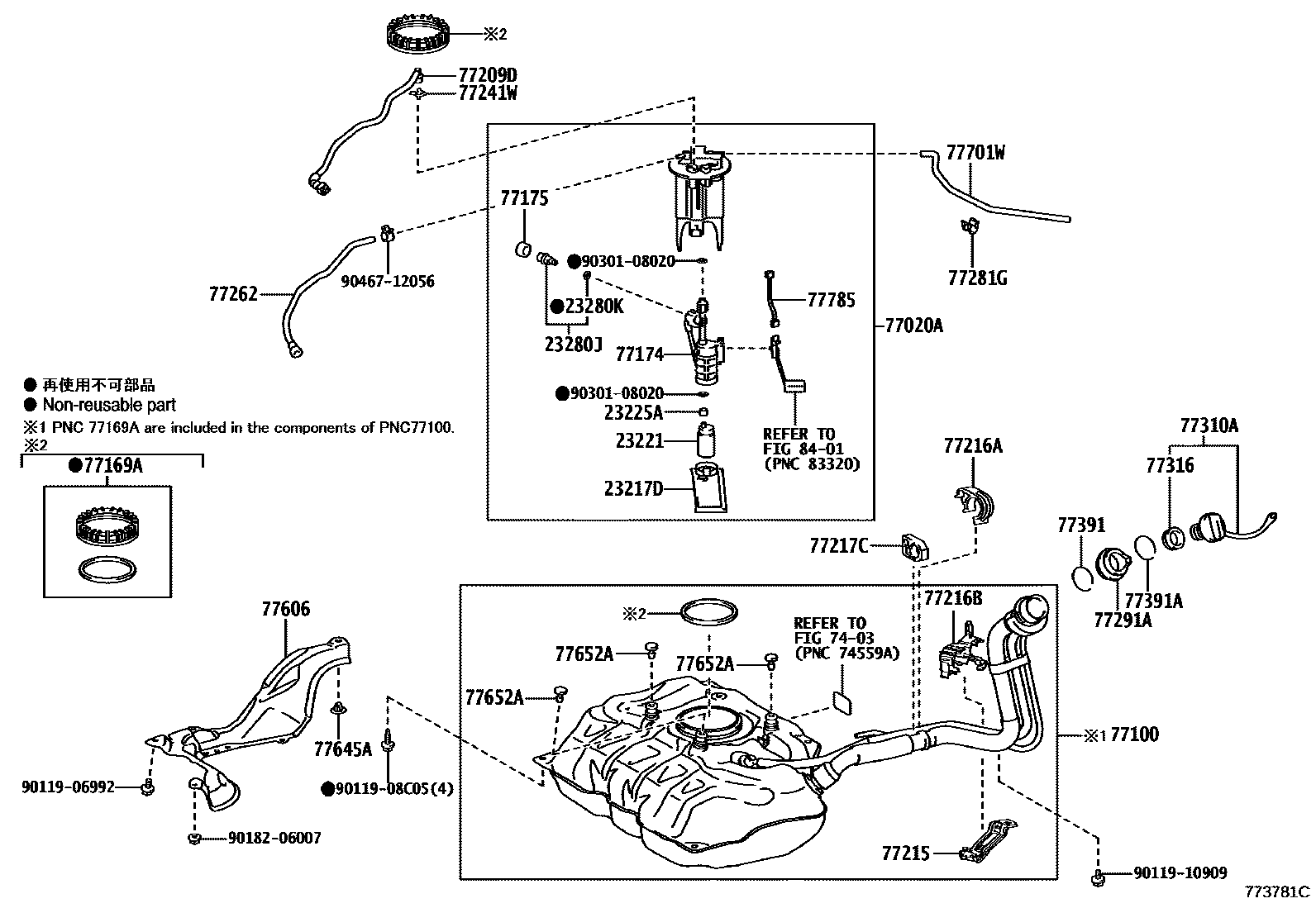

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
7403CAUTION PLATE (EXTERIOR & INTERIOR)
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77100TANK ASSY, FUEL
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77215PLATE, FUEL TANK FILLER PIPE FLANGE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77241WCLIP, TUBE JOINT
77262TUBE, FUEL EMISSION, NO.2
77281GCLAMP, FUEL HOSE
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77645ARETAINER, FUEL TANK PROTECTOR
77652ACUSHION, FUEL TANK, NO.2
77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
9011906992
main90119-06992
9011908C05
main90119-08C05
9011910909
main90119-10909
9018206007
main90182-06007
9030108020
main90301-08020
9046712056
main90467-12056
36 parts on this diagram · 3 diagrams in section
