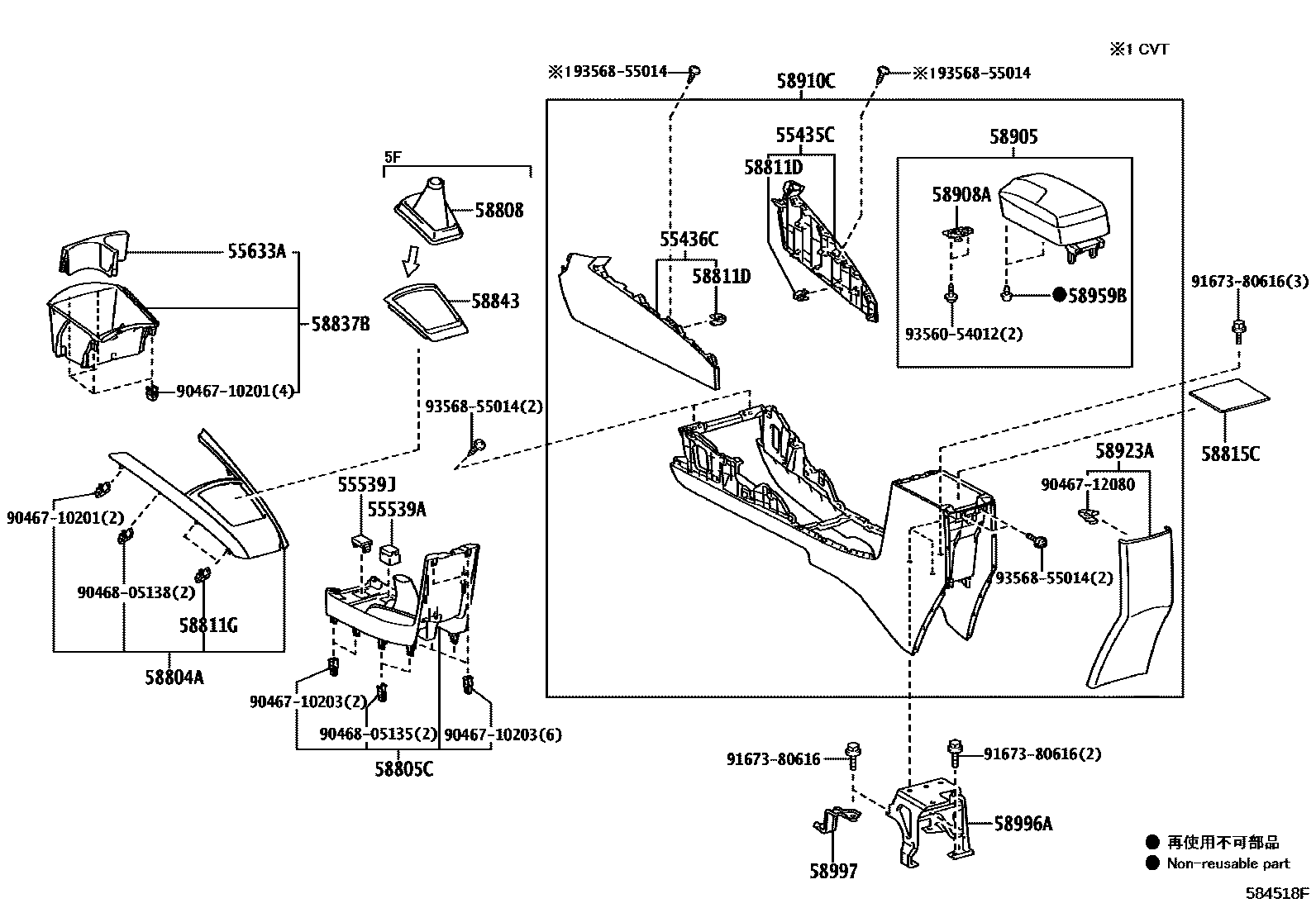

CONSOLE BOX & BRACKET

0001 1 0002 1

55435CPANEL, INSTRUMENT PANEL FINISH, END RH

main55435-12210-C0iNZE161201204-201908

BLACK,TRIM2#

55436CPANEL, INSTRUMENT PANEL FINISH, END LH

main55436-12180-C0iNZE161201204-201908

BLACK,TRIM2#

55539ACOVER, SPARE SWITCH HOLE

main55539-12230-C0iNZE161201204-201908

BLACK,TRIM2#

55539JCOVER, SPARE SWITCH HOLE

main55539-52060-C0iNZE161201204-201701

BLACK,TRIM2#

sub55539-52060

main55539-52060-C4iNZE161201701-201908

BLACK,TRIM2#

sub55539-52060

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-12140-C0iNZE161201204-201908

BLACK,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-12140-C1iNRE161..4D201212-201908

BLACK,TRIM2#

main58804-12160-C1iNRE161,NZE161..5D201204-201908

BLACK,TRIM2#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-12030-C1iNZE161201204-201908

BLACK,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12410-C0iNZE161..5F201204-201908

BLACK,TRIM2#

58811DCLIP(FOR CONSOLE BOX)

main90467-10201iNZE161201204-201908

58811GCLIP(CONSOL BOX)

main90467-10201iNZE161201204-201908

58815CCARPET, CONSOLE BOX

main58815-12230iNZE161201204-201908

58837BBOX, CONSOLE CUP HOLDER

main58837-12060-C0iNZE161201204-201908

BLACK,TRIM2#

58843BEZEL, SHIFTING HOLE

main58843-12240-C0iNZE161..CVT..N201206-201908

BLACK,TRIM2#

main58843-12250-B1iNZE161..E201212-201503

ORNAMENT SILVER,TRIM2#

main58843-12350-C0iNRE161..E201503-201710

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12870-C2iNRE161..E201503-201710

BLACK,TRIM2#

main58905-12880-C1iNZE161..CVT201206-201908

BLACK,TRIM2#

main58905-12A30-C0iNZE161201204-201908

BLACK,TRIM2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iNRE161,NZE161201204-201908

58910CBOX ASSY, CONSOLE, REAR

main58910-12870-C0iNRE161..N201206-201908

BLACK,TRIM2#

main58910-12890-C2iNRE161..E201503-201710

BLACK,TRIM2#

main58910-12A40-C0iNZE161201204-201908

BLACK,TRIM2#

58923APANEL, CONSOLE REAR END

main58923-12180-C0iNZE161201204-201908

BLACK,TRIM2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iNZE161201204-201908

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12250iNZE161201204-201908

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-52020iNZE161201204-201908

9046710201

main90467-10201

9046710203

main90467-10203

9046712080

main90467-12080

9046805135

main90468-05135

9046805138

main90468-05138

9167380616

main91673-80616

9356054012

main93560-54012

9356855014

main93568-55014

28 parts on this diagram · 2 diagrams in section
