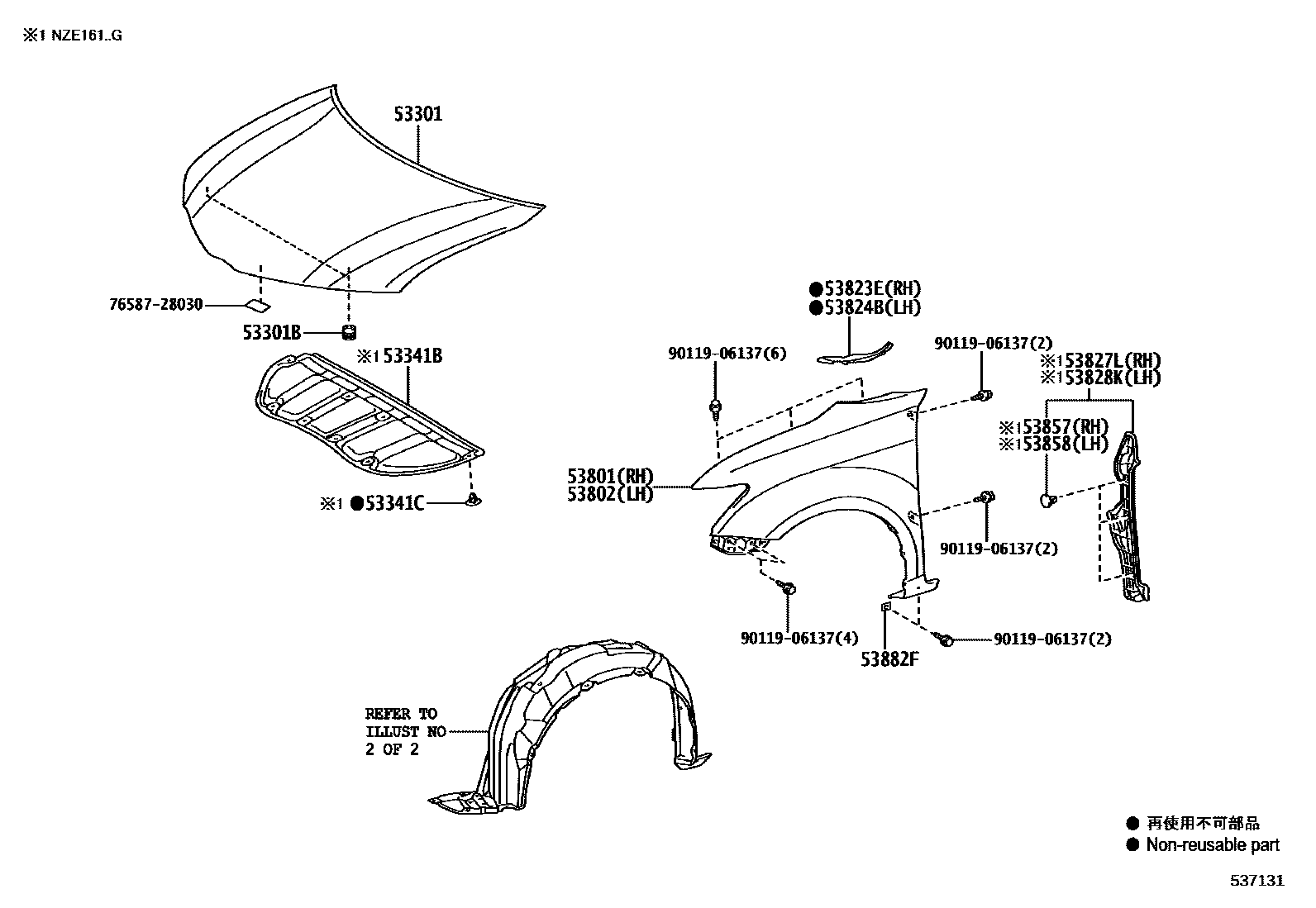

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER

53301HOOD SUB-ASSY

main53301-12B20iNZE161201204-201503

main53301-12B30iNRE161,NZE161201503-201710

53301BCUSHION, HOOD BUMPER

main90541-15037×2iNZE161201204-201503

main90541-15111×2iNRE161,NZE161201503-201710

53341BINSULATOR, HOOD

main53341-12320iNZE161..E201212-201407

main53341-12321iNZE161..E201408-201503

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×8iNZE161..E201212-201503

53801FENDER SUB-ASSY, FRONT RH

main53811-12B80iNZE161201204-201503

main53811-12B90iNRE161,NZE161201503-201710

53802FENDER SUB-ASSY, FRONT LH

main53812-12B80iNZE161201204-201503

main53812-12B90iNRE161,NZE161201503-201710

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-12020iNZE161201204-201503

main53823-12021iNRE161,NZE161201711-201908

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-12010iNZE161201204-201503

main53824-12011iNRE161,NZE161201712-201908

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12140iNZE161..E201212-201503

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12140iNZE161..E201212-201503

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011×3iNZE161..E201212-201503

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011×3iNZE161..E201212-201503

53882FSEAL, FRONT FENDER

main53882-16030×4iNZE161201204-201503

7658728030PROTECTOR, CENTER PILLAR OUTER GERNISH

main76587-28030

9011906137

main90119-06137

15 parts on this diagram · 4 diagrams in section
