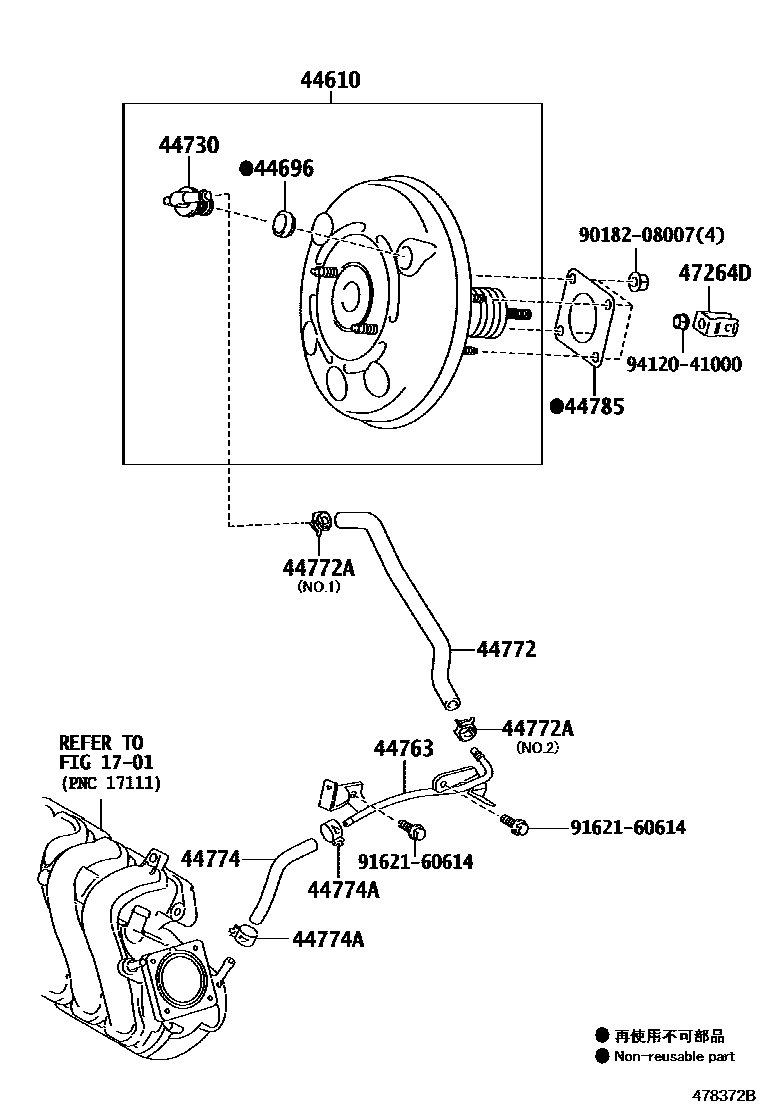

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-12K20iNZE161..4D201212-201503

main44610-12K30iNZE161..5D201204-201503

main44610-12L60iNRE161..4D201503-201710

main44610-12L70iNRE161..5D201503-201710

main44610-12N20iNZE161201710-201908

main44610-12N30iNRE161..4D201710-201908

main44610-12N40iNRE161..5D201710-201908

44696GROMMET, CHECK VALVE

main90480-24439iNRE161; NZE161201710-201908

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050×2iNRE161201506-201510

main44730-20170iNRE161201510-201710

UPPER

44763TUBE, BOOSTER VACUUM

main44763-52030iNZE161201204-201503

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52120iNZE161201503-201710

main44772-52220iNRE161201710-201908

NO.1:REFER ILLUST.

main44772-52230iNRE161201503-201710

NO.2:REFER ILLUST.

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNZE161201204-201209

NO.1

main96133-41500iNZE161201204-201209

NO.2

44774HOSE, UNION TO CONNECTOR TUBE

main44774-52070iNZE161201503-201710

main44774-52170iNRE161201503-201710

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iNRE161201503-201710

main96133-41500×2iNZE161201204-201501

main96136-41801×2iNZE161201503-201710

44785GASKET, BRAKE BOOSTER

main44785-16020iNRE161,NZE161201503-201710

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52040iNZE161201204-201503

9018208007

main90182-08007

9162160614

main91621-60614

9412041000

main94120-41000

14 parts on this diagram · 2 diagrams in section
