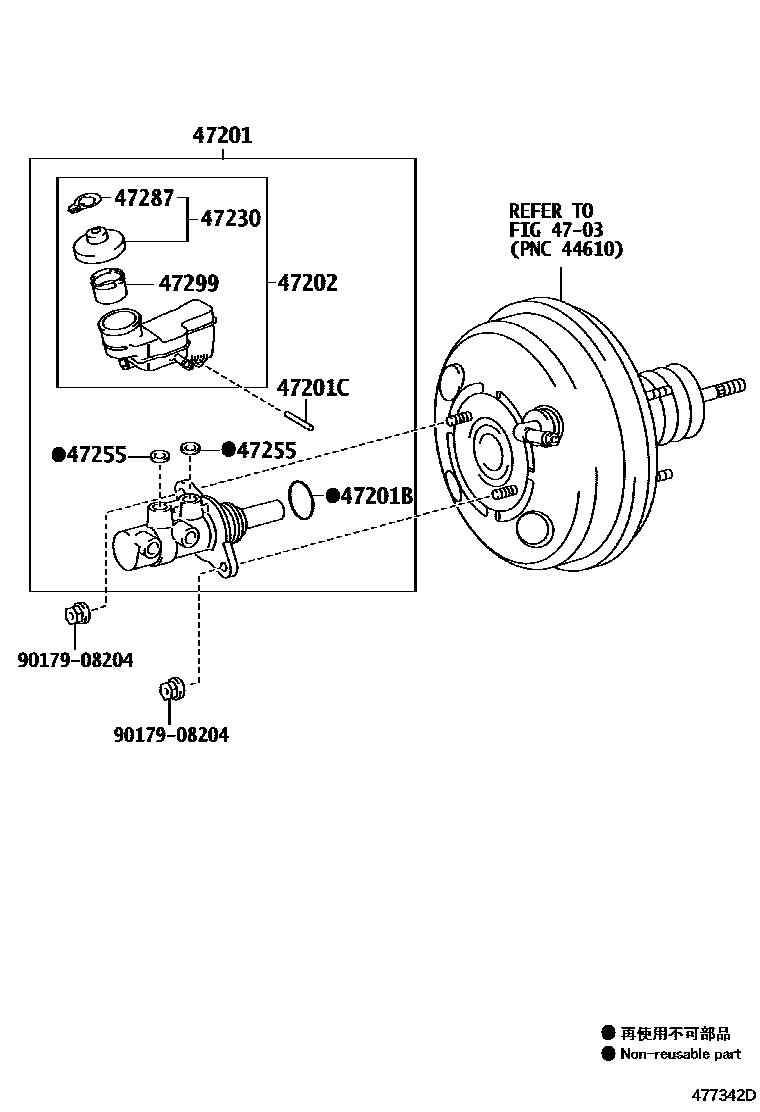

BRAKE MASTER CYLINDER

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52491iNZE161201204-201205

main47201-52492iNRE161,NZE161..5D201710-201908

main47201-52590iNRE161..4D201710-201908

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNZE161201204-201503

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNZE161201204-201503

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52260iNRE161,NZE161201503-201710

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNRE161,NZE161201503-201710

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iNZE161201204-201503

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNRE161,NZE161201710-201908

main47287-20010iNZE161201204-201503

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iNZE161201204-201503

9017908204

main90179-08204
