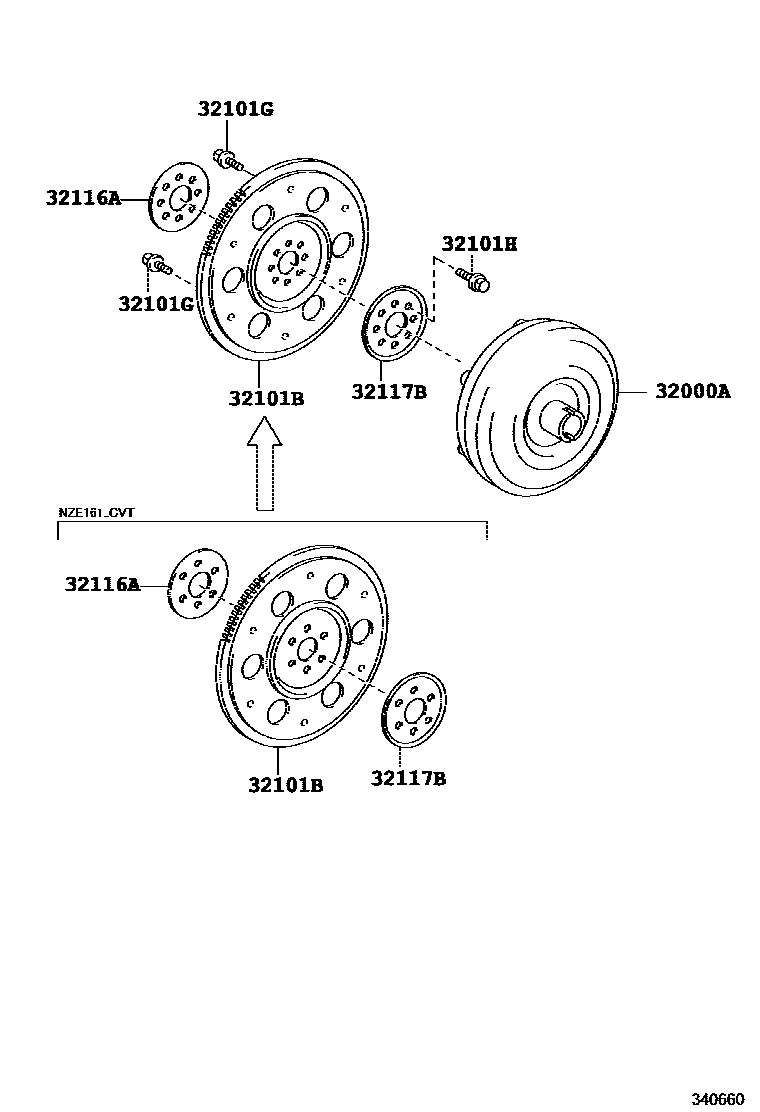

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12480iNZE161..CVT201206-201503

main32000-52190iNRE161201503-201710

main32000-52191iNRE161201904-201908

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52021iNZE161..CVT201206-201503

main32101-52090iNRE161201503-201710

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNRE161201710-201908

*8-1.25PX12-8.4,BLACK

main90119-08498×5iNRE161201503-201710

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iNZE161..CVT201206-201503

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNRE161201503-201710

main32116-52030iNZE161..CVT201206-201503

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNRE161201503-201710

main32117-52030iNZE161..CVT201206-201503

6 parts on this diagram · 1 diagram in section
