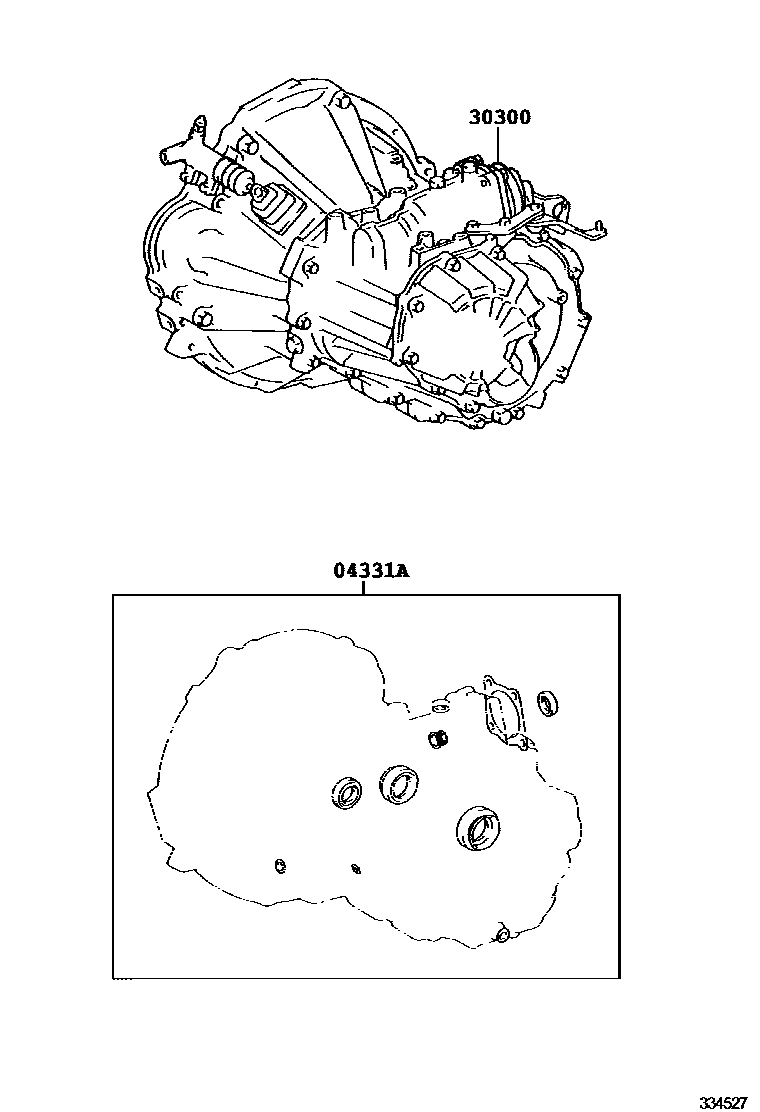

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12810i201204-201503

main04331-12860i201904-201908

30300TRANSAXLE ASSY, MANUAL

main30300-12C50i201204-201503

C51

main30300-12C51i201707-201710

C51

2 parts on this diagram · 1 diagram in section
