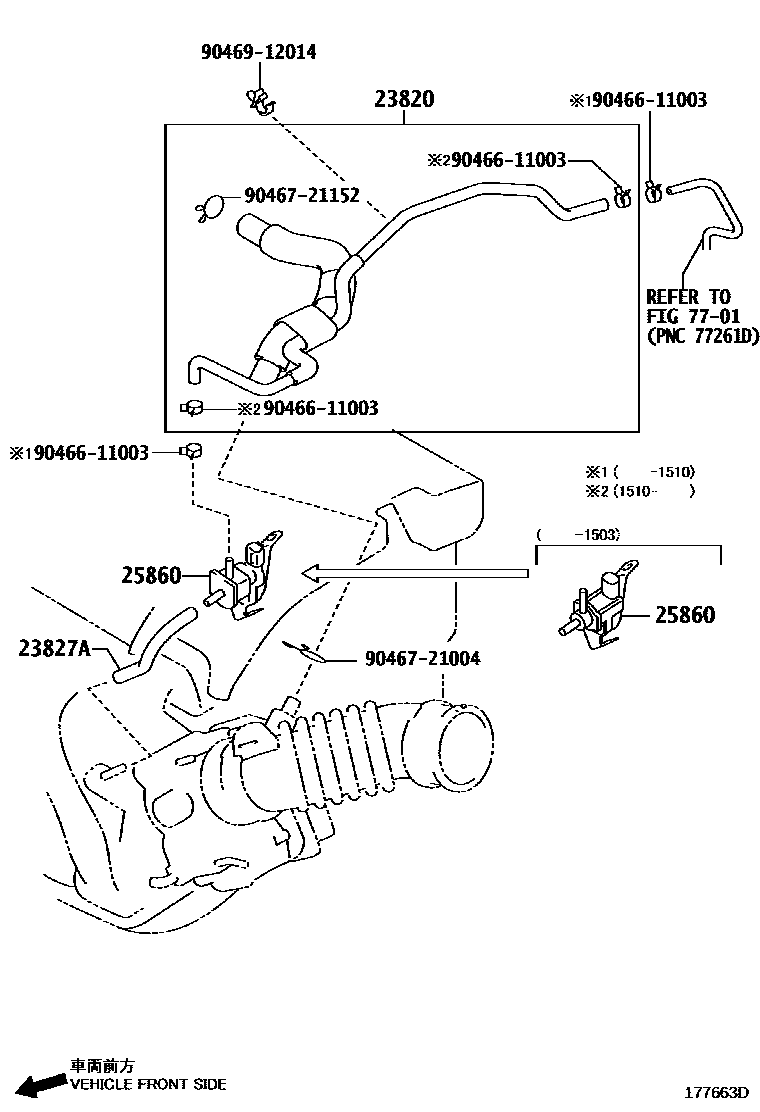

VACUUM PIPING

0001 1 0002 1 0003 1

23820HOSE ASSY, FUEL VAPOR FEED

main23820-21090i1NZFE..NZE161..5F201204-201503

main23820-21091i1NZFE..NZE161201710-201908

main23820-21190i1NZFE..NZE161..CVT201206-201502

main23820-47040i2NRFKE..NRE161201503-201710

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21150i1NZFE..NZE161201204-201503

main23827-47090i2NRFKE..NRE161201503-201710

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-21070i1NZFE..NZE161201204-201503

main25860-21150i1NZFE..NZE161201503-201710

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9046611003

main90466-11003

9046721004

main90467-21004

9046721152

main90467-21152

9046912014

main90469-12014

8 parts on this diagram · 3 diagrams in section
