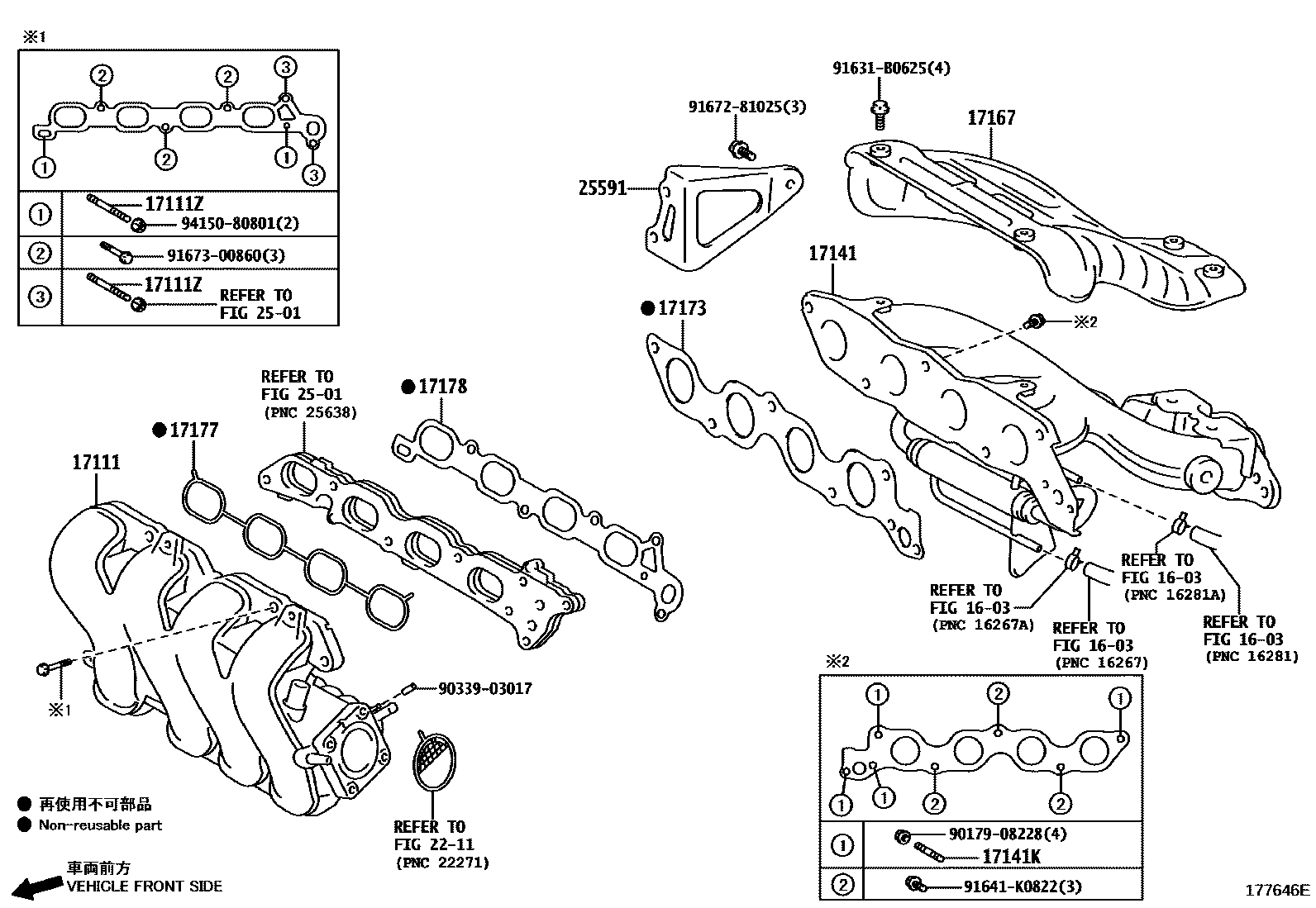

MANIFOLD

0001 1 0002 1 0003 1

1603

17111MANIFOLD, INTAKE

main17101-21071i1NZFE..NZE161201204-201908

main17120-47110i2NRFKE..NRE161201503-201908

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08049i1NZFE..NZE161201204-201908

main90126-08060i2NRFKE..NRE161201503-201908

17141MANIFOLD, EXHAUST

main17104-21041i1NZFE..NZE161..5F201204-201908

main17140-21120i1NZFE..NZE161..CVT201206-201503

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037i1NZFE..NZE161201204-201908

main90126-08063i2NRFKE..NRE161201503-201908

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21110i1NZFE..NZE161201204-201908

main17167-21180i1NZFE..NZE161..CVT201206-201402

sub17167-21181

main17167-21181i1NZFE..NZE161..CVT201403-201503

main17167-47011i2NRFKE..NRE161201503-201908

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21030i1NZFE..NZE161201204-201908

main17173-47021i2NRFKE..NRE161201503-201908

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21030i1NZFE..NZE161201204-201908

main17177-47011i2NRFKE..NRE161201503-201908

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-21010i1NZFE..NZE161201204-201908

2211

2501

25591BRACKET, MANIFOLD SUPPORT

main25591-21060i1NZFE..NZE161..5F201204-201908

main25591-21080i1NZFE..NZE161..CVT201206-201503

9017908228

main90179-08228

9033903017

main90339-03017

91631B0625

main91631-B0625

91641K0822

main91641-K0822

9167281025

main91672-81025

9167300860

main91673-00860

9415080801

main94150-80801

19 parts on this diagram · 3 diagrams in section
