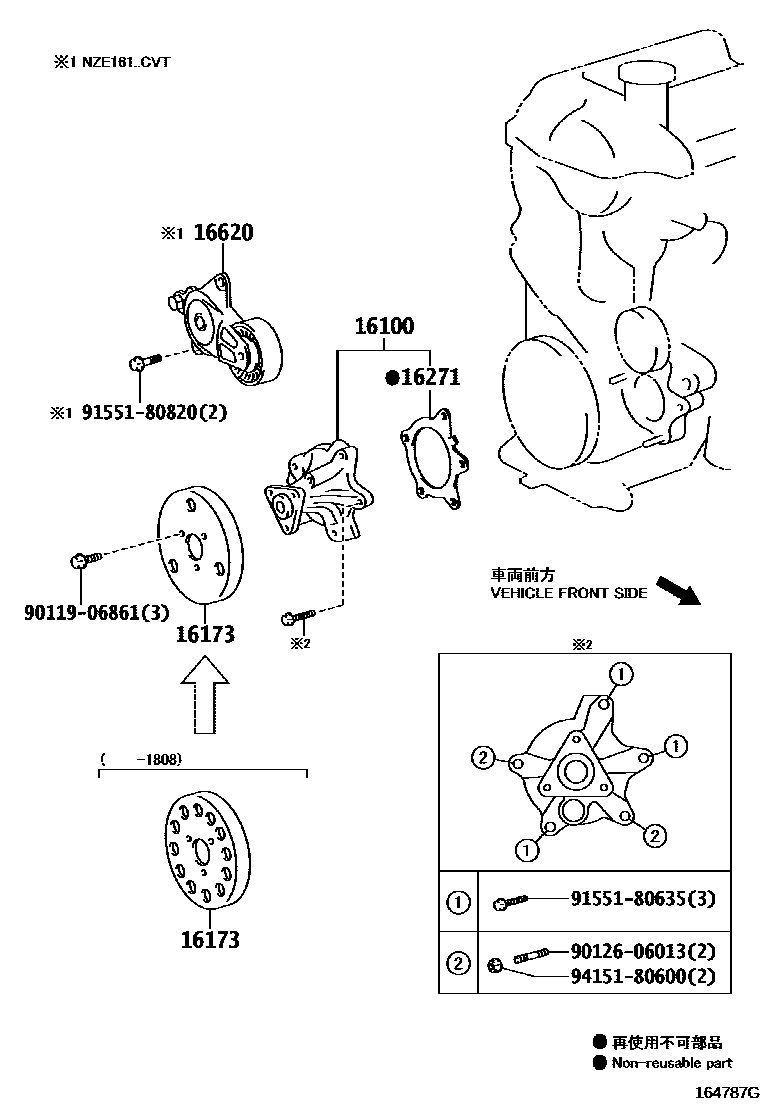

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-29157i1NZFE..NZE161201204-201503

main16100-29158i1NZFE..NZE161201812-201908

main16100-80013i2NRFKE..NRE161201710-201908

16173PULLEY, WATER PUMP

main16173-21020i1NZFE..NZE161201204-201503

main16173-21021i1NZFE..NZE161201808-201908

16271GASKET, WATER PUMP

main16271-0Y030i2NRFKE..NRE161201710-201908

main16271-21021i1NZFE..NZE161201710-201908

16620TENSIONER ASSY, V-RIBBED BELT

main16620-21010i1NZFE..NZE161..CVT201206-201503

main16620-47030i2NRFKE..NRE161201503-201710

9011906861

main90119-06861

9012606013

main90126-06013

9155180635

main91551-80635

9155180820

main91551-80820

9415180600

main94151-80600

9 parts on this diagram · 2 diagrams in section
