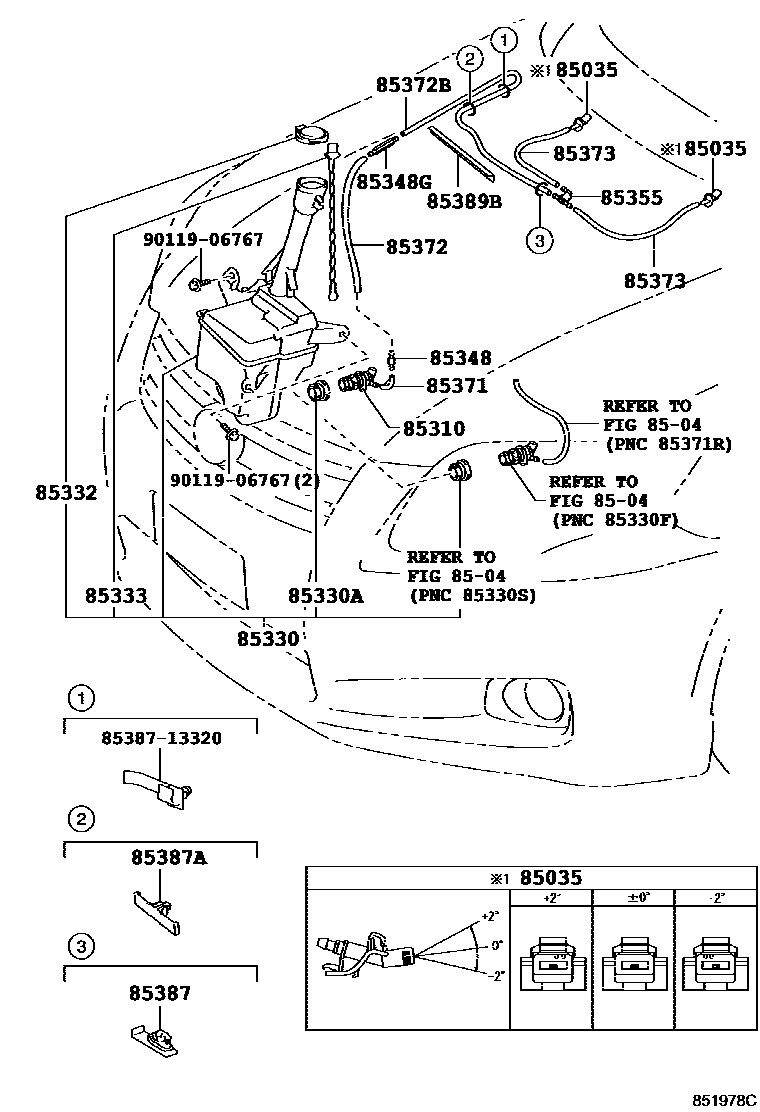

WINDSHIELD WASHER

0001 1W/O(HEADLAMP CLEANER) 0002 1W/O(HEADLAMP CLEANER) 0003 1W(HEADLAMP CLEANER)

85035NOZZLE SUB-ASSY, WASHER

main85381-12300iNZE141..N200704-200909

ANGLE 0

main85381-12310iNZE141..N200704-200909

ANGLE -2

main85381-12320iNZE141..N200704-200909

ANGLE +2

main85381-12350iCE140,NZE141,ZRE14#,ZZE142..SED200910-201007

ANGLE +2

main85381-30110iZZE141;ZZE142..GCC;ZZE142..RHD200910-201007

ANGLE -2

main85381-30110iCE140,NZE141,ZRE14#,ZZE142..SED201007

ANGLE 0,ANGLE -2

main85381-30150iZZE142..LHD..GEN;CE140,NZE141..SED200910-201007

ANGLE 0

main85381-30150iCE140,NZE141,ZRE14#,ZZE142..SED201007

ANGLE +2,ANGLE 0

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02030iNZE141..GLI200708-201301

main85330-21010iZZE141;ZZE142..GCC;ZZE142..RHD200704-201007

sub85330-0D100

85330JAR ASSY, WINDSHIELD WASHER

main85315-12600iZZE14#;CE140,NZE141..LX,XLI200708-201004

main85315-12640iZRE14#,ZZE142;CE140,NZE141..LX,XLI201004

main85315-13080iNZE141..N200704-200810

main85355-0W010iNZE141..GLI200708-201301

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iNZE141..N200704-200810

main90069-20005iNZE141..GLI200708-201301

85332CAP, WINDSHIELD WASHER JAR

main85316-33120iNZE141..N200704-200810

main85356-0W010iNZE141..GLI200708-201301

main85386-60050iZRE14#,ZZE142;CE140,NZE141..LX,XLI200708

85333FILTER, WINDSHIELD WASHER JAR

main85312-30080iNZE141..N200704-200810

main85312-48010iZZE14#;CE140,NZE141..LX,XLI200708-201004

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050iNZE141..GLI200708-201301

main85375-10260iZRE14#,ZZE142;CE140,NZE141..LX,XLI200704-201007

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-32150iNZE141..N200704-200810

main85349-89122iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iNZE141..N200704-201007

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85355-14481iNZE141..N200704-200810

main90069-16009iNZE141..GLI200708-201301

main90099-33080iZZE142..LHD..GEN;CE140,NZE141..LX,XLI200708-201007

L=1450(*H,L=80)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

L=1450(*H,L=80)

main90099-33803iNZE141..GLI201007-201301

L=1930

main90099-62040iNZE141..GLI200708-201007

L=1930

sub90099-33803

main90446-07001iNZE141..N200704-200810

L=1800(*H,L=910)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iNZE141..GLI200708-201301

L=1450(*H,L=510)

main90099-59347iZZE142..LHD..GEN;CE140,NZE141..LX,XLI200708-201007

L=510

main90446-07001iNZE141..N200704-200810

L=1800(*H,L=1100)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNZE141..N200704-200810

L=1450(*H,L=360)

main90099-33080iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

L=1450(*H,L=190)

main90099-33080iNZE141..N200810

L=1450(*H,L=390)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090iNZE141..N200704-200810

main85387-12840iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

85387ACLAMP, WASHER, NO.2

main82711-34040iNZE141..N200704-200810

main82711-3A540iCE140,NZE141,ZZE14#..SED200708-201003

main85371-12040iZZE142..LHD..GEN;CE140,NZE141..SED201003-201007

85389BPROTECTOR, WINDSHIELD WASHER

main85389-12880iNZE141..N200704-200810

8538713320CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-13320

9011906767

main90119-06767

19 parts on this diagram · 3 diagrams in section
