REAR WIPER

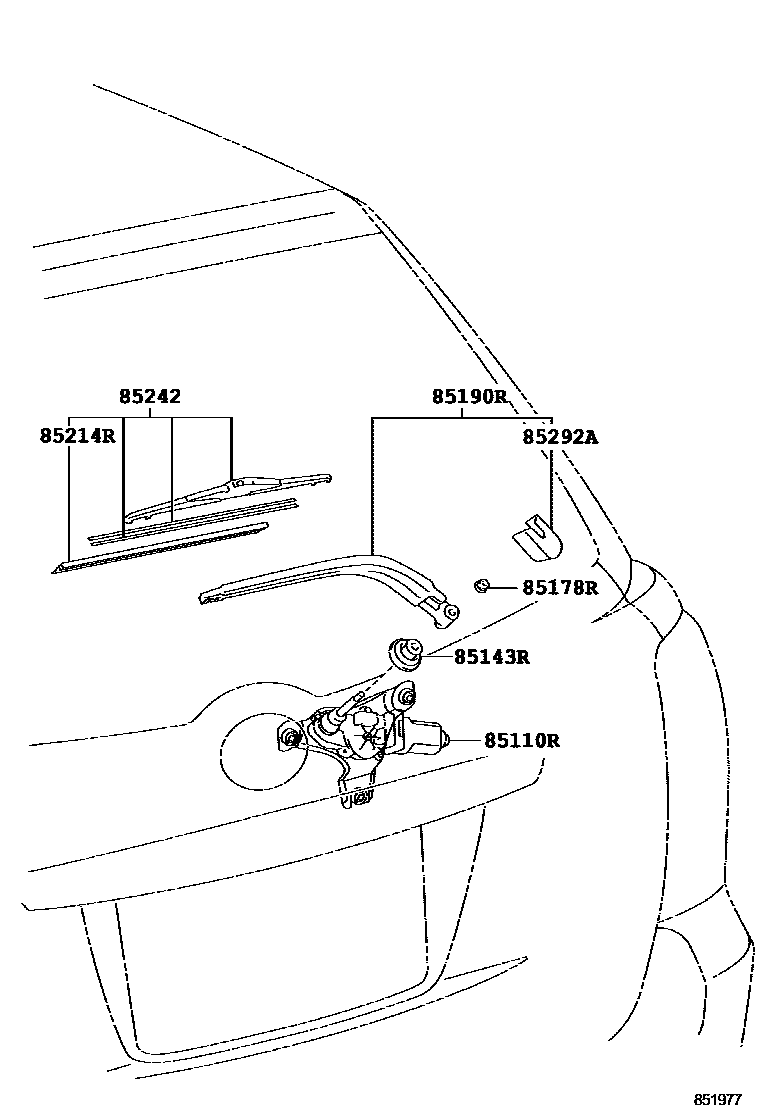

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-13160i200704-200810

85143RGROMMET, REAR WIPER MOTOR

main85143-52020i200704-200810

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158i200704-200810

85190RARM ASSY, REAR WIPER

main85241-13090i200704-200810

85214RRUBBER, REAR WIPER

main85214-31010i200704-200810

85242BLADE, RR WIPER

main85242-13090i200704-200810

85292ACAP, REAR WIPER ARM HEAD

main85292-42010i200704-200810

7 parts on this diagram · 1 diagram in section
