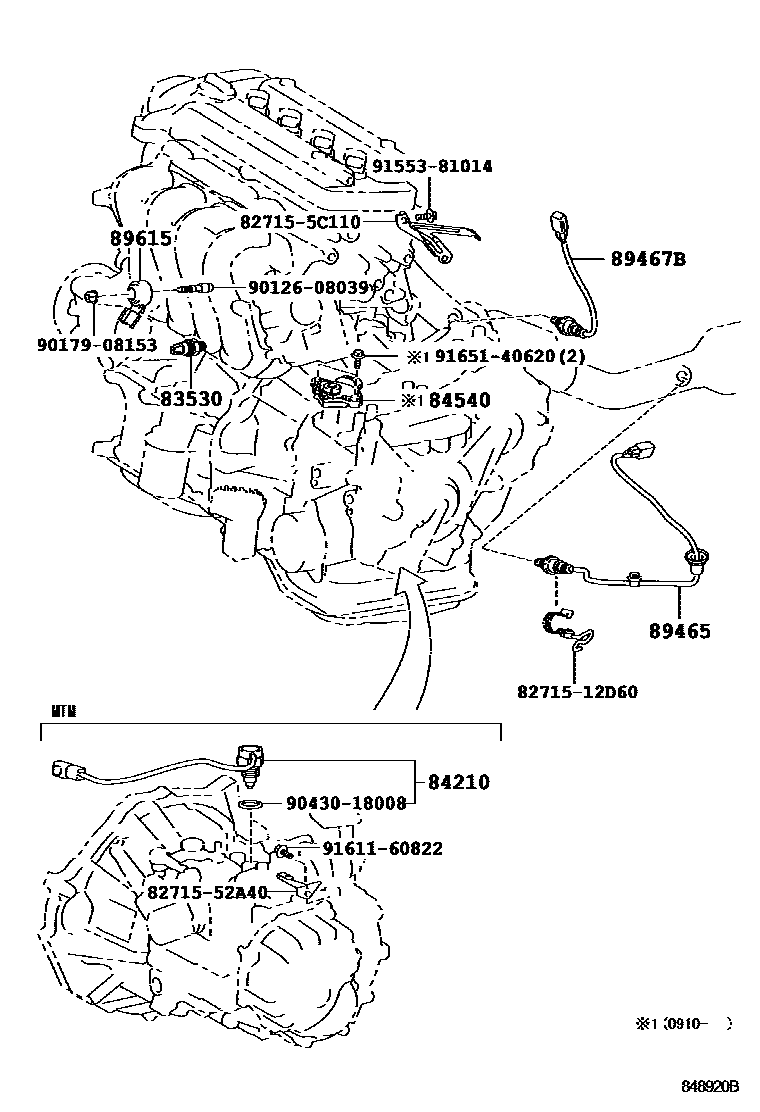

Toyota COROLLA SED/WG151 — SWITCH & RELAY & COMPUTER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
89467BSENSOR, AIR FUEL RATIO
89615SENSOR, KNOCK CONTROL
8271512D60BRACKET,WIRING HARNESS CLAMP
8271552A40BRACKET,WIRING HARNESS CLAMP
827155C110BRACKET,WIRING HARNESS CLAMP
9012608039
9017908153
9043018008
9155381014
9161160822
9165140620
15 parts on this diagram · 19 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota COROLLA SED/WG151
This section contains 127 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota COROLLA SED/WG151. Key components include: RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, TIMER ASSY, PREHEATING, RELAY ASSY, INTAKE HEATER OR GLOW PLUG, SENSOR ASSY, BATTERY CURRENT.
