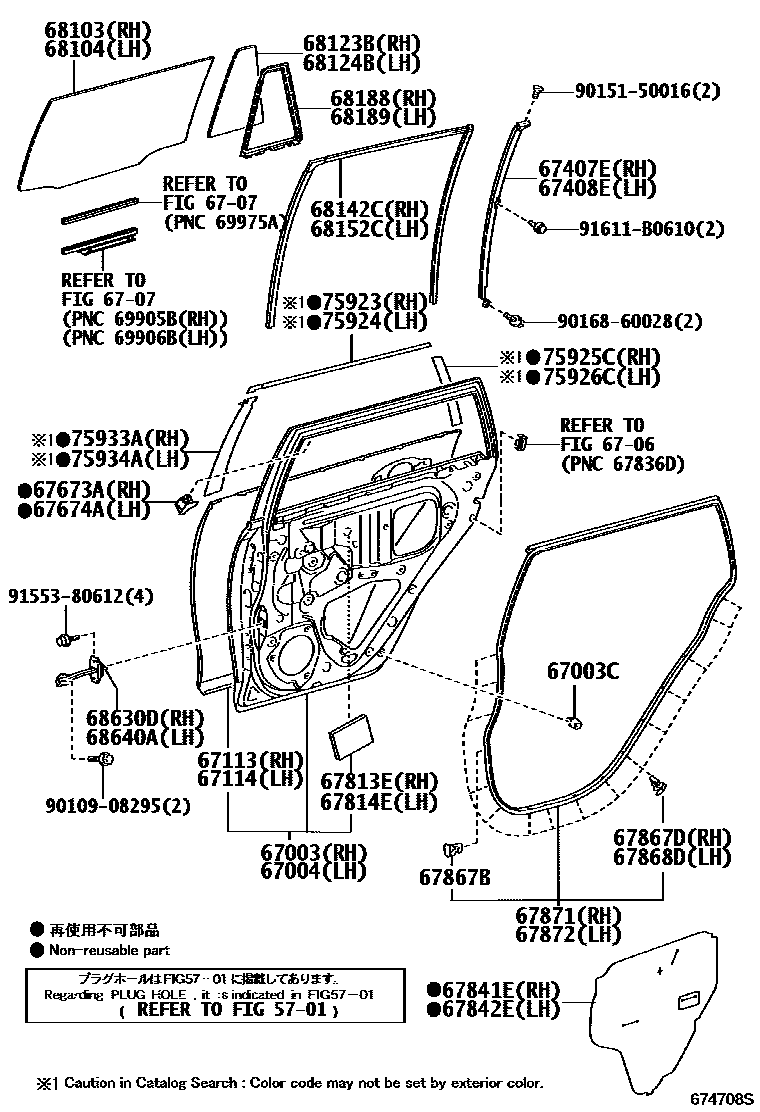

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM 0004 1DOOR TRIM

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12A20iZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN200708-201007

POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)

main67003-12A21iZZE141..GLI,LX;NZE141,ZZE142..GLI..GEN200812-200901

POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)

sub67003-12A20

main67003-12A60iZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN200708-201007

main67003-12A61iZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN200812-200901

sub67003-12A60

main67003-13320iNZE141..N200704-201204

main67003-13321iNZE141..N201110-201202

sub67003-13320

sub90950-01841

67003CCUSHION, REAR DOOR PANEL

main90541-09124iCE140,NZE141,ZZE14#..SED200704-200808

main90541-09143iZZE141;ZZE142..GCC;ZZE142..RHD200808-201007

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12A20iZRE141..GLI,LX;NZE141,ZRE142,ZZE142..GLI..GEN200708-201007

POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)

main67004-12A21iZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN200812-200901

POWER WINDOW-WITH(DRIVER ONE TOUCH UP/DOWN)

sub67004-12A20

main67004-12A60iZZE141..XLI;ZZE142..GCC;ZZE142..RHD..XLI200708-201007

main67004-12A61iZZE141..XLI;ZZE142..GCC;CE140,NZE141,ZZE142..(LX,XLI)..GEN200812-200901

sub67004-12A60

main67004-13320iNZE141..N200704-201204

main67004-13321iNZE141..N201110-201202

sub67004-13320

sub90950-01841

6706

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-12310iZZE141;ZZE142..GCC;ZZE142..RHD200708-201403

main67113-12320iNZE141..N200704-201204

67114PANEL, REAR DOOR, OUTER LH

main67114-12300iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main67114-12310iNZE141..N200704-201204

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12290iCE140,NZE141,ZRE14#,ZZE142..SED200708-201007

main67407-13090iNZE141..N200704-200810

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12290iCE140,NZE141,ZRE14#,ZZE142..SED200708-201007

main67408-13090iNZE141..N200704-200810

67673AGARNISH, REAR DOOR FRAME, RH

main67673-48010iZZE141;ZZE142..GCC;ZZE142..RHD200704-201007

67674AGARNISH, REAR DOOR FRAME, LH

main67674-48010iNZE141..N200704-201007

67813ESHEET, QUARTER PANEL SILENCER, RH

main67817-47010iZZE142..LHD..GEN;CE140,NZE141..SED200704-201007

67814ESHEET, QUARTER PANEL SILENCER, LH

main67817-47010iNZE141..N200704-201007

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-12360iCE140,NZE141,ZRE14#,ZZE142..SED200708-201007

main67841-12370iNZE141..N200704-200810

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-12170iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

main67842-12180iNZE141..N200704-200810

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main90467-04034iNZE141..N200704-200810

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iZZE142..LHD..GEN;CE140,NZE141..SED200704-201007

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iNZE141..N200704-200810

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12530iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

main67871-13170iNZE141..N200704-200810

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12530iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main67872-13160iNZE141..N200704-200810

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12770iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

*UVCT,T=3.5,GREEN

main68113-13320iNZE141..N200704-201204

*UVCT,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12770iCE140,NZE141,ZZE14#..SED200708-201403

*UVCT,T=3.5,GREEN

main68114-13320iNZE141..N200704-201204

*UVCT,T=3.1,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-12800iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

*UVCT,T=3.5,GREEN

main68123-13300iNZE141..N200704-200810

*UVCT,T=3.1,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-12800iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

*UVCT,T=3.5,GREEN

main68124-13290iNZE141..N200704-200810

*UVCT,T=3.1,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-12290iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main68142-13180iNZE141..N200704-200810

68152CRUN, REAR DOOR GLASS, LH

main68152-12200iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

main68152-13140iNZE141..N200704-200810

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12330iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

main68188-13120iNZE141..N200704-200810

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12330iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

main68189-13120iNZE141..N200704-200810

68630DCHECK ASSY, REAR DOOR, RH

main68630-12130iCE140,NZE141,ZZE14#..SED200708-201004

main68630-12131iCE140,NZE141,ZRE14#,ZZE142..SED201004-201007

main68630-12140iNZE141..N200704-201005

main68630-12141iNZE141..N201005

68640ACHECK ASSY, REAR DOOR, LH

main68630-12130iCE140,NZE141,ZZE14#..SED200708-201004

main68630-12131iCE140,NZE141,ZRE14#,ZZE142..SED201004-201007

main68630-12140iNZE141..N200704-201005

main68630-12141iNZE141..N201005

75923TAPE, BLACK OUT, NO.2 RH

main75923-12060iZZE14#..XLI..GCC200708-201007

BLACK OUT-WITH(DOOR SASH),0 OR 1PIECE,REF.ILL.

main75923-12060iZZE142..GLI;ZZE142..XLI..GEN;CE140,NZE141,ZZE141..SED..GEN200708-201403

0 OR 1PIECE,REF.ILL.

main75923-13051iNZE141..N200704-201204

0 OR 1PIECE,REF.ILL.

75924TAPE, BLACK OUT, NO.2 LH

main75924-12060iZZE14#..XLI..GCC200708-201403

0 OR 1PIECE,REF.ILL.

main75924-12060iZZE142..GLI;ZZE142..XLI..GEN;CE140,NZE141,ZZE141..SED..GEN200708-201007

BLACK OUT-WITH(DOOR SASH),0 OR 1PIECE,REF.ILL.

main75924-13051iNZE141..N200704-201204

0 OR 1PIECE,REF.ILL.

75925CTAPE, BLACK OUT, NO.3 RH

main75925-13040iNZE141..N200704-201204

0 OR 1PIECE,REF.ILL.

75926CTAPE, BLACK OUT, NO.3 LH

main75926-13040iNZE141..N200704-201204

0 OR 1PIECE,REF.ILL.

75933ATAPE, BLACK OUT, NO.5 RH

main75935-13010iNZE141..N200704-201204

0 OR 1PIECE,REF.ILL.

75934ATAPE, BLACK OUT, NO.5 LH

main75936-13010iNZE141..N200704-201204

0 OR 1PIECE,REF.ILL.

9010908295

main90109-08295

9015150016

main90151-50016

9016860028

main90168-60028

9155380612

main91553-80612

91611B0610

main91611-B0610

42 parts on this diagram · 4 diagrams in section
