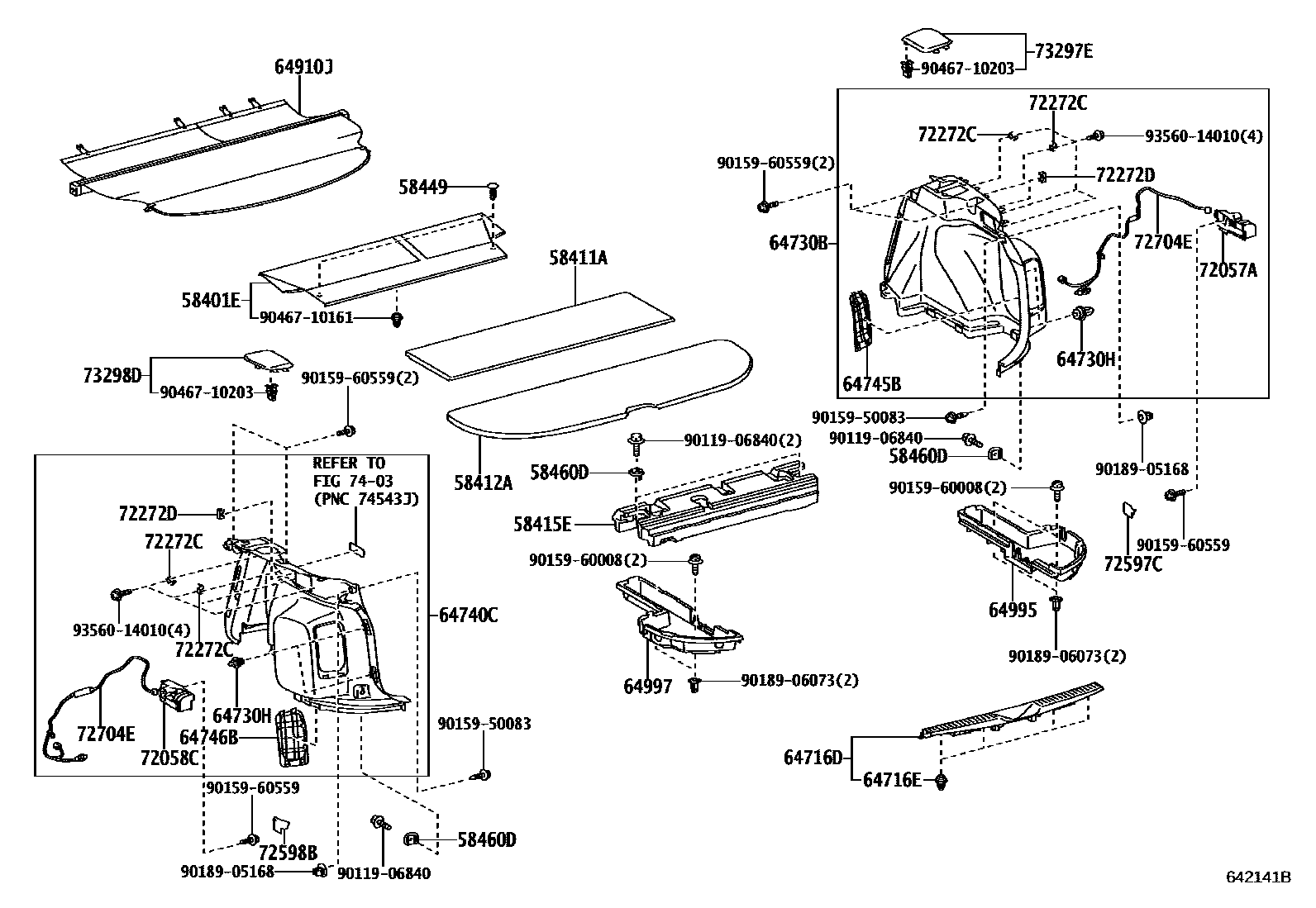

DECK BOARD & DECK TRIM COVER
58401EBOARD SUB-ASSY, DECK
GRAY,TRIM1#
GREGE,TRIM4#
58411ABOARD, DECK, NO.1
GRAY,TRIM1#
GREGE,TRIM4#
58412ABOARD, DECK, NO.2
GRAY,TRIM1#
GREGE,TRIM4#
58415EBOARD, REAR FLOOR, NO.1
58449CLIP, DECK BOARD
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
64716DCOVER, DECK TRIM, REAR
DK.GRAY,TRIM1#
GREGE,TRIM4#
64716ECLIP(FOR DECK TRIM REAR COVER)
64730BPANEL ASSY, DECK TRIM SIDE, RH
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64740CPANEL ASSY, DECK TRIM SIDE, LH
ASH BROWN,TRIM4#
sub64740-13910
sub72058-13010
sub72272-13010
sub72272-13020
sub72704-13050
sub93560-14010
64745BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, RH
64746BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, LH
64910JCOVER ASSY, TONNEAU
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
72057ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
72058CLEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
72272CCLAMP, SEAT TRACK CONTROL CABLE
72272DCLAMP, SEAT TRACK CONTROL CABLE, NO.2
72597CBEZEL, RECLINING REMOTE CONTROL LEVER, RH
72598BBEZEL, RECLINING REMOTE CONTROL LEVER, LH
72704ECABLE, REAR SEAT RECLINING CONTROL
73297ECOVER, DECK TRIM SIDE BELT HOLE, RH
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
73298DCOVER,DECK TRIM SIDE BELT HOLE, LH
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
7403
9011906840
main90119-06840
9015950083
main90159-50083
9015960008
main90159-60008
9015960559
main90159-60559
9018905168
main90189-05168
9018906073
main90189-06073
9046710161
main90467-10161
9046710203
main90467-10203
9356014010
main93560-14010
35 parts on this diagram · 1 diagram in section
