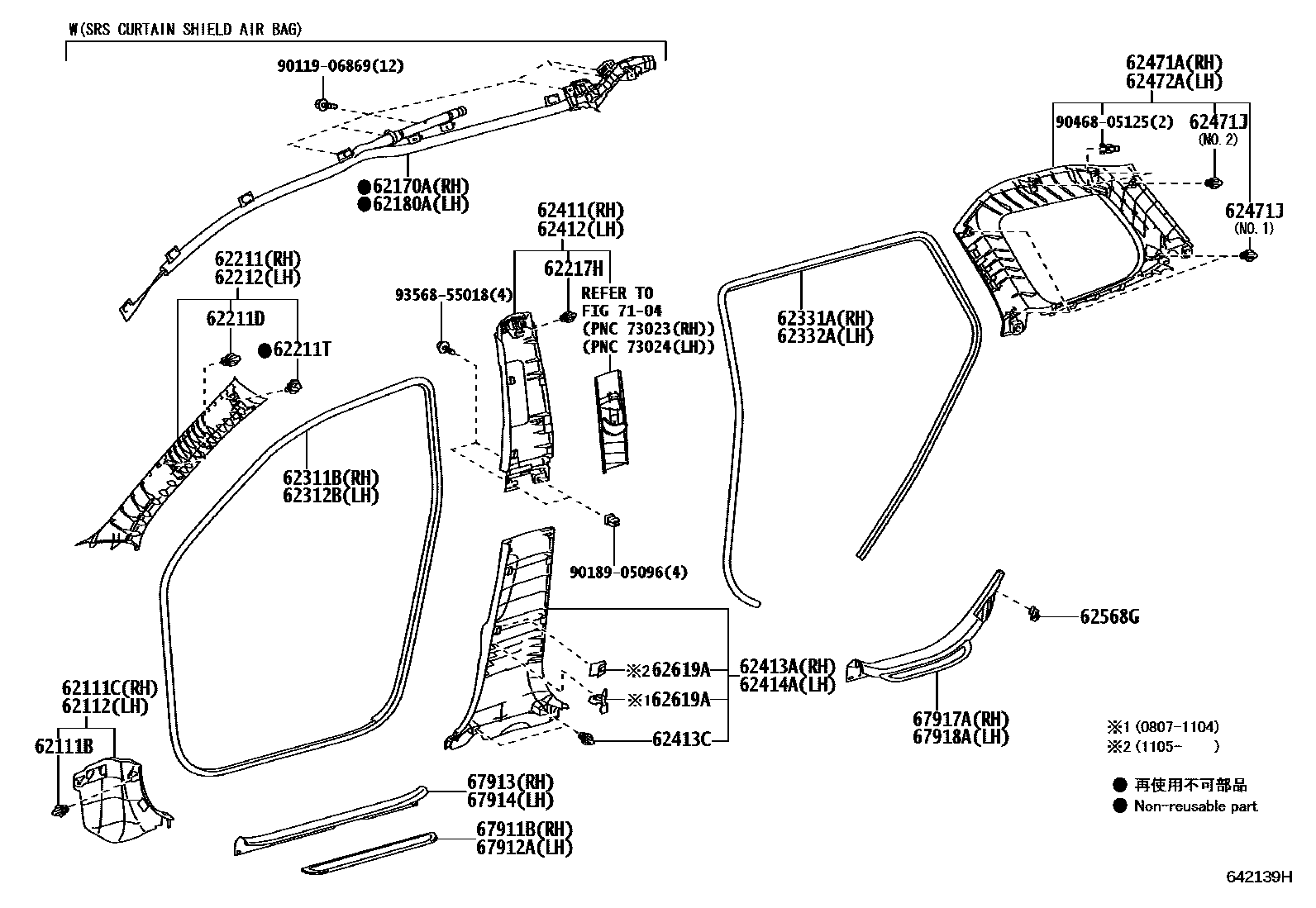

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iNZE141..N200704-201007

62111CBOARD, COWL SIDE TRIM, RH

main62111-12310-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main62111-12310-E1iNZE141..5F200704-201204

GREGE,TRIM4#

main62111-12320-B1iCE140,NZE141,ZZE14#..SED200708-201403

GRAY,TRIM1#

main62111-12320-E0iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-12340-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main62112-12340-E1iNZE141..5F200704-201204

GREGE,TRIM4#

main62112-12350-B1iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GRAY,TRIM1#

main62112-12350-E0iCE140,NZE141,ZZE14#..SED200708-201403

GREGE,TRIM4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

62211GARNISH, FRONT PILLAR, RH

main62211-12420-B0iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

LT.GRAY,TRIM1#

main62211-12420-E0iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GREGE,TRIM4#

main62211-12430-B0iNZE141..N200704-201204

LT.GRAY,TRIM1#

main62211-12430-E0iNZE141..5F200704-201204

GREGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iNZE141..N200704-201007

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-52010iNZE141..N200704-200810

62212GARNISH, FRONT PILLAR, LH

main62212-12420-B0iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

LT.GRAY,TRIM1#

main62212-12420-E0iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GREGE,TRIM4#

main62212-12430-B0iNZE141..N200704-201204

LT.GRAY,TRIM1#

main62212-12430-E0iNZE141..N200704-201204

GREGE,TRIM4#

62217HCLIP, CENTER PILLER GARNISH

main62217-13010iNZE141..N200704-200810

main90467-10167iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12210-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main62311-12210-E1iNZE141..N200704-200810

GREGE,TRIM4#

main62311-12230-B1iCE140,NZE141,ZZE14#..SED200708-201403

GRAY,TRIM1#

main62311-12230-E0iCE140,NZE141,ZZE14#..SED200708-201403

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12210-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main62312-12210-E1iNZE141..N200704-200810

GREGE,TRIM4#

main62312-12230-B1iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GRAY,TRIM1#

main62312-12230-E0iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-12250-B1iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GRAY,TRIM1#

main62331-12250-E0iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GREGE,TRIM4#

main62331-13060-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

sub62331-13060

main62331-13060-E1iNZE141..N200704-200810

GREGE,TRIM4#

sub62331-13060

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-12250-B1iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GRAY,TRIM1#

main62332-12250-E0iCE140,NZE141,ZZE14#..SED200708-201403

GREGE,TRIM4#

main62332-13060-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

sub62332-13060

main62332-13060-E1iNZE141..N200704-200810

GREGE,TRIM4#

sub62332-13060

62411GARNISH, CENTER PILLAR, RH

main62410-12060-B0iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

LT.GRAY,TRIM1#

main62410-12060-E0iCE140,NZE141,ZZE14#..SED200708-201403

GREGE,TRIM4#

main62410-12070-B0iNZE141..N200704-200807

LT.GRAY,TRIM1#

sub62410-12071

main62410-12070-E0iNZE141..N200704-200807

GREGE,TRIM4#

sub62410-12071

main62410-12071-B0iNZE141..N200808-201204

LT.GRAY,TRIM1#

main62410-12071-E0iNZE141..N200808-200810

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-12060-B0iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

LT.GRAY,TRIM1#

main62420-12060-E0iCE140,NZE141,ZZE14#..SED200708-201403

GREGE,TRIM4#

main62420-12070-B0iNZE141..N200704-200807

LT.GRAY,TRIM1#

sub62420-12071

main62420-12070-E0iNZE141..N200704-200807

GREGE,TRIM4#

sub62420-12071

main62420-12071-B0iNZE141..N200808-201204

LT.GRAY,TRIM1#

main62420-12071-E0iNZE141..N200808-200810

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12260-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main62413-12260-E1iNZE141..N200704-201204

GREGE,TRIM4#

main62413-12280-B1iCE140,NZE141,ZZE14#..SED200708-201403

GRAY,TRIM1#

main62413-12280-E0iCE140,NZE141,ZZE14#..SED200708-201403

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main62217-13010iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main90467-10161iNZE141..N200704-200810

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12260-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main62414-12260-E1iNZE141..5F200704-201204

GREGE,TRIM4#

main62414-12280-B1iCE140,NZE141,ZZE14#..SED200708-201403

GRAY,TRIM1#

main62414-12280-E0iCE140,NZE141,ZZE14#..SED200708-201403

GREGE,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-13080-B0iNZE141..N200704-201204

LT.GRAY,TRIM1#

main62470-13080-E0iNZE141..N200704-200810

GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iNZE141..N200704-200810

NO.1

main90467-10167iNZE141..N200704-200810

NO.2

main90467-10188iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

62472AGARNISH, ROOF SIDE, INNER LH

main62480-13080-B0iNZE141..N200704-201204

LT.GRAY,TRIM1#

main62480-13080-E0iNZE141..N200704-200810

GREGE,TRIM4#

62568GCLAMP, ROCKER PANEL INNER PROTECTOR, NO.3

main62568-13040iNZE141..N200704-200810

62619APLATE, SIDE TRIM SET

main62591-12050iNZE141..N201105

RH

main62592-12050iNZE141..N201105

LH

main62675-68010iNZE141..N200807-201104

sub62591-12050

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-12110-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main67911-12110-E1iNZE141..N200704-200810

GREGE,TRIM4#

main67911-12120-B1iCE140,NZE141,ZZE14#..SED200708-201403

GRAY,TRIM1#

main67911-12120-E0iCE140,NZE141,ZZE14#..SED200708-201403

GREGE,TRIM4#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-12110-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main67911-12110-E1iNZE141..N200704-200810

GREGE,TRIM4#

main67911-12120-B1iCE140,NZE141,ZZE14#..SED200708-201403

GRAY,TRIM1#

main67911-12120-E0iCE140,NZE141,ZZE14#..SED200708-201403

GREGE,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12300-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main67913-12300-E1iNZE141..N200704-200810

GREGE,TRIM4#

main67913-12310-B1iCE140,NZE141,ZZE14#..SED200708-201403

GRAY,TRIM1#

main67913-12310-E0iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GREGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12260-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main67914-12260-E1iNZE141..N200704-200810

GREGE,TRIM4#

main67914-12270-B1iCE140,NZE141,ZZE14#..SED200708-201403

GRAY,TRIM1#

main67914-12270-E0iCE140,NZE141,ZZE14#..SED200708-201403

GREGE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12160-B1iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GRAY,TRIM1#

main67917-12160-E0iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

GREGE,TRIM4#

main67917-13090-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main67917-13090-E1iNZE141..N200704-200810

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12150-B1iCE140,NZE141,ZZE14#..SED200708-201403

GRAY,TRIM1#

main67918-12150-E0iCE140,NZE141,ZZE14#..SED200708-201403

GREGE,TRIM4#

main67918-13090-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main67918-13090-E1iNZE141..N200704-200810

GREGE,TRIM4#

7104

9011906869

main90119-06869

9018905096

main90189-05096

9046805125

main90468-05125

9356855018

main93568-55018

35 parts on this diagram · 2 diagrams in section
