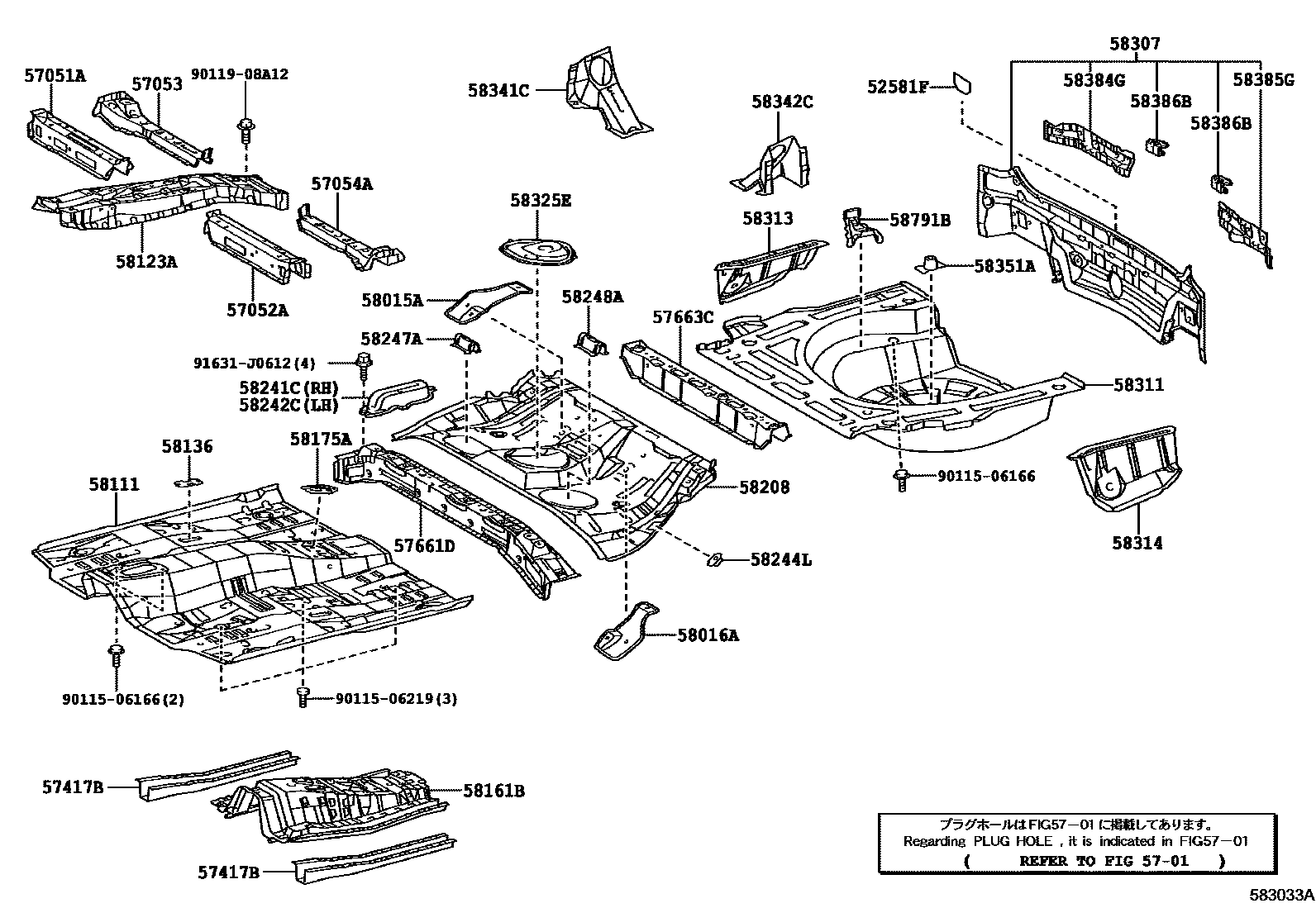

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

52581FPROTECTOR, REAR BUMPER

main52581-13030iNZE141..N200704-201403

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-12070iCE140,NZE141,ZZE14#..SED200704-200711

sub57051-12071

main57051-12071iNZE141..N200712-201007

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-12020iNZE141..N200704-200711

sub57052-12021

main57052-12021iZZE141;ZZE142..GCC;ZZE142..RHD200712-201007

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-12020iZZE141;ZZE142..GCC;ZZE142..RHD200704-201007

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-12020iZZE142..LHD..GEN;CE140,NZE141..SED200704-201007

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-12120iCE140,NZE141,ZRE14#,ZZE142..SED200704-201007

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-12150iCE140,NZE141,ZZE14#..SED200708-200709

sub57407-12151

main57407-12151iCE140,NZE141,ZZE14#..SED200710-200711

sub57407-12152

main57407-12152iCE140,NZE141,ZRE14#,ZZE142..SED200711-201007

main57407-13140iNZE141..N200704-200710

sub57407-13141

main57407-13141iNZE141..N200711-200810

57663CMEMBER, REAR FLOOR CROSS, CENTER

main57663-13080iNZE141..N200704-200810

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12110iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main58015-13050iNZE141..N200704-200810

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12080iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main58016-13050iNZE141..N200704-200810

58111PAN, FRONT FLOOR

main58111-12916iNZE141..N200704-200711

sub58111-12918

main58111-12918iZZE141;ZZE142..GCC;ZZE142..RHD200711-201007

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12140iZZE141;ZZE142..GCC;ZZE142..RHD200704-201007

58136COVER, FRONT FLOOR HOLE

main58136-33010iNZE141..N200704-201007

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main57805-12160iCE140,NZE141,ZZE14#..SED200704-200711

sub57805-12161

main57805-12161iZZE142..LHD..GEN;CE140,NZE141..SED200712-201007

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58176-12030iNZE141..N200704-201007

58208PAN, CENTER FLOOR

main58211-12939iZZE142..LHD..GEN;CE140,NZE141..LX,XLI200708-201007

main58211-12940iNZE141..GLI200708-201007

SEAT COVER MATERIAL-FABRIC

main58211-12940iZZE142..LHD..GLI..GEN200708-201007

REAR SEAT-6:4 FOLDING

main58211-12940iNZE141..GLI;ZRE142..GLI..GCC201007-201311

main58211-13320iNZE141..N200704-200810

58241CPANEL, FLOOR SIDE, RH

main58241-13020iNZE141..N200704-200810

58242CPANEL, FLOOR SIDE, LH

main58242-13020iNZE141..N200704-200810

58244LBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-13030iNZE141..N200704-200810

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-12080iNZE141..N200704-200810

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-12080iNZE141..N200704-200810

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12B20iCE140,NZE141,ZZE14#..SED200708-201007

main58307-12B30iCE140,NZE141,ZRE14#,ZZE142..SED201007

main58307-13180iNZE141..N200704-200810

58311PAN, REAR FLOOR

main58311-12270iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main58311-13310iNZE141..N200704-200810

58313PANEL, REAR FLOOR SIDE, RH

main58313-12290iNZE141..N200704-201204

main58313-12330iCE140,NZE141,ZZE14#..SED200708-201403

58314PANEL, REAR FLOOR SIDE, LH

main58314-12290iNZE141..N200704-201204

main58314-12330iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12150iZZE142..LHD..GEN;CE140,NZE141..SED200704-201007

58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH

main58341-12020iCE140,NZE141,ZRE14#,ZZE142..SED200708-201007

main58341-13040iNZE141..N200704-200810

58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH

main58342-12020iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main58342-13040iNZE141..N200704-200810

58351ABRACKET, SPARE WHEEL CARRIER

main58351-33010iZZE142..LHD..GEN;CE140,NZE141..SED200704-201007

58384GGUSSET, LOWER BACK, UPPER RH

main58384-12210iCE140,NZE141,ZZE14#..SED200708-201007

main58384-13090iNZE141..N200704-200810

58385GGUSSET, LOWER BACK, UPPER LH

main58385-12190iCE140,NZE141,ZZE14#..SED200708-201007

main58385-13070iNZE141..N200704-200810

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-12020iCE140,NZE141,ZRE14#,ZZE142..SED200704-201007

58791BCARRIER, JACK

main58791-12200iNZE141..N200704-201007

9011506166

main90115-06166

9011506219

main90115-06219

9011908A12

main90119-08A12

91631J0612

main91631-J0612

38 parts on this diagram · 2 diagrams in section
