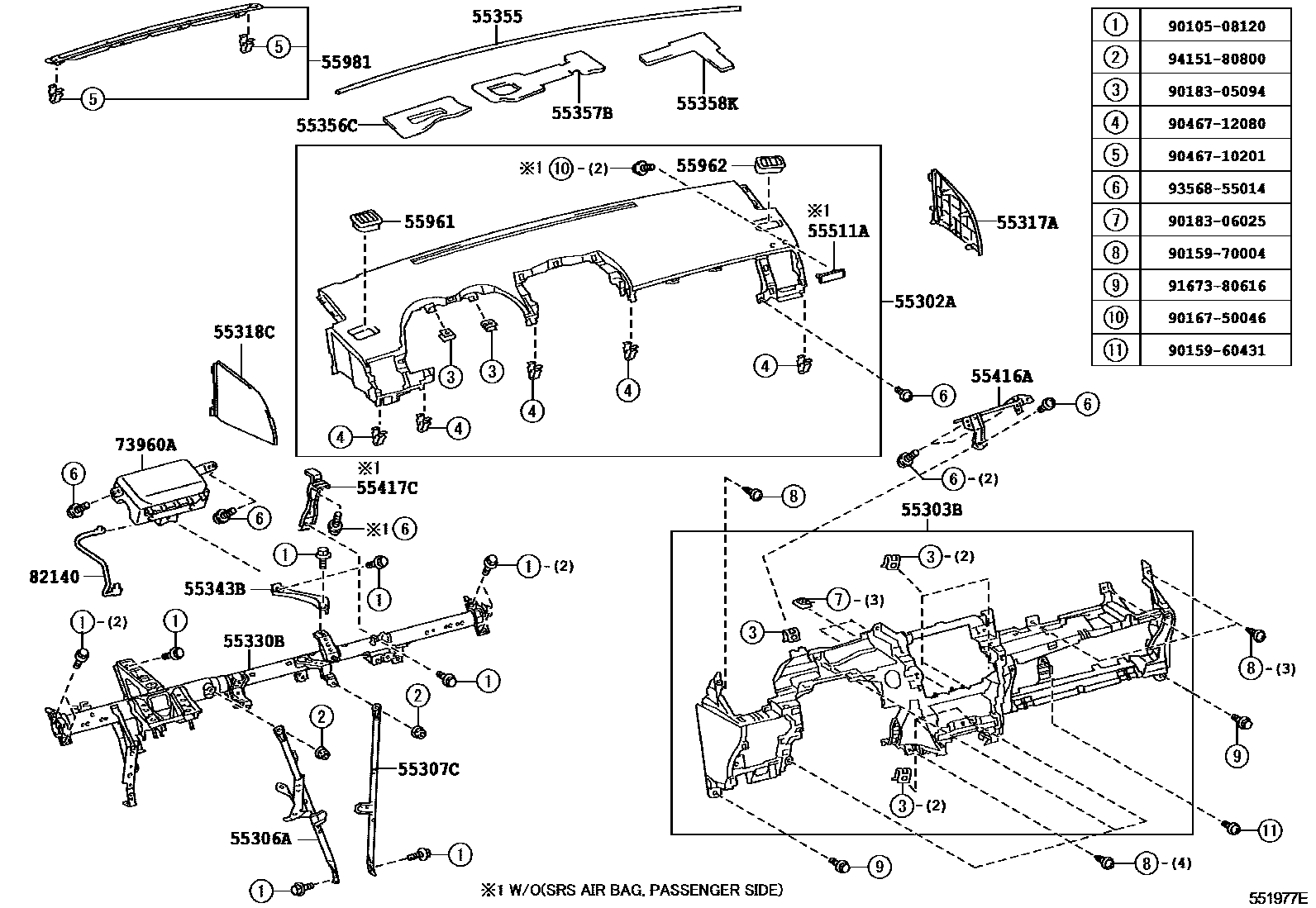

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0008 1CENTER 0010 1PASSENGER SIDE 0012 1DRIVER SIDE 0013 1CENTER 0014 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12121-B0iCE140,ZRE14#,ZZE142..LHD201007-201403

DK.GRAY,TRIM1#,4#

main55302-12121-B1iZZE14#..GCC200708-201007

SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1#

main55302-12121-B1iZZE14#..GCC200708-201007

MD.GRAY,TRIM1#

main55302-12121-B1iZZE14#..GCC200708-201007

SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1#

main55302-12121-E0iZZE14#..GCC200708-201007

ASH BROWN,TRIM4#

main55302-12121-E0iZZE14#..GCC200708-201007

SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#

main55302-12121-E0iZZE14#..GCC200708-201007

SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4#

main55302-12130-B0iNZE141..N200704-200804

DK.GRAY,TRIM1#

sub55302-12131

main55302-12130-E0iNZE141..N200704-200804

ASH BROWN,TRIM4#

sub55302-12131

main55302-12131-B0iCE140,NZE141,ZRE14#..RHD..SED201007-201311

DK.GRAY,TRIM1#,4#

main55302-12131-B0iNZE141..N200805-201204

DK.GRAY,TRIM1#

main55302-12131-B1iZZE142..RHD..GLI200708-201007

SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1#

main55302-12131-B1iZZE142..RHD..GLI200708-201007

MD.GRAY,TRIM1#

main55302-12131-B1iZZE142..RHD..GLI200708-201007

SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1#

main55302-12131-E0iZZE142..RHD..GLI200708-201007

SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#

main55302-12131-E0iZZE141..LX;NZE141..GLI200708-201204

ASH BROWN,TRIM4#

main55302-12131-E0iZZE141..LX;NZE141..GLI200708-201007

SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4#

main55302-12201-B1iCE140,ZZE14#..LHD..GEN200708-201007

MD.GRAY,TRIM1#

main55302-12201-E0iCE140,ZZE14#..LHD..GEN200708-201007

ASH BROWN,TRIM4#

main55302-12211-B1iZZE141..LX200708-201007

MD.GRAY,TRIM1#

main55302-12211-B1iZZE141..LX200708-201007

SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1#

main55302-12211-E0iZZE141..LX200708-201007

ASH BROWN,TRIM4#

main55302-12211-E0iZZE141..LX200708-201007

SRS AIR BAG-WITH(DRIVER),ASH BROWN,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12350-B1iCE140,ZZE14#..LHD200708-201403

GRAY,TRIM1#

main55303-12350-E0iCE140,ZZE14#..LHD200708-201403

GREGE,TRIM4#

main55303-12360-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main55303-12360-B1iCE140,NZE141,ZRE14#..RHD..SED200708-201311

GRAY,TRIM1#

main55303-12360-E0iCE140,NZE141,ZZE14#..RHD..SED200704-201311

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12370iNZE141..N200704-201311

main55306-12380iZZE141..LHD..GEN200708-201007

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12320iNZE141..N200704-201007

main55307-12330iCE140,NZE141..RHD..SED200708-201311

55317APANEL, INSTRUMENT SIDE, RH

main55317-12100-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main55317-12100-B1iCE140,NZE141,ZRE14#..RHD..SED200708-201311

GRAY,TRIM1#

main55317-12100-E0iCE140,NZE141,ZZE14#..RHD..SED200704-201311

GREGE,TRIM4#

main55317-12110-B2iCE140,ZZE14#..LHD200708-201403

GRAY,TRIM1#

main55317-12110-E0iCE140,ZZE14#..LHD200708-201403

GREGE,TRIM4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-12090-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main55318-12090-B1iCE140,NZE141,ZZE14#..RHD..SED200708-201311

GRAY,TRIM1#

main55318-12090-E0iNZE141..N200704-201311

GREGE,TRIM4#

main55318-12100-B2iCE140,ZZE14#..LHD200708-201403

GRAY,TRIM1#

main55318-12100-E0iCE140,ZRE14#,ZZE142..LHD200708-201403

GREGE,TRIM4#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12700iCE140,ZZE14#..LHD..GEN200708-201403

main55330-12720iCE140,NZE141,ZZE14#..RHD..SED200708-201311

main55330-12750iNZE141..N200704-201204

main55330-12760iZZE14#..GCC200708-201311

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12070iNZE141..N200704-201007

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12110iNZE141..N200704-201007

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12150iCE140,NZE141,ZZE14#..SED200708-201101

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-12090iCE140,NZE141,ZZE14#..SED200708-201101

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-12080iZZE142..4FC;ZRE142..6F..GEN;ZZE142..5F..XLI;ZRE142..XLI..GCC;ZRE142..4FC..GLI;CE140,NZE141,ZRE141..SED200708-201101

55416ARETAINER, METER HOOD, NO.1

main55416-12070iZZE141..LHD;ZZE142..GCC200708-201007

main55416-12080iNZE141..N200704-201311

55417CBRACKET, INSTRUMENT PAD, NO.3

main55417-12020iZZE142..RHD;ZZE141..LHD..GEN200708

SRS AIR BAG-WITH(DRIVER)

main55417-12020iZZE142..LHD..GEN;CE140,NZE141..LX,XLI200708-201007

55511APLATE, INSTRUMENT PANEL, NAME

main55471-12030-B1iCE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN200708-201007

MD.GRAY,TRIM1#,4#

main55471-12030-B1iCE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN200708-201007

SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1#,4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12230-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main55961-12230-B0iCE140,NZE141,ZRE14#,ZZE142..SED201007-201403

DK.GRAY,TRIM1#,4#

main55961-12230-B1iCE140,NZE141,ZZE14#..SED200708-201007

MD.GRAY,TRIM1#

main55961-12230-E0iNZE141..5F200704-201204

ASH BROWN,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12200-B0iCE140,NZE141,ZRE14#,ZZE142..SED201007-201403

DK.GRAY,TRIM1#,4#

main55962-12200-B0iNZE141..N200704-201204

DK.GRAY,TRIM1#

main55962-12200-B1iCE140,NZE141,ZZE14#..SED200708-201007

MD.GRAY,TRIM1#

main55962-12200-E0iNZE141..N200704-201204

ASH BROWN,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12140iZZE141..LHD;ZZE142..GCC200708-201007

main55981-12170iCE140,NZE141,ZRE14#..RHD..SED200704-201311

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12120iNZE141..N200704-200810

sub73960-12420

main73960-12140iZRE142..6F..GEN;ZZE142..5F..XLI;ZRE142..4FC..GLI;ZRE142..XLI..GCC;CE140,NZE141..LX,XLI;ZRE141,ZZE142..4FC,6F201007-201306

SRS AIR BAG-WITH(DRIVER)

sub73960-12430

main73960-12140iZZE141..LX;ZZE14#..GCC;NZE141..GLI200708

SRS AIR BAG-WITH(DRIVER & PASSENGER)

sub73960-12430

main73960-12140iZZE141..LX;ZZE14#..GCC;NZE141..GLI200708

SRS AIR BAG-W(*DRP & SIDE & *CUSA)

sub73960-12430

82140WIRE ASSY, INSTRUMENT PANEL

main82140-1A200iNZE141..N200704-200810

main82140-1A200iNZE141..GLI200708-201007

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main82140-1A200iNZE141..GLI200708-201007

SRS AIR BAG-W(*DRP & SIDE & *CUSA)

main82140-1A200iCE140,NZE141,ZRE14#,ZZE142..SED201007

SRS AIR BAG-WITH(DRIVER)

9010508120

main90105-08120

9015960431

main90159-60431

9015970004

main90159-70004

9016750046

main90167-50046

9018305094

main90183-05094

9018306025

main90183-06025

9046710201

main90467-10201

9046712080

main90467-12080

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

31 parts on this diagram · 11 diagrams in section
