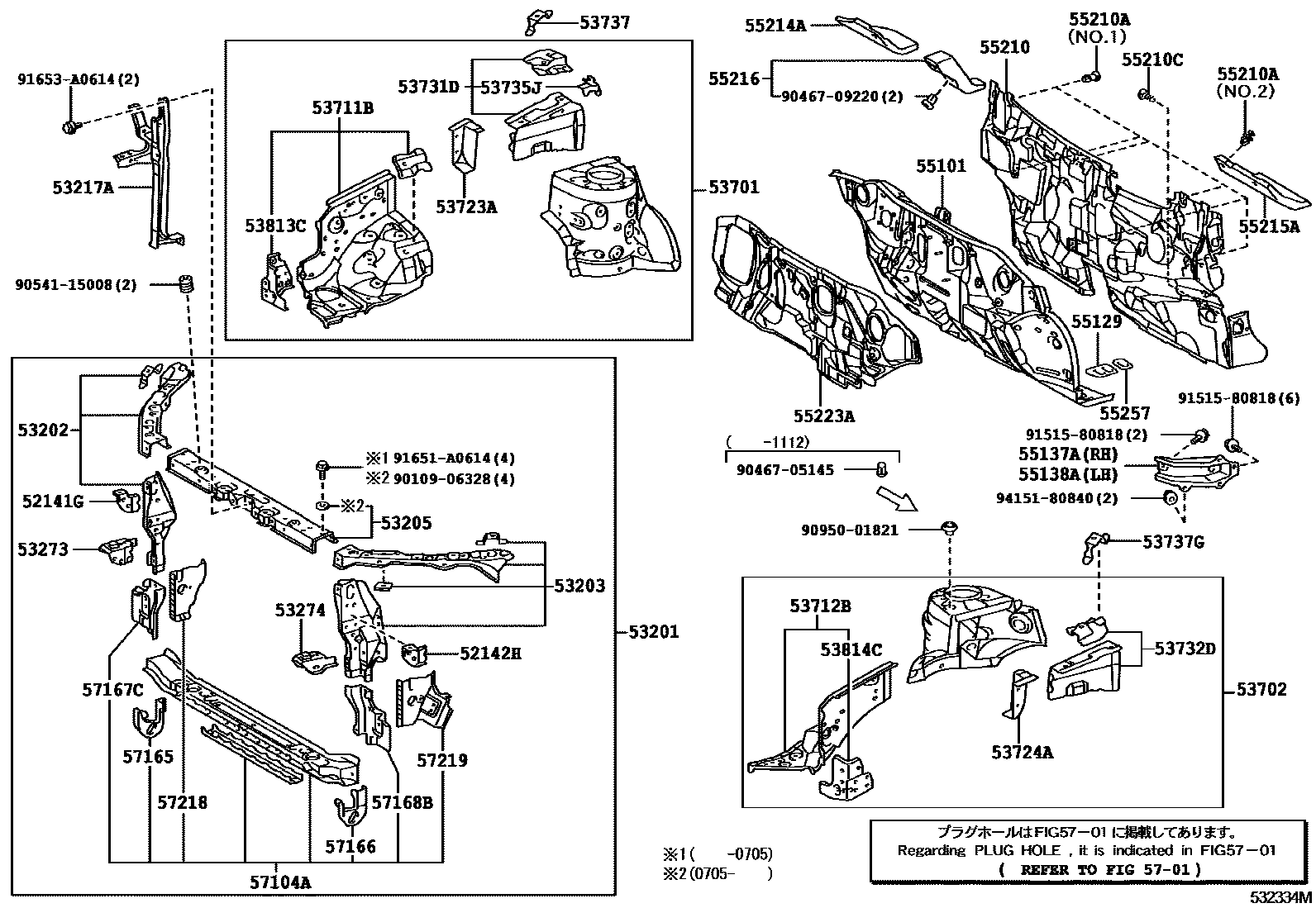

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

52141GSTAY, FRONT BUMPER, RH

main52141-12540iNZE141..N200810

main52141-12550iCE140,NZE141,ZRE14#,ZZE142..SED201007

52142HSTAY, FRONT BUMPER, LH

main52142-12460iNZE141..N200810

main52142-12470iZZE141;ZZE142..GCC;ZZE142..RHD200708

53201SUPPORT SUB-ASSY, RADIATOR

main53201-12B20iNZE141..N200810-201204

main53201-12B50iCE140,NZE141,ZZE14#..SED200708-201007

main53201-12B70iZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI201007-201403

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12510iNZE141..N200810

main53202-12540iCE140,NZE141,ZRE14#,ZZE142..SED201007

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12460iNZE141..N200810

main53203-12470iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-12290iNZE141200704-200705

main53205-12291iCE140,NZE141,ZRE14#,ZZE142..SED201007

53217ABRACE, HOOD LOCK SUPPORT

main53208-12530iNZE141..N200704-200810

main53208-12540iCE140,NZE141,ZRE14#,ZZE142..SED201007-201403

main53208-13070iNZE141..N200810-201204

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-12120iNZE141..N200810

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-12120iNZE141..N200704-200810

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-12995iNZE141..N200704-200810

main53701-12A20iCE140,NZE141,ZZE14#..SED200708-201007

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-12992iNZE141..N200704-200810

main53702-12A30iCE140,NZE141,ZRE14#,ZZE142..SED201007-201112

main53702-12A31iCE140,NZE141,ZRE14#,ZZE142..SED201112-201403

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12280iCE140,NZE141,ZRE14#,ZZE142..SED201007

main53711-12908iNZE141..N200704-200810

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12230iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main53712-12906iNZE141..N200704-200810

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-12080iNZE141..N200704-200810

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-12070iNZE141..N200810-201204

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12160iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main53731-12903iNZE141..N200704-200810

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12140iCE140,NZE141,ZRE14#,ZZE142..SED201007

main53732-12901iNZE141..N200810

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-12080iNZE141..N200704-200810

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-12090iNZE141..N200704-200810

main53737-12110iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-12090iNZE141..N200704-200810

53813CEXTENSION, FRONT FENDER, RH

main53803-12060iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main53813-12120iNZE141..N200704-200810

53814CEXTENSION, FRONT FENDER, LH

main53814-12070iNZE141..N200704-200810

main53814-12090iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

55101PANEL SUB-ASSY, DASH

main55101-12D00iNZE141,ZZE14#..RHD..4FC200708-201007

main55101-12D10iZZE14#..RHD..5F200708-201007

main55101-12D30iCE140..RHD201007-201311

main55101-12D40iZRE14#,ZZE142..LHD..4FC201007-201403

main55101-12D50iZZE14#..LHD..5F200708-201007

main55101-12D70iCE140..LHD200708-201007

main55101-13350iNZE141..CVFC200910-201204

main55101-13360iNZE141..5F200810-201204

55129COVER, DASH PANEL HOLE

main55129-32030iNZE141..N200704-200810

RH

main55139-32010iCE140,NZE141,ZRE14#,ZZE142..SED201007

LH

55137ABRACE, DASH TO FRAME, RH

main55137-12060iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

55138ABRACE, DASH TO FRAME, LH

main55138-12030iNZE141..N200704-200810

55210INSULATOR ASSY, DASH PANEL

main55210-12570iCE140,NZE141,ZZE14#..RHD..SED200708-200807

main55210-12590iCE140,ZZE14#..LHD200708-201002

main55210-12591iCE140,ZZE142..LHD..GEN201003-201007

main55210-12620iZZE14#..RHD200808

55210ACLIP

main90467-11122×6iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

NO.1

main90467-11127×2iCE140,NZE141,ZRE14#,ZZE142..SED201007

NO.2

55210CCLIP

main90467-08186-C0×4iNZE141..N200704-200810

BLACK

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-12030iNZE141..N200704-200810

main55214-12050iCE140,ZZE14#..LHD200708-201003

main55214-12100iZZE141..LHD;ZZE142..GCC201004

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-12120iNZE141..N200810

main55215-12130iCE140,ZRE14#,ZZE142..LHD201007

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-12010iNZE141..N200704-200810

main55216-12020iNZE141..CVFC200910

main55216-12030iCE140,ZRE14#,ZZE142..LHD201007

55223AINSULATOR, DASH PANEL, OUTER

main55223-12180iZZE14#..RHD200708

main55223-12190iZZE141..LHD;ZZE142..GCC200708

55257COVER, DASH PANEL OPENING

main55257-32010×2iNZE141..N200810

5701HOLE PLUG

→ Go to FIG 57-01

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-12280iNZE141..N200704-200810

main57104-12290iCE140,NZE141,ZZE14#..SED200708-200710

main57104-12291iZZE142..LHD..GEN;CE140,NZE141..SED200711-201007

main57104-12300iZZE14#..GEN;CE140,NZE141..LX,XLI200708-200710

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

main57104-12301iZZE141..GEN;ZZE142..RHD200711

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57165-12070iNZE141..N200704-200810

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57166-12020iNZE141..N200704-200810

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-12130iNZE141..N200704-200810

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-12130iNZE141..N200704-200810

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-12030iNZE141..N200704-200810

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-12030iNZE141..N200704-200810

9010906328

main90109-06328

9046705145

main90467-05145

9046709220

main90467-09220

9054115008

main90541-15008

9095001821

main90950-01821

9151580818

main91515-80818

91651A0614

main91651-A0614

91653A0614

main91653-A0614

9415180840

main94151-80840

51 parts on this diagram · 3 diagrams in section
