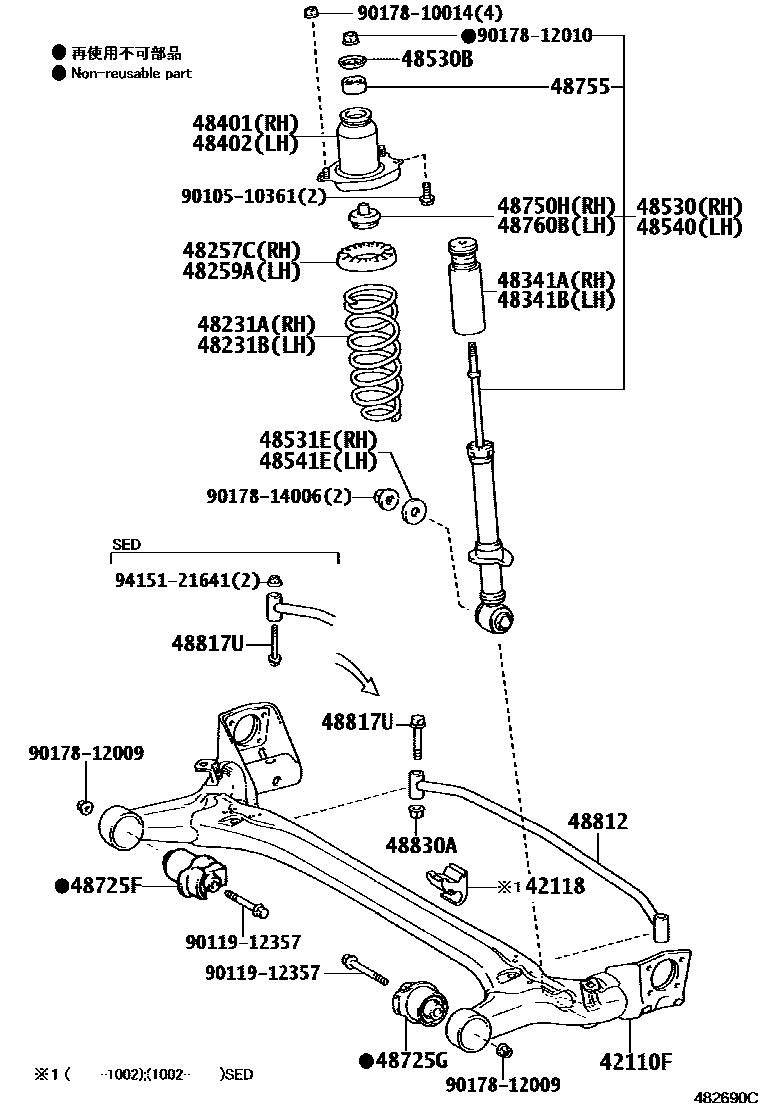

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42101-12140iNZE141..N200704-200810

main42101-12180iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

42118DAMPER, REAR AXLE BEAM

main42118-12010iNZE141..N200704-201002

main42118-12020iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

48231ASPRING, COIL, REAR RH

main48231-12B10iNZE141..N200704-200810

main48231-12C40iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

48231BSPRING, COIL, REAR LH

main48231-12B10iNZE141..N200704-200810

main48231-12C40iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-32090iCE140,NZE141,ZRE14#,ZZE142..SED200704-201007

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-32090iNZE141..N200704-201007

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-12230iZZE142..LHD..GEN;CE140,NZE141..SED200712-201007

main48341-47010iNZE141..N200704-200810

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-12230iCE140,NZE141,ZRE14#,ZZE142..SED200712-201007

main48341-47010iNZE141..N200704-200810

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48401-12020iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main48401-32020iNZE141..N200704-200810

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48403-12020iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

main48403-32010iNZE141..N200704-200810

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80390iNZE141..N200704-200810

MARK 48530-12D41

sub48530-80563

main48530-80440iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

MARK 48530-12D70

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021iNZE141..N200704-201007

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90201-14034iNZE141..N200704-201007

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80390iNZE141..N200704-200810

MARK 48530-12D41

sub48530-80563

main48530-80440iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

MARK 48530-12D70

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90201-14034iZZE141;ZZE142..GCC;ZZE142..RHD200704-201007

48725FBUSH, REAR AXLE CARRIER, RH

main48725-12560iNZE141..N200704-200810

main48725-12630iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

48725GBUSH, REAR AXLE CARRIER, LH

main48725-12560iNZE141..N200704-200810

main48725-12630iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-47010iZZE142..LHD..GEN;CE140,NZE141..SED200704-201007

48755SUPPORT, REAR SUSPENSION

main48755-20010iNZE141..N200704-200810

main48755-63010iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-47010iCE140,NZE141,ZRE14#,ZZE142..SED200704-201007

48812BAR, STABILIZER, REAR

main48812-12430iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

main48812-13050iNZE141..N200704-200810

48817UBOLT(FOR REAR STABILIZER)

main90105-14138iNZE141..N200704-200810

main90105-16085iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

48830ANUT(FOR REAR STABILIZER LINK)

main90179-14062iNZE141..N200704-200810

9010510361

main90105-10361

9011912357

main90119-12357

9017810014

main90178-10014

9017812009

main90178-12009

9017812010

main90178-12010

9017814006

main90178-14006

9415121641

main94151-21641

30 parts on this diagram · 1 diagram in section
