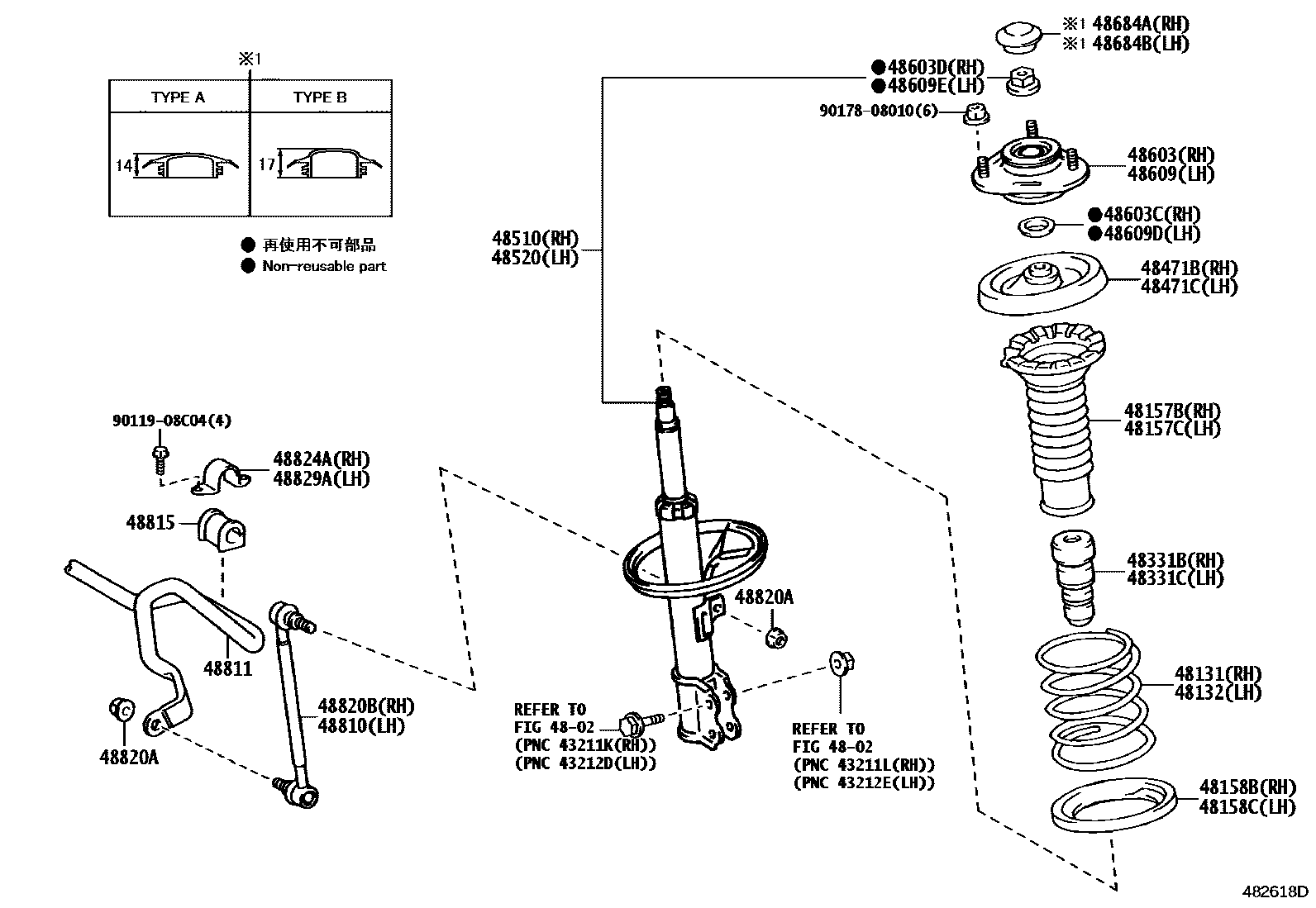

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-12A90iNZE141..5F200704-200810

main48131-12B00iNZE141..CVFC200910

main48131-12C20iNZE141..4FC;ZZE142..LHD..5F..GEN200708-201102

sub48131-12C21

main48131-12C21iNZE141..4FC;ZRE14#,ZZE142..MTM201103-201403

main48131-12C30iZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC200708-201102

sub48131-12C31

main48131-12C31iZRE14#,ZZE142..4FC201103-201403

main48131-12C40iCE140200708-201208

sub48131-12C41

main48131-12C41iCE140201209-201403

48132SPRING, FRONT COIL, LH

main48131-12A90iNZE141..5F200704-200810

main48131-12B00iNZE141..CVFC200910

main48131-12C20iNZE141..4FC;ZZE142..LHD..5F..GEN200708-201102

sub48131-12C21

main48131-12C21iNZE141..4FC;ZRE14#,ZZE142..MTM201103-201403

main48131-12C30iZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC200708-201102

sub48131-12C31

main48131-12C31iZRE14#,ZZE142..4FC201103-201403

main48131-12C40iCE140200708-201208

sub48131-12C41

main48131-12C41iCE140201209-201403

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12080iCE140,NZE141,ZRE14#,ZZE142..SED200704-201007

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12080iNZE141..N200704-201007

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-47010iNZE141..N200704-201007

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-47010iNZE141..N200704-201007

48331BBUMPER, FRONT SPRING, RH

main48331-12200iNZE141..N200704-200810

main48331-12210iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

48331CBUMPER, FRONT SPRING, LH

main48331-12200iNZE141..N200704-200810

main48331-12210iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-12110iZZE141;ZZE142..GCC;ZZE142..RHD200704-201007

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-12110iZZE142..LHD..GEN;CE140,NZE141..SED200704-201007

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80341iNZE141..N200704-201204

MARK 48510-12C20

main48510-80381iCE140,NZE141,ZRE14#,ZZE142..SED200708-201403

MARK 48510-12D10

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80112iNZE141..N200704-200810

MARK 48520-12B20

sub48520-80259

main48520-80140iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

MARK 48520-12C10

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12520iZZE142..LHD..GEN;CE140,NZE141..SED200704-201007

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iZZE141;ZZE142..GCC;ZZE142..RHD200704-201007

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-14015iNZE141..N200704-201007

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12520iNZE141..N200704-201007

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iZZE142..LHD..GEN;CE140,NZE141..SED200704-201007

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-14015iZZE142..LHD..GEN;CE140,NZE141..SED200704-201007

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iCE140,NZE141,ZZE14#..SED200704-201005

main48684-52010iCE140,NZE141,ZZE14#..SED201005

TYPE A:REFER ILLUST.

main48684-74010iCE140,NZE141,ZZE14#..SED201005

TYPE B:REFER ILLUST.

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iCE140,NZE141,ZRE14#,ZZE142..SED201005

TYPE A:REFER ILLUST.

main48684-52010iNZE141..N200704-201005

main48684-74010iCE140,NZE141,ZZE14#..SED201005

TYPE B:REFER ILLUST.

48810LINK ASSY, FRONT STABILIZER, LH

main48820-47010iNZE141..N200704-201007

48811BAR, STABILIZER, FRONT

main48811-12A30iNZE141..N200704-201007

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12340iNZE141..N200704-201007

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iNZE141..N200704-201007

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-47010iNZE141..N200704-201007

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-26210iNZE141..N200704-201007

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-26210iNZE141..N200704-201007

9011908C04

main90119-08C04

9017808010

main90178-08010

30 parts on this diagram · 1 diagram in section
