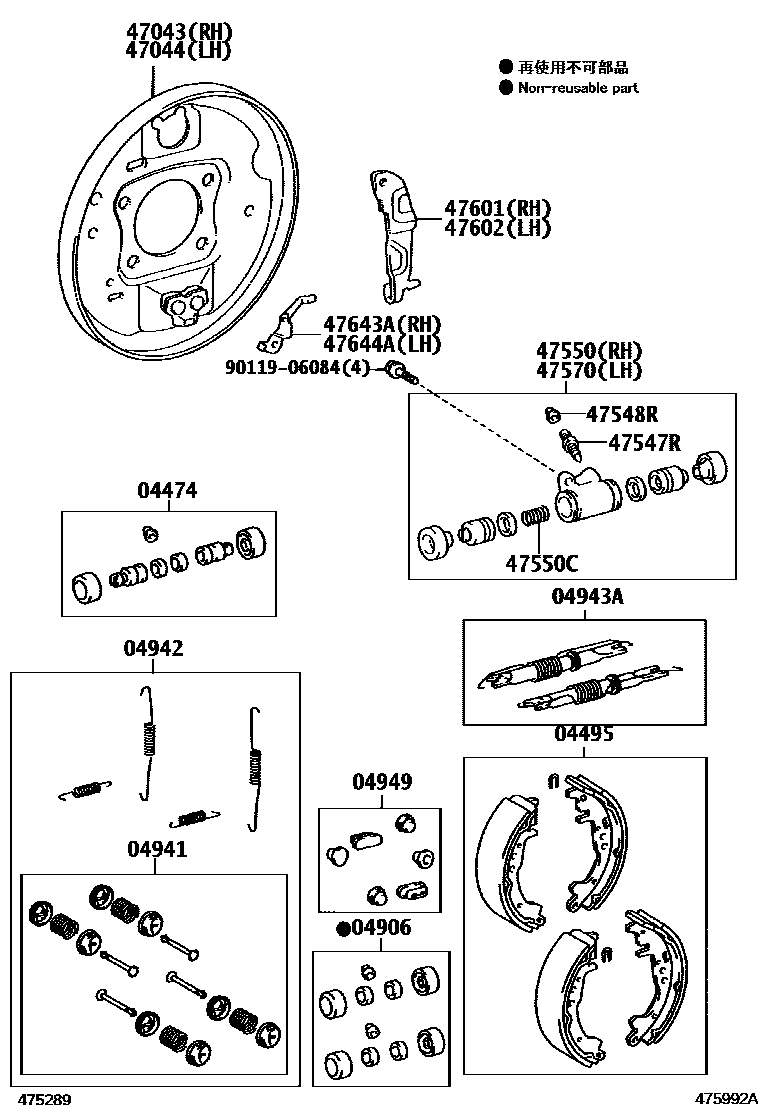

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04474CYLINDER KIT, REAR WHEEL

main04474-12050×2iNZE141..N200810

04495SHOE KIT, REAR BRAKE

main04495-52120iNZE141..N200704-200810

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-33030iNZE141..N200704-200810

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iNZE141..N200704-200810

04942SPRING KIT, REAR BRAKE

main04942-13030iNZE141..N200704-200810

04943ASTRUT KIT, REAR BRAKE

main04943-52030iNZE141..N200810

main04943-12040iCE140..LHD;ZRE14#..GCC201206

REAR WHEEL BRAKE-9 INCHES DRUM

04949PLUG KIT, REAR BRAKE

main04949-13010iNZE141..N200704-200810

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12480iNZE141..N200704-200810

main47043-12490iZZE142..GCC;CE140,ZZE141..LHD..XLI200708-201007

REAR WHEEL BRAKE-9 INCHES DRUM

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12480iNZE141..N200810

main47044-12490iCE140..LHD;ZRE14#..GCC201007-201403

REAR WHEEL BRAKE-9 INCHES DRUM

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030×2iNZE141..N200704-200810

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iNZE141..N200704-200810

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12120iNZE141..N200704-200810

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079×2iNZE141..N200704-200810

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12120iNZE141..N200704-200810

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-12480iNZE141..N200704-200810

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-12480iNZE141..N200704-200810

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-52120iNZE141..N200704-200810

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-52120iNZE141..N200704-200810

9011906084

main90119-06084

19 parts on this diagram · 3 diagrams in section
