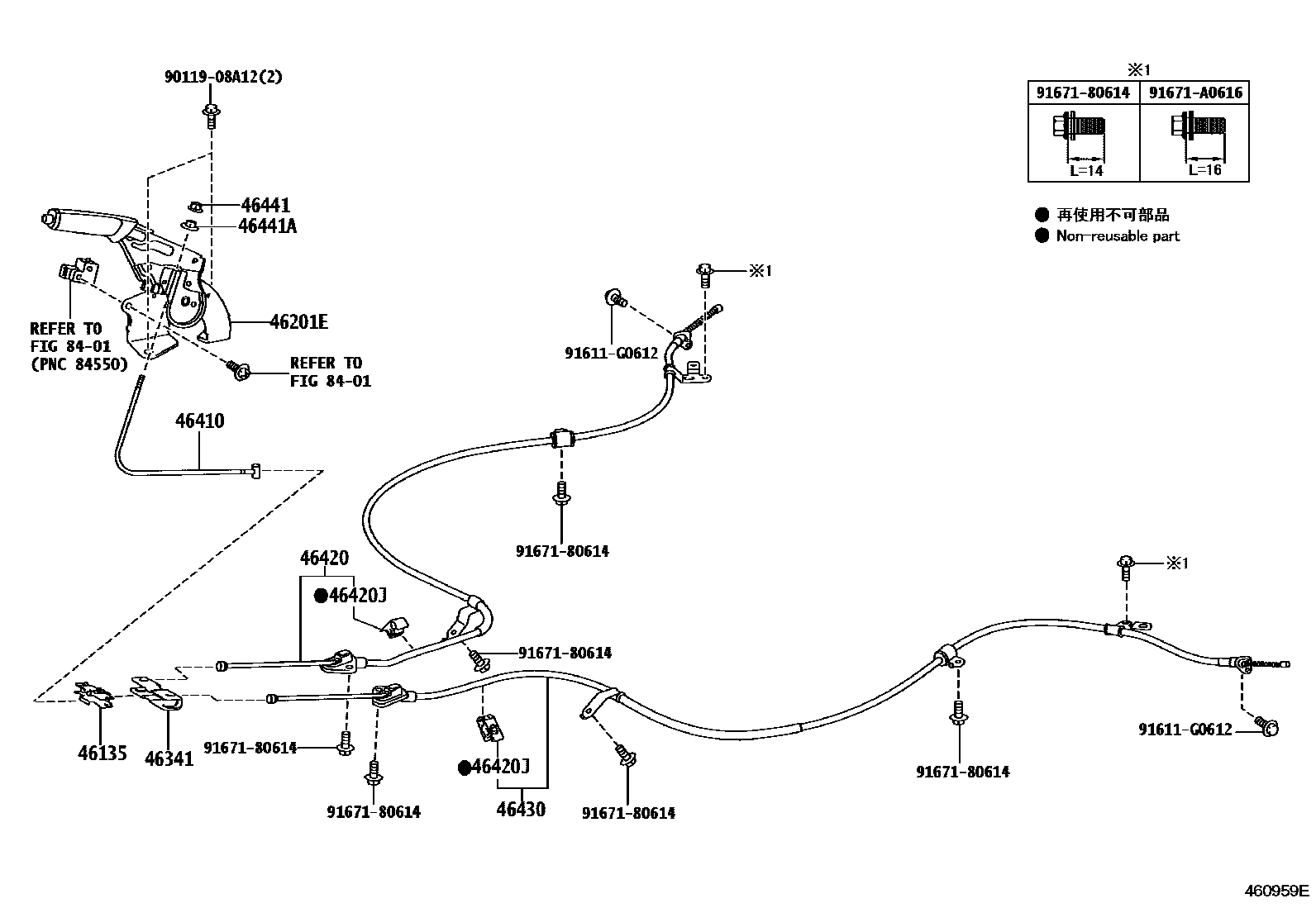

PARKING BRAKE & CABLE

0001 1DRUM BRAKE 0003 1DISC BRAKE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iCE140,NZE141,ZRE14#,ZZE142..SED200704-201204

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12370-B0iZRE14#..GCC201007-201011

DK.GRAY,TRIM1#,4#

sub46201-12370

main46201-12370-B0iCE140,ZRE14#,ZZE142..LHD..GEN201007-201011

PARKING BRAKE-CHROME PLATED KNOB,DK.GRAY,TRIM1#,4#

sub46201-12370

main46201-12370-B0iZZE14#..GCC200708-201007

DK.GRAY,TRIM1#

sub46201-12370

main46201-12370-B0iZZE14#..GCC200708-201007

PARKING BRAKE-CHROME PLATED KNOB,DK.GRAY,TRIM1#

sub46201-12370

main46201-12370-C0iZRE14#..GCC201011-201311

BLACK,TRIM1#,4#

sub46201-12370

main46201-12370-E0iZZE14#..GCC200708-201007

ASH BROWN,TRIM4#

sub46201-12370

main46201-12370-E0iZZE14#..GCC200708-201007

PARKING BRAKE-CHROME PLATED KNOB,ASH BROWN,TRIM4#

sub46201-12370

main46201-12380-B0iNZE141..GLI201007-201011

DK.GRAY,TRIM1#,4#

sub46201-12380

main46201-12380-B0iNZE141..GLI201007-201011

PARKING BRAKE-CHROME PLATED KNOB,DK.GRAY,TRIM1#,4#

sub46201-12380

main46201-12380-B0iZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI)200708-201007

PARKING BRAKE-CHROME PLATED KNOB,DK.GRAY,TRIM1#

sub46201-12380

main46201-12380-B0iZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI)200708-201007

DK.GRAY,TRIM1#

sub46201-12380

main46201-12380-C0iNZE141..GLI201011-201301

BLACK,TRIM1#,4#

sub46201-12380

main46201-12380-E0iNZE141..GLI200708-201007

PARKING BRAKE-CHROME PLATED KNOB,ASH BROWN,TRIM4#

sub46201-12380

main46201-12380-E0iZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI)200708-201007

ASH BROWN,TRIM4#

sub46201-12380

main46201-12390-B0iNZE141..N200704-201011

DK.GRAY,TRIM1#

sub46201-12390

main46201-12390-C0iNZE141..N201011-201204

BLACK,TRIM1#

sub46201-12390

main46201-12390-E0iNZE141..N200704-201204

ASH BROWN,TRIM4#

sub46201-12390

main46201-12450-B0iCE140,ZZE14#..LHD..GEN200708-201007

DK.GRAY,TRIM1#

sub46201-12450

main46201-12450-B0iCE140,ZRE14#,ZZE142..LHD..GEN201007-201011

DK.GRAY,TRIM1#,4#

sub46201-12450

main46201-12450-C0iCE140,ZRE14#,ZZE142..LHD..GEN201011-201403

BLACK,TRIM1#,4#

sub46201-12450

main46201-12450-E0iCE140,ZZE14#..LHD..GEN200708-201007

ASH BROWN,TRIM4#

sub46201-12450

main46201-12460-B0iZRE142..RHD;CE140,NZE141,ZRE141..RHD..(LX,XLI)201007-201011

DK.GRAY,TRIM1#,4#

sub46201-12460

main46201-12460-B0iZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI)200708-201007

DK.GRAY,TRIM1#

sub46201-12460

main46201-12460-C0iZRE142..RHD;CE140,NZE141,ZRE141..RHD..(LX,XLI)201011-201311

BLACK,TRIM1#,4#

sub46201-12460

main46201-12460-E0iZZE142..RHD;CE140,NZE141,ZZE141..RHD..(LX,XLI)200708-201007

ASH BROWN,TRIM4#

sub46201-12460

46341EQUALIZER, PARKING BRAKE

main46341-12040iNZE141..N200704-201204

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12300iNZE141..N200704-201204

main46410-12320iCE140,NZE141,ZRE14#,ZZE142..SED200708-201007

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12630iNZE141..N200704-201204

main46420-12680iCE140,NZE141,ZZE14#..SED200708-201204

sub46420-12681

main46420-12681iCE140,NZE141,ZRE14#,ZZE142201204-201403

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-12020iNZE141..N200704-201209

main46402-12020iCE140,NZE141,ZRE14#,ZZE142201209

REAR WHEEL BRAKE-9 INCHES DRUM

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12520iNZE141..N200704-201204

main46430-12570iCE140,NZE141,ZZE14#..SED200708-201204

sub46430-12571

main46430-12571iCE140,NZE141,ZRE14#,ZZE142201204-201403

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iNZE141..N200704-201204

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iNZE141..N200704-201204

8401

9011908A12

main90119-08A12

91611G0612

main91611-G0612

9167180614

main91671-80614

91671A0616

main91671-A0616

14 parts on this diagram · 2 diagrams in section
