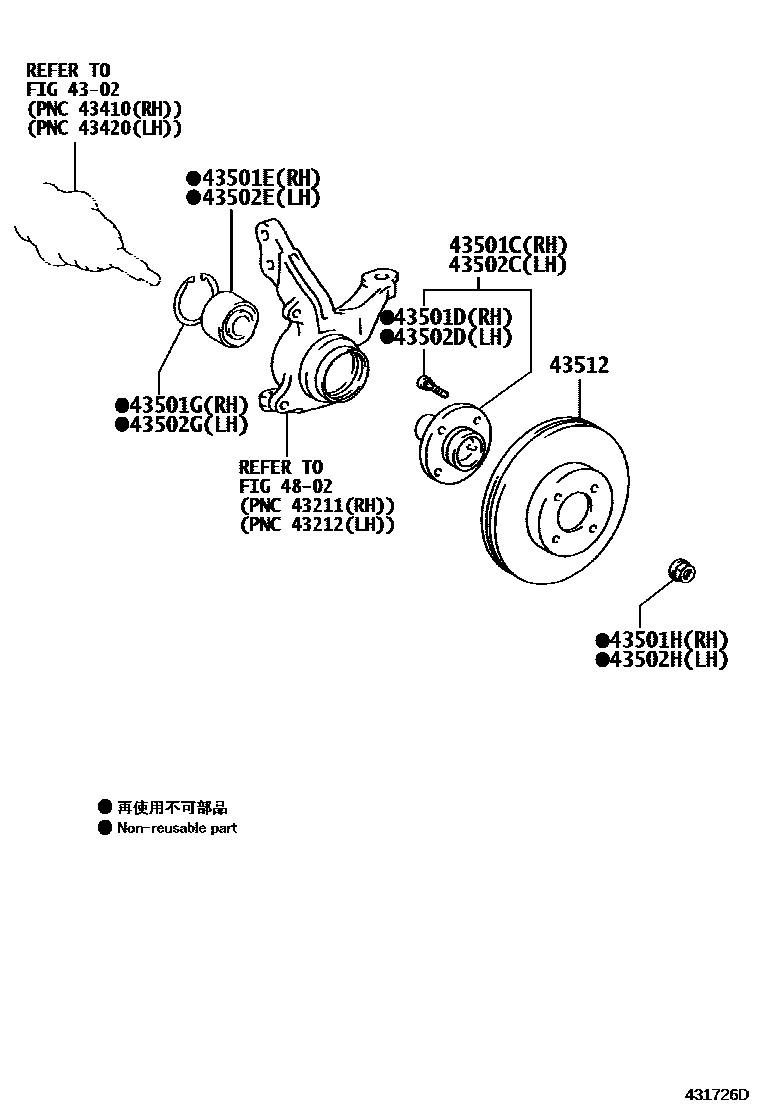

FRONT AXLE HUB

0001 1 0002 1

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-12140iNZE141..N200704-201204

main43502-32080iCE140,NZE141,ZZE14#..SED200708-201403

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNZE141..N200704-201204

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066iNZE141..N200704-201204

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iNZE141..N200704-201204

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNZE141..N200704-201204

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-12140iNZE141..N200704-201204

main43502-32080iZZE141;ZZE142..GCC;ZZE142..RHD200708-201007

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZZE142..LHD..GEN;CE140,NZE141..SED200704-201204

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066iNZE141..N200704-201204

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iZZE141;ZZE142..GCC;ZZE142..RHD200704-201204

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNZE141..N200704-201204

43512DISC, FRONT

main43512-12710iCE140,NZE141,ZZE14#..SED200708-201403

main43512-52130iNZE141..N200704-201204

4802

13 parts on this diagram · 2 diagrams in section
