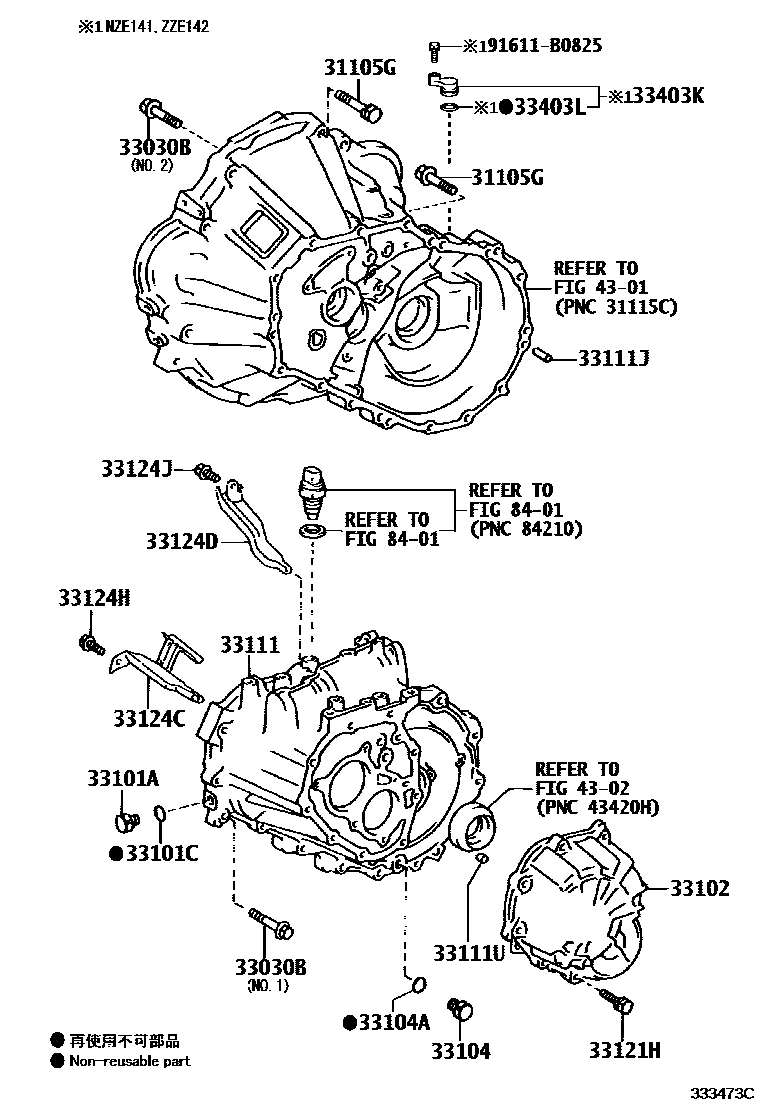

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C50,C51 0002 1E351 0003 1EC60

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iCE140200708-201007

*10-1.25PX43-26

main90119-12168×2iCE140; ZZE14#..5F200708-201007

*12-1.25PX55-30

main90119-A0140×7iZRE14#..6F201007-201403

*10-1.25PX45-30,(L)

main91612-61045×7iNZE141..N200704-200810

*10-1.25PX45-30

main91641-H0820iCE140201007-201403

*8-1.25PX20-20

main91642-81055×2iZZE14#..5F200708-201007

*10-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086×14iCE140200911-201007

*8-1.25PX45-27.5,NO.1

main90105-08126×3iCE140200911-201007

*8-1.25PX45-27.5,NO.2

main90105-08353×13iNZE141..5F200810

*8-1.25PX50-30,NO.1

main90105-08430×3iZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC200708

*8-1.25PX45-27.5,NO.2

main91551-10840×16iZRE14#..6F201007

*8-1.25PX40-22

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iZRE14#..6F201007

NO.1

main90341-18033iCE140,ZZE142..5F; ZRE14#..6F201007

NO.2

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main12157-10010iZRE14#..6F201211

NO.2

main90430-14003iZRE14#..6F201007

NO.1

main90430-18008iZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC200708

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iNZE141..5F200810

main33102-33012iCE140200708-201007

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iCE140201007

main90341-18033iZZE142..LHD..5F..GEN200708-201007

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNZE141..N200704-200810

33111CASE, MANUAL TRANSMISSION

main33101-42040iCE140201007

main33111-12260iZZE142..5F201007-201311

main33111-12291iZRE14#..6F201007

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iNZE141..N200704-200810

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iZZE142..LHD..5F..GEN200708-201007

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273×10iCE140200708-201007

main90119-08429×9iNZE141..N200704-200810

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iZZE142..5F201007-201311

main33124-20080iZRE14#..6F201007

main33124-28050iCE140200708-201007

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iNZE141..5F200810

main33124-28060iCE140200708-201007

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830×2iCE140201007

main91611-G0820iZZE142..LHD..5F..GEN200708-201007

33124JBOLT, W/WASHER

main91611-G0820iZZE142..5F201007-201311

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iNZE141..N200704-200810

33403LRING, O

main96711-24030iNZE141..N200704-200810

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0825

main91611-B0825

21 parts on this diagram · 3 diagrams in section
