TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

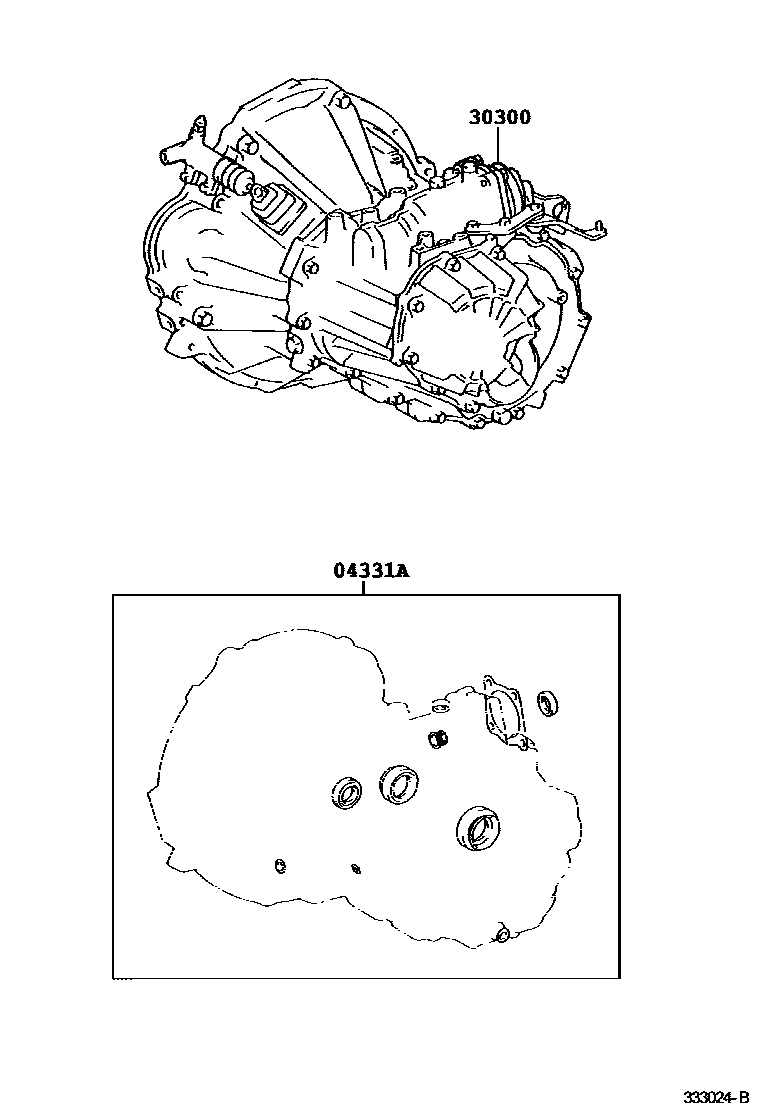

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12650i200708-201007

main04331-12690i200704-200810

main04331-12691i201010-201102

main04331-12800i201010-201311

main04331-12810i201102

main04331-20240i201007

main04331-20250i201007-201211

main04331-20252i201211

30300TRANSAXLE ASSY, MANUAL

main30300-12A80i200708-201007

C50

main30300-12B40i200704-200810

C51

main30300-12B80i201007-201311

C50

main30300-12C10i200708-201007

E351

main30300-12E41i201007-201403

EC60

main30300-12F21i201007-201403

EC60

2 parts on this diagram · 3 diagrams in section
