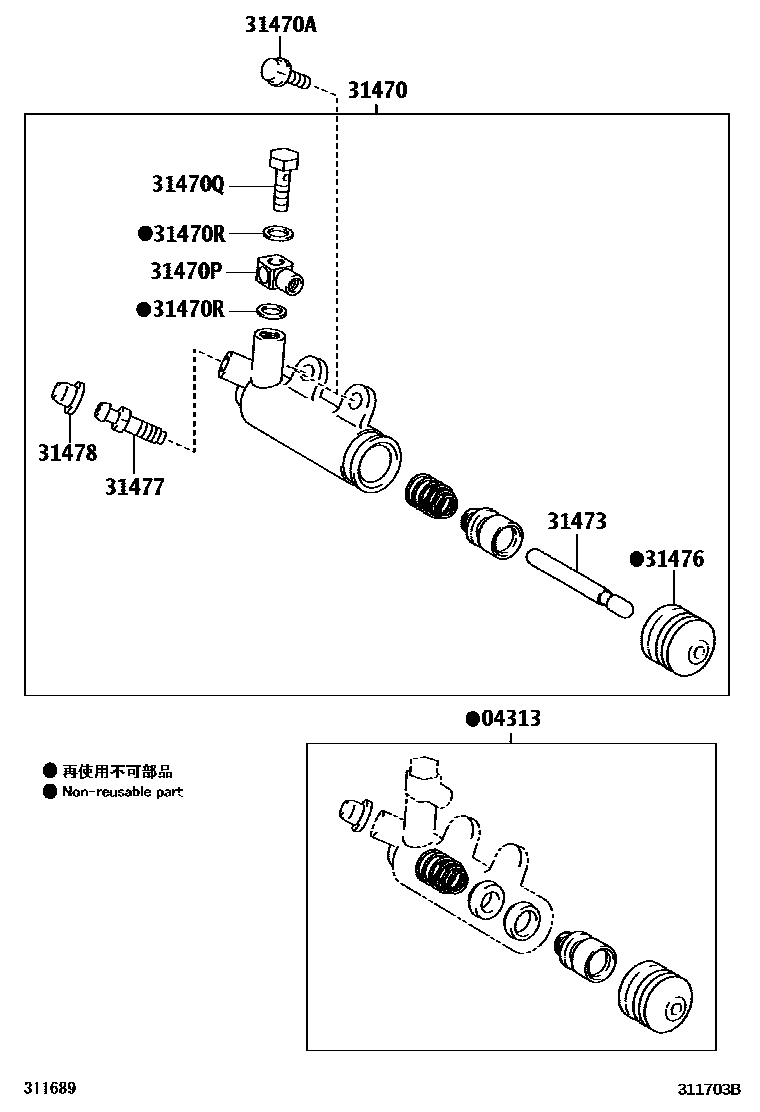

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17040iZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC200708-201311

main04313-35060iNZE141..N200704-200810

main04313-52020iCE140200708-201007

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12111iZZE142..5F200708-200710

sub31470-12140

main31470-12140iZZE141..5F200708-201311

main31470-12200iNZE141..5F200704-201204

main31470-32023iCE140200708-201403

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iCE140,ZZE14#..5F200704-201204

*8-1.25PX22-17.1

31470PUNION(FOR CLUTCH RELEASE)

main90405-10073iNZE141..N200704-200810

31470QBOLT, UNION(FOR CLUTCH RELEASE)

main90401-10056iNZE141..N200704-200810

31470RGASKET(FOR CLUTCH RELEASE)

main90029-43002iNZE141..N200704-200810

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC200708-201007

main31473-35050iNZE141..5F200704-200810

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCE140,ZZE142..5F200704-201007

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNZE141..N200704-201007

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNZE141..N200704-201007

10 parts on this diagram · 3 diagrams in section
