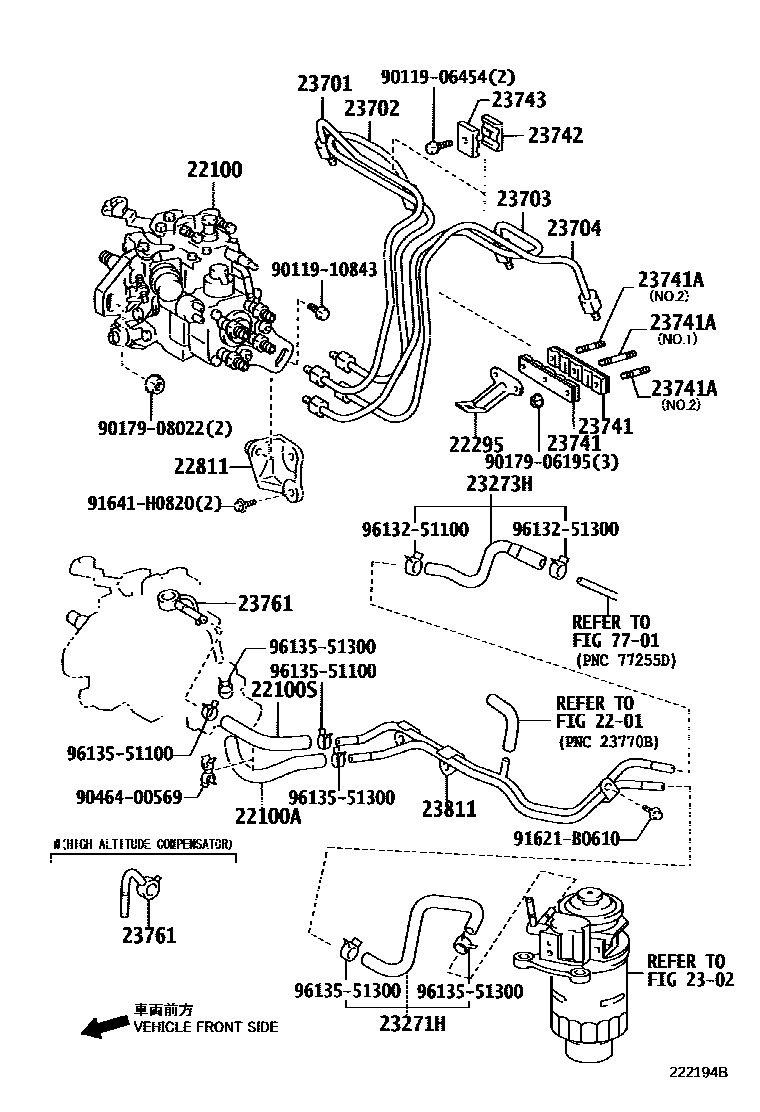

INJECTION PUMP ASSEMBLY
2201
22100PUMP ASSY, INJECTION OR SUPPLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
ENGINE-WITH(HIGH ALTITUDE COMPENSATOR)
22295BRACKET, INJECTION PUMP CONNECTOR
22811STAY, INJECTION PUMP, NO.1
2302
23271HHOSE, FUEL, NO.1
23273HHOSE, FUEL, NO.2
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)
NO.1
NO.2
23742CLAMP, INJECTION PIPE, NO.2
23743CLAMP, INJECTION PIPE, NO.3
23761PIPE, NOZZLE LEAKAGE, NO.1
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
7701
9011906454
main90119-06454
9011910843
main90119-10843
9017906195
main90179-06195
9017908022
main90179-08022
9046400569
main90464-00569
91621B0610
main91621-B0610
91641H0820
main91641-H0820
9613251100
main96132-51100
9613251300
main96132-51300
9613551100
main96135-51100
9613551300
main96135-51300
31 parts on this diagram · 1 diagram in section
