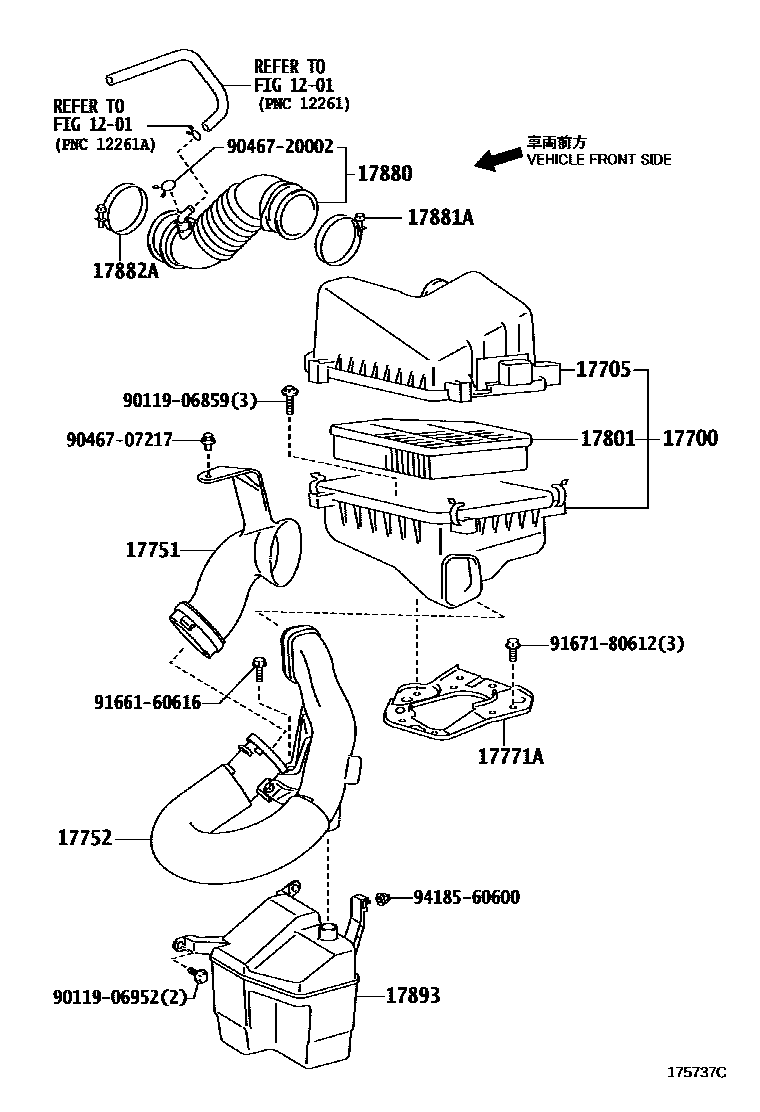

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-21181i1NZFE..NZE141..4FC200704-201311

main17700-37191i1ZZFE..ZZE142200708-201311

main17700-37211i1ZRFE,2ZRFE..ZRE14#201007

main17700-64520i2C..CE140200708-201007

17705CAP SUB-ASSY, AIR CLEANER

main17705-21161i1NZFE..NZE141..4FC200704-201103

sub17705-21162

main17705-21162i1NZFE..NZE141..4FC201104-201311

main17705-37061i1ZZFE..ZZE142..LHD..GEN200708-201103

sub17705-37062

main17705-37062i1ZZFE..ZZE142201104-201311

main17705-37081i1ZRFE,2ZRFE..ZRE14#201007-201103

sub17705-37082

main17705-37082i1ZRFE,2ZRFE..ZRE14#201104

main17705-64360i2C..CE140200708-201007

17751INLET, AIR CLEANER, NO.1

main17751-21190i2C..CE140200704-201311

main17751-37060i1Z#,2ZRFE..ZRE14#,ZZE142200708-201007

17752INLET, AIR CLEANER, NO.2

main17752-21070i1NZFE..NZE141..N200704-200810

main17752-21120i1NZFE..NZE141..4FC200708-201311

main17752-37070i1Z#,2ZRFE..ZRE14#,ZZE142200708-201007

main17752-64020i2C..CE140200708-201007

17771ABRACKET, AIR CLEANER

main17771-64010i2C..CE140200708-201007

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i1ZZFE..ZZE142..LHD..GEN200704-201311

main17801-26020i2C..CE140200708-201007

17880HOSE ASSY, AIR CLEANER

main17880-64480i2C..CE140200708-201007

17881HOSE, AIR CLEANER, NO.1

main17880-21110i1NZFE..NZE141..N200704-201311

main17880-37080i1ZRFE,2ZRFE..ZRE14#201007

main17881-22180i3ZZFE..ZZE141200708

main17881-22190i1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD200708-201311

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2C..CE140200708-201007

main96111-10650i3ZZFE..ZZE141200708

NO.2

main96111-10750i1NZFE..NZE141..N200704-201311

main96111-10750i1ZRFE,2ZRFE..ZRE14#201007

NO.1

main96111-10780i1Z#,2ZRFE..ZRE14#,ZZE142200708-201007

NO.2

main96111-10830i1ZZFE..ZZE142..LHD..GEN200708-201311

NO.1

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10650i1NZFE..NZE141..N200704-201311

17893RESONATOR, INTAKE AIR

main17893-22030i1ZZFE..ZZE142..LHD..GEN200708-201007

sub17893-22900

9011906859

main90119-06859

9011906952

main90119-06952

9046707217

main90467-07217

9046720002

main90467-20002

9166160616

main91661-60616

9167180612

main91671-80612

9418560600

main94185-60600

18 parts on this diagram · 4 diagrams in section
