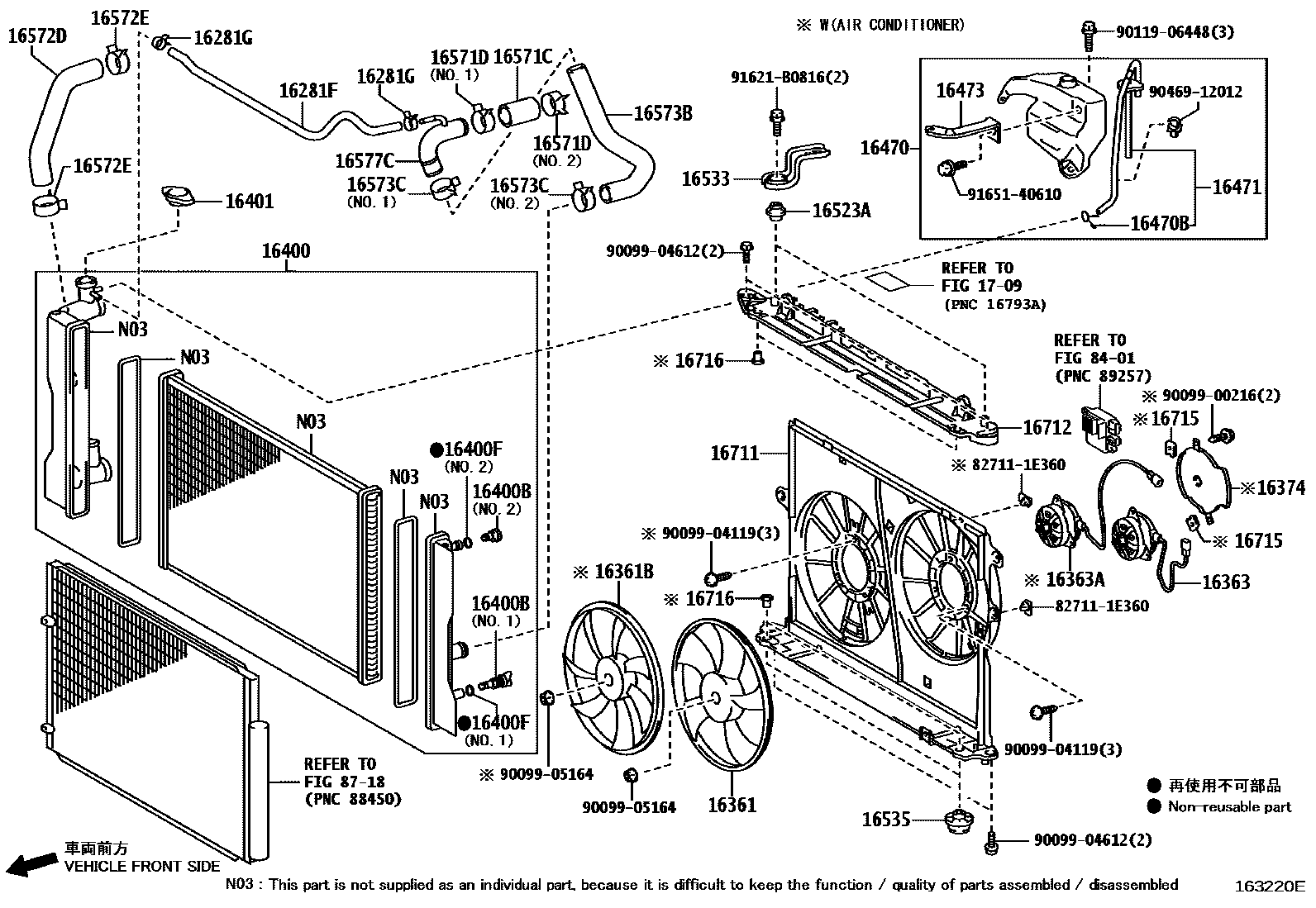

RADIATOR & WATER OUTLET
16281HOSE, WATER BY-PASS, NO.4
16281GCLIP(FOR WATER BY-PASS HOSE NO.5)
16361FAN
HOT AREA SPEC&AIR CONDITIONER-WITH OUT
sub16361-22130
HOT AREA SPEC&AIR CONDITIONER-WITH OUT
HOT AREA SPEC
16361BFAN, NO.2
16363MOTOR, COOLING FAN
HOT AREA SPEC
HOT AREA SPEC&AIR CONDITIONER-WITH OUT
16363AMOTOR, COOLING FAN, NO.2
16374INSULATOR, COOLING FAN MOTOR
16400RADIATOR ASSY
sub16410-22151
HOT AREA SPEC&AIR CONDITIONER-WITH OUT
sub16410-22171
HOT AREA SPEC
HOT AREA SPEC&AIR CONDITIONER-WITH OUT
HOT AREA SPEC&AIR CONDITIONER-WITH OUT
sub16410-22181
HOT AREA SPEC&AIR CONDITIONER-WITH OUT
HOT AREA SPEC
16400BPLUG, RADIATOR DRAIN COCK
NO.1
NO.2
NO.1
NO.2
16400FPACKING(FOR RADIATOR DRAIN COCK)
NO.1
NO.2
NO.1
NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16473SUPPORT(FOR RADIATOR RESERVE TANK)
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1
NO.2
16572HOSE, RADIATOR, OUTLET
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
NO.1
NO.2
16711SHROUD, FAN
HOT AREA SPEC
HOT AREA SPEC&AIR CONDITIONER-WITH OUT
16712SHROUD, FAN, NO.2
HOT AREA SPEC&AIR CONDITIONER-WITH OUT
HOT AREA SPEC
16715BRACKET, FAN SHROUD
16716CUSHION, FAN SHROUD
1709
8401
8718
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009900216
main90099-00216
9009904119
main90099-04119
9009904612
main90099-04612
9009905164
main90099-05164
9011906448
main90119-06448
9046912012
main90469-12012
91621B0816
main91621-B0816
9165140610
main91651-40610
43 parts on this diagram · 11 diagrams in section
