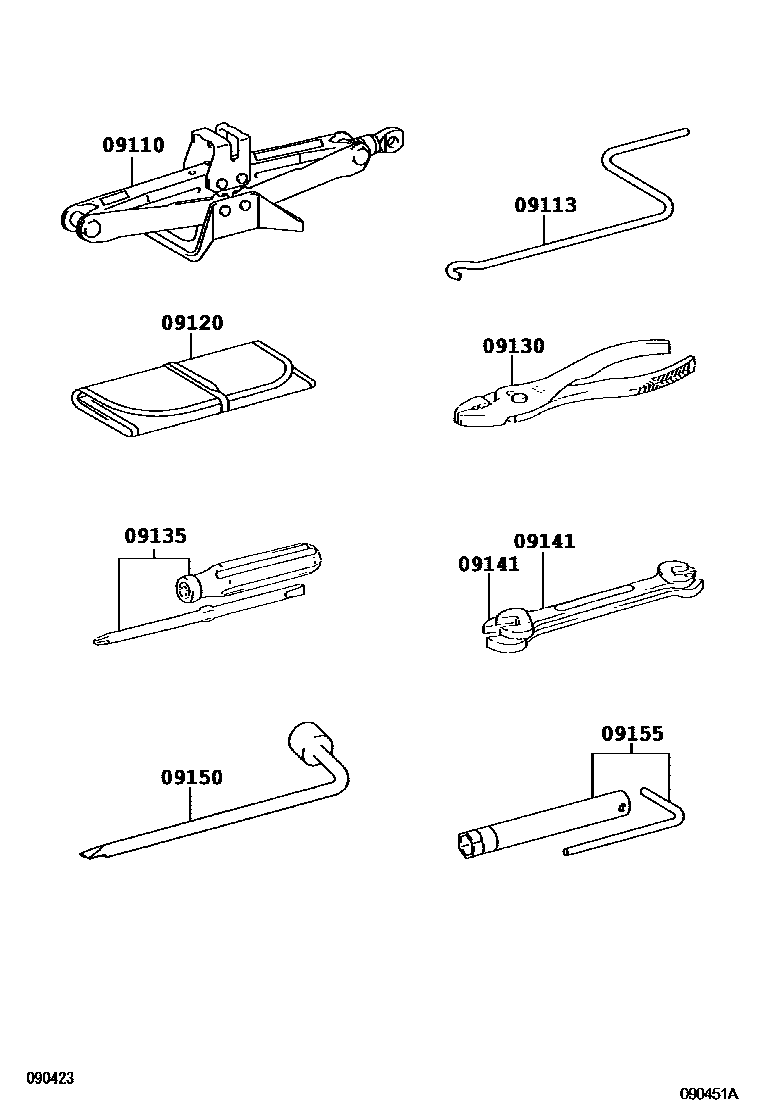

STANDARD TOOL

09110JACK ASSY

main09111-12160iNZE141..N200704-200902

sub09111-12210

main09111-12210iCE140,NZE141,ZZE14#..SED200903-201009

sub09111-12230

main09111-12230iCE140,NZE141,ZRE14#,ZZE142..SED201009

09113HANDLE, JACK

main09113-20050iNZE141..N201112

main09113-52010iZZE142..LHD..GEN;CE140,NZE141..SED200704-201112

09120BAG, TOOL

main09120-10040iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

09130PLIERS

main99913-11500iZZE142..LHD..GEN;CE140,NZE141..SED200708-201007

09135DRIVER, SCREW

main99915-10700iCE140,NZE141,ZRE14#,ZZE142..SED200708-201007

09141SPANNER

main99914-10810iCE140,NZE141,ZRE14#,ZZE142..SED200708-201007

8 X 10

main99914-11214iCE140,NZE141,ZRE14#,ZZE142..SED200708-201007

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35070iNZE141..N200704-201304

main09150-40010iCE140,NZE141,ZRE14#,ZZE142201305-201403

09155WRENCH, SPARK PLUG

main09155-74010iNZE141,ZZE14#..SED200708-201311

8 parts on this diagram · 1 diagram in section
