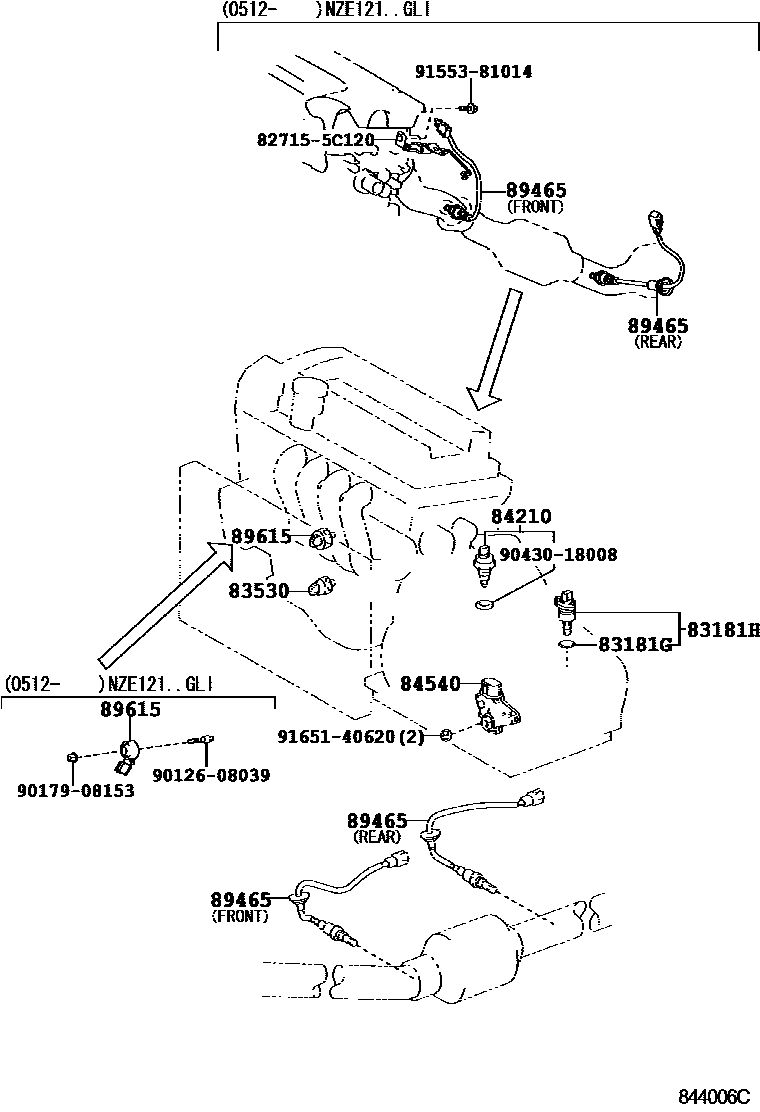

SWITCH & RELAY & COMPUTER
83181GSENSOR, SPEEDOMETER
TRANSAXLE = A245E
TRANSAXLE = U341E
83181HRING, O (FOR SPEEDOMETER SENSOR)
TRANSAXLE = U341E
TRANSAXLE = A245E
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
DENSO
DENSO
YAZAKI
YAZAKI
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
PART NUMBER LABEL=84540-46010
TYPE A:REFER TO ILLUSTRATION
P/N LABEL=8454052010; PART NUMBER LABEL=84540-52010; TYPE B:REFER TO ILLUSTRATION,P/N LABEL=8454052010
P/N LABEL=8454052050; TYPE B:REFER TO ILLUSTRATION,P/N LABEL=8454052050
89465SENSOR, OXYGEN
(L),FRONT
FRONT
REAR
FRONT
REAR
NO.1
NO.2
REAR
FRONT
89615SENSOR, KNOCK CONTROL
TOYOTA
827155C120BRACKET,WIRING HARNESS CLAMP
main82715-5C120
9012608039
main90126-08039
9017908153
main90179-08153
9043018008
main90430-18008
9155381014
main91553-81014
9165140620
main91651-40620
13 parts on this diagram · 12 diagrams in section
