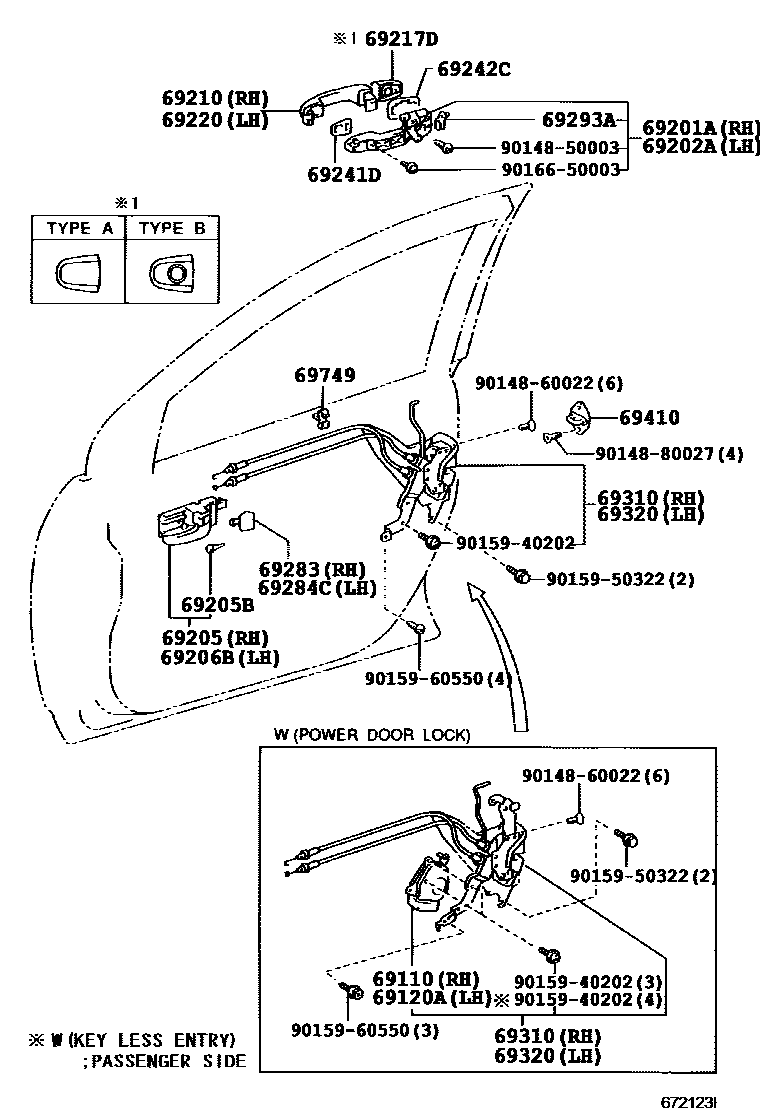

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
W(KEY LESS ENTRY)
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
W(KEY LESS ENTRY)
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-0D070-A0iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..GEN;CE120,NZE120,ZZE12#..SED..(20D,20DSA,CONQ,GLI,SESAL,XLI)..(ARL,PKN)200303-200507
IVORY,TRIM0#,(L)
sub69205-0D070
MD.GRAY,TRIM1#,(L)
sub69205-0D070
main69205-12200-A0iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..GEN;CE120,NZE120,ZZE12#..SED..(20D,20DSA,CONQ,GLI,SESAL,XLI)..(ARL,PKN)200303-200507
IVORY,TRIM0#,(J)
sub69205-12200
sub69205-0D070
main69205-12200-B4iNZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..(CONQ,GLI,XLI)..(ARL,GEN)200209-200708
MD.GRAY,TRIM1#
sub69205-12200
sub69205-0D070
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-0D070-A0iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..GEN;CE120,NZE120,ZZE12#..SED..(20D,20DSA,CONQ,GLI,SESAL,XLI)..(ARL,PKN)200303-200507
IVORY,TRIM0#,(L)
sub69206-0D070
MD.GRAY,TRIM1#,(L)
sub69206-0D070
main69206-12200-A0iZZE121..MTM..XLI;CE120,NZE120,ZZE122..LHD..GEN;CE120,NZE120,ZZE12#..SED..(20D,20DSA,CONQ,GLI,SESAL,XLI)..(ARL,PKN)200303-200507
IVORY,TRIM0#,(J)
sub69206-12200
sub69206-0D070
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATING
PAINT REQ.,PAKISTAN OR TAIWAN SPEC
sub69211-12903
PAINT REQ.
main69211-42010iZZE12#..XLI..GEN;ZZE122..LHD..GLI..GEN;CE120,NZE12#..(LX,XLI)..(GCC,GEN)200008-200808
NO PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR,TYPE B:REFER TO ILLUSTRATION, CHROME PLATED
*CR,TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY), CHROME PLATED
main69217-12030iZZE122..XLI..GEN;ZZE122..LHD..GLI..GEN;CE120,NZE120,ZZE121..XLI..(GCC,GEN)200008-200708
BLACK MATERIAL,TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LESS COLOR
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER WHITE 2,040
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),WHITE PEARL CS.,073
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.GR.,1D9
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.,199
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),GRAY M.M.,1C3
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER M.M.,1E7
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.,1C0
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLACK ME,205
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLACK MC.,209
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER RED II,3E5
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),RED M.M.,3N8
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BORDEAUX MC.,3P2
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK. RED M.M.,3Q3
sub69217-12040
TYPE A:REFER TO ILLUSTRATION;LIMITED(G.C.C.),BEIGE ME.,4M9
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DARK GREEN MC.,6R4
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.GREEN M.M.,6S3
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),TURQUOISE M.M.,769
sub69217-12040
main69217-12040-J0iZZE122..RHD;ZZE122..WG..GCC;ZZE122..LHD..SED;CE120,NZE12#,ZZE121..GCC,GEN200008-200708
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE M.M.,8P4
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),GRAYISH BLUE M.M.,8Q3
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE,8Q4
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LT.BLUE M.M.,8S1
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DARK PURPLE MC.,946
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.,1E7
sub69217-12040
TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LT.BLUE ME.,8Q6
sub69217-12040
*CR,TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY), CHROME PLATED
main69217-42010iZZE122..XLI..GEN;ZZE122..LHD..GLI..GEN;CE120,NZE120,ZZE121..XLI..(GCC,GEN)200209-200708
BLACK MATERIAL,TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LESS COLOR
main69217-42010iZZE122..XLI..GEN;ZZE122..LHD..GLI..GEN;CE120,NZE120,ZZE121..XLI..(GCC,GEN)200008-200404
BLACK MATERIAL
main69217-42010iZZE122..XLI..GEN;ZZE122..LHD..GLI..GEN;CE120,NZE120,ZZE121..XLI..(GCC,GEN)200008-200808
BLACK MATERIAL,TYPE B:REFER TO ILLUSTRATION
BLACK MATERIAL,TYPE B:REFER TO ILLUSTRATION, UNPAINTED
sub69217-42010
main69217-42020-B2iZZE121..LX;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(ARL,GEN)200008-200404
TYPE B:REFER TO ILLUSTRATION,SILVER ME.,199
sub69217-42020
sub69217-42010
main69217-42020-B2iZZE121..LX;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(ARL,GEN)200103-200401
TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.,199
sub69217-42020
sub69217-42010
main69217-42020-C2iNZE120..GCC;ZZE122..SED..GCC;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC);NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..GEN;NZE120,ZZE122..LHD..GLI..GEN200008-200404
BLACK MC.,209
sub69217-42020
sub69217-42010
main69217-42020-J2iZZE122..RHD;ZZE122..WG..GCC;ZZE122..LHD..SED;CE120,NZE12#,ZZE121..GCC,GEN200008-200708
TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4
sub69217-42020
sub69217-42010
TYPE B:REFER TO ILLUSTRATION;LIMITED(G.C.C.),PALE ORANGE MICA METALLIC,4M9
sub69217-42020
sub69217-42010
LESS COLOR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATING
PAINT REQ.,PAKISTAN OR TAIWAN SPEC
sub69211-12903
PAINT REQ.
NO PAINT REQ.
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
STONE,TRIM1#
sub69283-30040
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & WIRELESS DOOR LOCK)
W(MANUAL DOOR LOCK)
W(MANUAL DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
main69040-12530iZZE121..RHD..ATM;NZE120,ZZE121..RHD..MTM..(GLI,SESAL);CE120,ZZE122..RHD..(20DSA,CONQ,GLI,ULT,XLI)200008-200808
W(POWER DOOR LOCK & WIRELESS DOOR LOCK)
W(MANUAL DOOR LOCK)
W(MANUAL DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749CLAMP, FRONT DOOR LOCK LINK
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015950322
main90159-50322
9015960550
main90159-60550
9016650003
main90166-50003
26 parts on this diagram · 1 diagram in section
