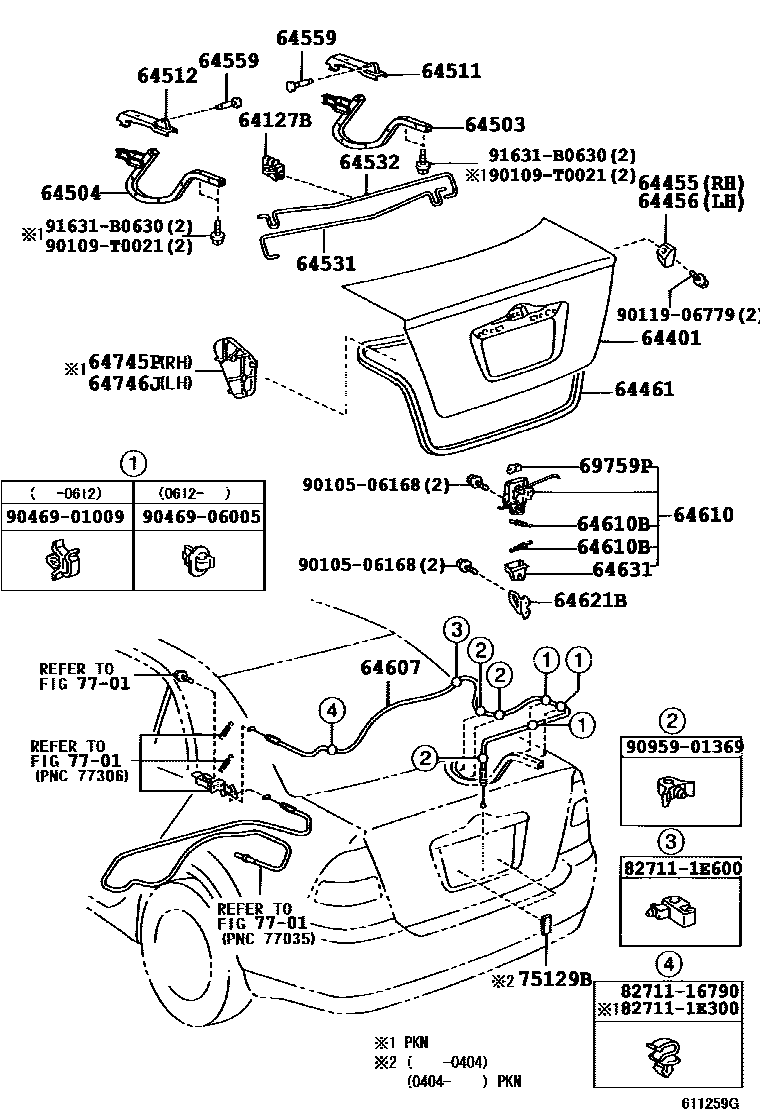

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33041iCE120,NZE12#,ZZE12#..SED200008-200708

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-12A10iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404-200708

LICENSE PLATE(330 X 165)

main64401-12A20iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200404-200708

LICENSE PLATE(330 X 165) & W(REAR SPOILER)

main64401-1A800iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200404

LICENSE PLATE(330 X 165)

main64401-1A810iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200008-200404

LICENSE PLATE(330 X 165) & W(REAR SPOILER)

main64401-1A820iCE120,NZE120,ZZE121..PKN200202-200507

main64401-1A840iNZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN)200110-200708

LICENSE PLATE(520 X 120)

main64401-1A840iZZE122..SED..ARL200404-200702

main64401-1A880iZZE122..SED..ARL200404-200702

W(REAR SPOILER)

main64401-1A880iNZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN)200110-200708

LICENSE PLATE(520 X 120) & W(REAR SPOILER)

main64401-1E050iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200209-200404

LICENSE PLATE(330 X 165)

main64401-1E060iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200209-200404

LICENSE PLATE(330 X 165) & W(REAR SPOILER)

64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH

main64455-02010iCE120,NZE120,ZZE121..PKN200202-200507

main64455-12010iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200702

64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH

main64456-02010iCE120,NZE120,ZZE122..PKN200202-200507

main64456-12010iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200702

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02060iCE120,NZE120,ZZE122..PKN200202-200603

main64461-02140iCE120,NZE120,ZZE122..PKN200603

main64461-12540iNZE12#,ZZE12#..SED200008-200105

sub64461-12550

main64461-12541iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200105-200309

sub64461-12542

main64461-12542iNZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN200309-200702

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-12150iCE120,NZE12#,ZZE12#..SED200008-200708

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-12150iCE120,NZE12#,ZZE12#..SED200008-200708

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-12270iCE120,NZE12#,ZZE12#..SED200008-200708

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64511-12270iCE120,NZE12#,ZZE12#..SED200008-200708

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02040iCE120,NZE120,ZZE122..PKN200202-200507

main64531-12660iZZE122..SED..ARL200008-200702

main64531-12660iNZE121..LX;CE120,NZE120,ZZE12#..SED..GEN200404

LICENSE PLATE(520 X 120)

main64531-12670iZZE122..SED;CE120,NZE12#,ZZE121..GEN200008-200209

W(REAR SPOILER)

main64531-12740iZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN200209-200702

W(REAR SPOILER)

main64531-12740iNZE121..LX;CE120,NZE120,ZZE12#..SED..GEN200404

LICENSE PLATE(520 X 120) & W(REAR SPOILER)

main64531-12750iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404

LICENSE PLATE(330 X 165)

main64531-12760iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200404

LICENSE PLATE(330 X 165) & W(REAR SPOILER)

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02040iCE120,NZE120,ZZE121..PKN200202-200507

main64532-12650iNZE121..LX;CE120,NZE120,ZZE12#..SED..GEN200404

LICENSE PLATE(520 X 120)

main64532-12650iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200008-200702

main64532-12660iZZE122..SED;CE120,NZE12#,ZZE121..GEN200008-200209

W(REAR SPOILER)

main64532-12670iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404

LICENSE PLATE(330 X 165)

main64532-12740iZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN200209-200702

W(REAR SPOILER)

main64532-12740iNZE121..LX;CE120,NZE120,ZZE12#..SED..GEN200404

LICENSE PLATE(520 X 120) & W(REAR SPOILER)

main64532-12750iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200404

LICENSE PLATE(330 X 165) & W(REAR SPOILER)

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iCE120,NZE12#,ZZE12#..SED200008-200708

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02060iCE120,NZE120,ZZE122..PKN200202-200507

main64607-12790iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200702

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-02050iCE120,NZE120,ZZE122..PKN200202-200507

main64610-12350iNZE121..LX;CE120,NZE120,ZZE12#..SED..GEN200404

LICENSE PLATE(520 X 120)

main64610-12350iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200008-200702

main64610-12370iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404

LICENSE PLATE(330 X 165)

64610BSPRING, TENSION(FOR LOCK)

main90506-05002iCE120,NZE12#,ZZE12#..SED200008-200507

WD=0.55,CW=17.25

main90506-06010iCE120,NZE12#,ZZE12#..SED200008-200702

WD=0.55,CW=16.75

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12070iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200702

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12050iCE120,NZE12#,ZZE12#..SED200008-200702

64745PCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-02050iCE120,NZE120,ZZE121..PKN200202-200507

64746JCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-02050iCE120,NZE120,ZZE121..PKN200202-200507

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-20040iCE120,NZE120,ZZE121..PKN200202-200507

main69759-24010iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200404

LICENSE PLATE(330 X 165)

main69759-24050iZZE122..SED..ARL200008-200702

main69759-24050iNZE121..LX;CE120,NZE120,ZZE12#..SED..GEN200404

LICENSE PLATE(520 X 120)

75129BCUSHION, REAR LICENCE PLATE

main75129-13020iCE120,NZE12#,ZZE12#..SED..(GCC,GEN,PKN)200008-200507

main75129-21010iCE120,NZE120,ZZE122..LHD..SED..GEN200209-200404

MIDDLE SOUTH AMERICA SPEC

7701

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

827111E600WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E600

9010506168

main90105-06168

90109T0021

main90109-T0021

9011906779

main90119-06779

9046901009

main90469-01009

9046906005

main90469-06005

9095901369

main90959-01369

91631B0630

main91631-B0630

32 parts on this diagram · 2 diagrams in section
