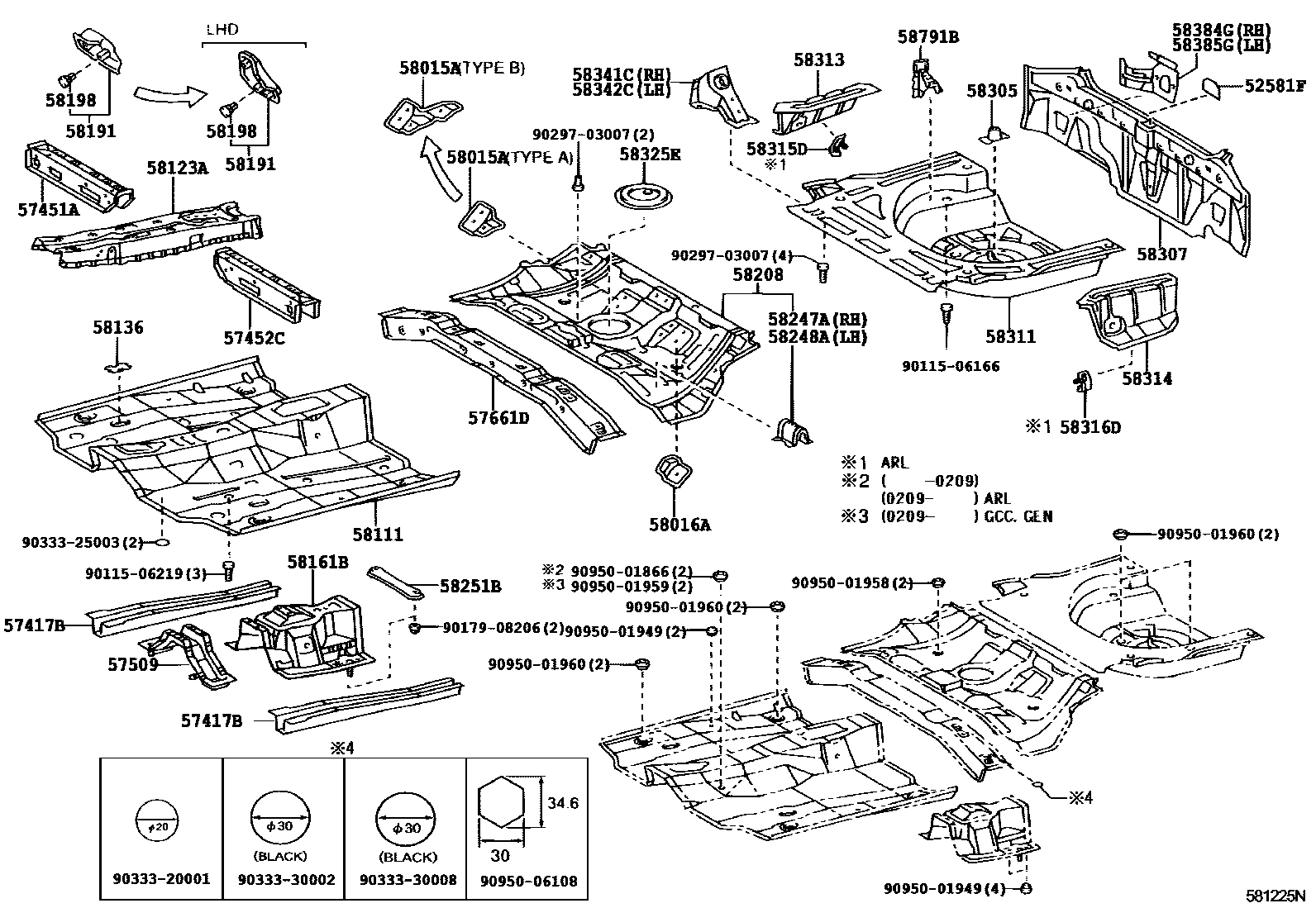

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1MIDDLE SOUTH AMERICA SPEC 0003 1 0004 1MIDDLE SOUTH AMERICA SPEC 0005 1

52581FPROTECTOR, REAR BUMPER

main52581-02010iCE120,NZE120,ZZE122..PKN200202-200507

main52581-12120iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200008-200702

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-13020iCE120,NZE12#,ZZE12#..GCC,GEN200105-200702

RH

main57418-13020iZZE122..SED..ARL200105-200702

LH

main57505-12070iCE120,NZE120,ZZE121..PKN200008-200507

57451AMEMBER, FRONT FLOOR CROSS, RH

main57051-12020iZZE122..SED..ARL200401-200702

main57451-12190iNZE12#,ZZE12#200008-200010

sub57451-12191

main57451-12191iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200010-200211

sub57451-12192

main57451-12192iCE120,NZE12#,ZZE12#..GCC,GEN200211-200404

sub57051-12020

main57451-12220iCE120,NZE120,ZZE121..PKN200202-200507

sub57451-12240

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-12020iNZE12#,ZZE12#200008-200010

sub57452-12021

main57452-12021iNZE12#,ZZE121..RHD200010-200702

main57452-12040iCE120,ZZE121..20DSA,SESAL200202-200207

sub57452-12120

main57452-12060iCE120,ZZE121..20DSA,SESAL200202-200507

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12040iZZE122..SED..ARL200008-200702

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-13100iNZE120,ZZE122..WG200008-200609

main57661-12010iCE120,NZE12#,ZZE12#..SED200008-200702

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12060iCE120,NZE120,ZZE121..PKN200202-200507

main58015-12060iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200008-200404

TYPE A:REFER TO ILLUSTRATION

main58015-12070iNZE120..WG;ZZE122..GCC,GEN;ZZE122..WG..ARL;CE120,NZE12#,ZZE121..GEN200008-200702

TYPE B:REFER TO ILLUSTRATION

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-13040iNZE120,ZZE122..WG..XLI200008-200609

main58016-32050iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200702

58111PAN, FRONT FLOOR

main58111-12350iCE120,NZE120,ZZE122..PKN200202-200507

main58111-12900iNZE12#,ZZE12#200008-200104

sub58111-12902

sub58136-33010

main58111-12902iCE120,NZE120,ZZE12#..LHD200104-200702

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12040iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200008-200702

58136COVER, FRONT FLOOR HOLE

main58136-02050iCE120,NZE120,ZZE122..PKN200605

main58136-33010iZZE122..SED..ARL200008-200702

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main57805-12070iZZE122..SED..ARL200008-200507

main57805-12080iCE120,NZE120,ZZE12#..LHD200008-200404

main57805-12140iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN200404-200702

58191FOOTREST, FRONT FLOOR

main58191-02060iCE120,NZE120,ZZE122..PKN200203-200507

main58191-12120iCE120,NZE12#,ZZE12#..RHD..(ARL,GEN)200008-200702

main58192-12070iCE120,NZE120,ZZE12#..LHD200008-200404

58198CLIP, FOOTREST

main58198-20210iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200507

main90467-09220iZZE122..SED..ARL200406-200702

58208PAN, CENTER FLOOR

main58211-12590iCE120,NZE120,ZZE122..LHD..SED..GEN200209-200404

MIDDLE SOUTH AMERICA SPEC & W(FIXED TYPE REAR SEAT)

sub58211-12918

main58211-12590iCE120,NZE120,ZZE122..PKN200507-200701

FOR BRAZIL,ARGENTINA

sub58211-12918

main58211-12600iCE120,NZE120,ZZE122..LHD..SED..GEN200209-200404

MIDDLE SOUTH AMERICA SPEC & W(SPLIT TYPE REAR SEAT)

sub58211-12919

main58211-12916iZZE122..SED..ARL200110-200702

main58211-12918iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200008-200404

W(FIXED TYPE REAR SEAT )

main58211-12919iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200008-200404

W(SPLIT TYPE REAR SEAT)

main58211-12932iCE120,NZE120,ZZE122..PKN200701

main58211-13250iZZE122..WG..ARL200110-200404

sub58211-13910

main58211-13910iNZE120,ZZE122..WG200008-200609

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-02070iCE120,NZE120,ZZE122..PKN200701

main58247-12070iZZE122..SED..ARL200008-200702

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-02070iCE120,NZE120,ZZE122..PKN200701

main58247-12070iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200008-200702

58251BBRACE, FLOOR PANEL, FRONT

main58251-12030iCE120,NZE12#,ZZE12#200008-200702

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iZZE122..ARL,GEN;ZZE122..SED..GCC;CE120,NZE12#,ZZE121..SED200008-200702

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-13140iNZE120,ZZE122..WG..XLI200008-200609

main58307-1A430iZZE122..SED..GEN;ZZE122..SED..XLI..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200404-200702

main58307-1A430iZZE122..SED..XLI..GCC;ZZE122..SED..(ARL,GEN);NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..LX,XLI200110-200404

W(FIXED TYPE REAR SEAT )

main58307-1A550iNZE12#,ZZE12#..SED..(LX,XLI)200008-200110

W(FIXED TYPE REAR SEAT )

main58307-1A560iCE120,NZE120,ZZE121..PKN200202-200507

main58307-1A580iZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN200110-200404

W(SPLIT TYPE REAR SEAT)

main58307-1A590iZZE12#..SED;NZE12#..(GLI,XLI)..GEN200008-200110

W(SPLIT TYPE REAR SEAT)

58311PAN, REAR FLOOR

main58311-12250iZZE121..RHD..MTM..GEN;ZZE122..LHD..SED..XLI;NZE12#..SED..(LX,XLI)..(GCC,GEN)200008-200404

W(FIXED TYPE REAR SEAT )

sub58311-12270

sub90333-40001

main58311-12250iCE120,NZE120,ZZE121..PKN200202-200405

sub58311-12270

sub90333-40001

main58311-12260iZZE12#..SED;NZE12#..(GLI,XLI)..GEN200008-200010

W(SPLIT TYPE REAR SEAT)

sub58311-12250

main58311-12270iCE120,NZE120,ZZE122..PKN200404-200708

main58311-13230iNZE120,ZZE122..WG200110-200404

sub58311-13310

sub90950-01958

main58311-13310iNZE120,ZZE122..WG200404-200609

58313PANEL, REAR FLOOR SIDE, RH

main58313-12290iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200702

main58313-12300iCE120,NZE120,ZZE121..PKN200202-200507

58314PANEL, REAR FLOOR SIDE, LH

main58314-12290iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

main58314-12300iCE120,NZE120,ZZE121..PKN200202-200507

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-12080iZZE122..ARL200110-200702

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-12080iZZE122..ARL200110-200702

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12110iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH

main58341-12020iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200702

main58341-13040iNZE120,ZZE122..WG200008-200609

58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH

main58342-12020iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200702

main58342-13040iNZE120,ZZE122..WG200008-200609

58384GGUSSET, LOWER BACK, UPPER RH

main58384-12160iZZE122..SED..ARL200110-200702

58385GGUSSET, LOWER BACK, UPPER LH

main58385-12160iCE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)200110-200708

58791BCARRIER, JACK

main58791-12200iCE120,NZE12#,ZZE12#200008-200702

9011506166

main90115-06166

9011506219

main90115-06219

9017908206

main90179-08206

9029703007

main90297-03007

9033320001

main90333-20001

9033325003

main90333-25003

9033330002

main90333-30002

9033330008

main90333-30008

9095001866

main90950-01866

9095001949

main90950-01949

9095001958

main90950-01958

9095001959

main90950-01959

9095001960

main90950-01960

9095006108

main90950-06108

45 parts on this diagram · 5 diagrams in section
