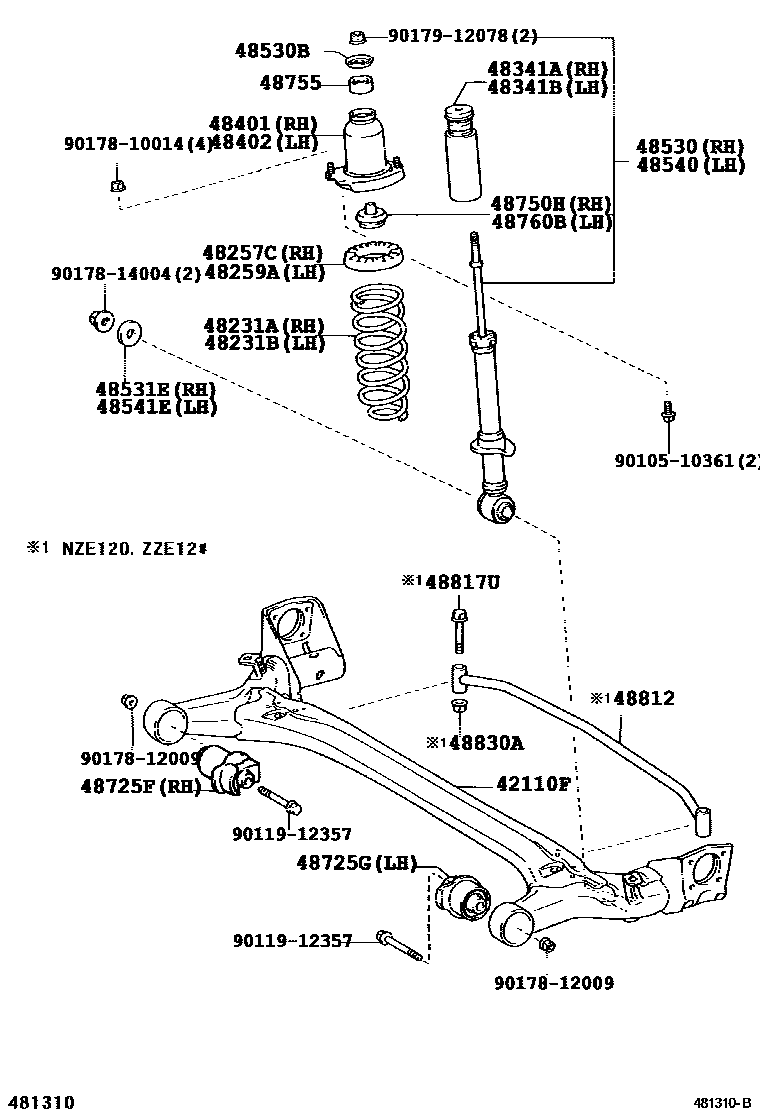

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42101-02020iCE120,NZE120,ZZE121..PKN200202-200507

main42101-12100iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120..GCC,GEN200008-200404

W(STEEL TYPE ENGINE UNDER COVER)

sub42101-12120

main42101-12100iZZE122..RHD..WG..GEN200211-200404

W(STEEL TYPE ENGINE UNDER COVER & ABS)

sub42101-12120

main42101-12110iZZE122..LHD..WG;CE120,ZZE122..SED..(GCC,GEN)200008-200404

W(STEEL TYPE ENGINE UNDER COVER & ABS)

sub42101-12130

main42101-12120iZZE122..RHD..XLI;CE120,NZE120..GEN;ZZE122..LHD..WG..GEN200404-200708

ROUGH ROAD PACKAGE

main42101-12130iCE120..GEN;ZZE122..RHD..SED..XLI200404-200708

ROUGH ROAD PACKAGE & W(DISC BRAKE)

main42101-12130iZZE122..ARL,GCC200404-200708

ROUGH ROAD PACKAGE

main42101-12140iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..GEN200411-200708

main42101-12150iNZE121..GLI200404-200708

W(DISCHARGE HEADLAMP)

main42101-32030iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..GEN200008-200411

sub42101-12140

main42101-32040iZZE122..LHD..SED..XLI..GEN;NZE121,ZZE12#..(GLI,LX)..GEN200404-200708

W(DISC BRAKE)

main42101-32040iZZE121..LHD;CE120,ZZE122..GEN200008-200404

W(VSC)

48231ASPRING, COIL, REAR RH

main48231-1H540iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200404

main48231-1H560iNZE120,ZZE122..WG..XLI200008-200609

main48231-1H580iCE120,NZE120,ZZE122..PKN200202-200507

main48231-1H580iZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN)200008-200404

ROUGH ROAD PACKAGE

main48231-1H590iNZE120,ZZE122..WG..XLI200008-200609

ROUGH ROAD PACKAGE

main48231-1H770iZZE122..WG..ARL200110-200609

main48231-1H780iZZE122..SED..ARL200110-200702

48231BSPRING, COIL, REAR LH

main48231-1H540iCE120,NZE12#,ZZE12#..SED..(GCC,GEN)200008-200404

main48231-1H560iNZE120,ZZE122..WG..XLI200008-200609

main48231-1H580iZZE121..LHD;CE120,NZE120,ZZE122..SED..(GCC,GEN)200008-200404

ROUGH ROAD PACKAGE

main48231-1H580iCE120,NZE120,ZZE122..PKN200202-200507

main48231-1H590iNZE120,ZZE122..WG..XLI200008-200609

ROUGH ROAD PACKAGE

main48231-1H770iZZE122..WG..ARL200110-200609

main48231-1H780iZZE122..SED..ARL200110-200702

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-02010iCE120,NZE120,ZZE121..PKN200202-200507

main48257-32090iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200702

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-02010iCE120,NZE120,ZZE122..PKN200202-200507

main48257-32090iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-47010iZZE122..SED..ARL200008-200702

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-47010iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200702

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48401-32020iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200702

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48403-32010iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200702

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09C00iCE120,NZE120,ZZE121..PKN200311-200407

MARK 48530-02480

main48530-09E50iCE120,NZE120,ZZE121..PKN200408-200410

MARK 48530-1A440

main48530-09J80iCE120,NZE120,ZZE121..PKN200407-200408

MARK 48530-1A440

main48530-09K10iCE120,NZE120,ZZE122..PKN200410-200808

MARK 48530-12A40

main48530-80028iNZE121,ZZE121200008-200104

MARK 48530-1A390

sub48530-80046

main48530-80029iZZE121..ATM200008-200104

MARK 48530-1A400,W(REAR STABILIZER)

sub48530-80047

main48530-80029iZZE121..MTM200008-200104

MARK 48530-1A400

sub48530-80047

main48530-80032iNZE120,ZZE122200008-200104

MARK 48530-1A430

sub48530-80050

main48530-80033iNZE120,ZZE122..SED200008-200104

MARK 48530-1A440,ROUGH ROAD PACKAGE

sub48530-80052

main48530-80034iNZE120,ZZE122..WG200008-200104

MARK 48530-1A450,ROUGH ROAD PACKAGE

sub48530-80053

main48530-80046iNZE121,ZZE121..RHD..GEN200104-200209

MARK 48530-1A390

sub48530-80154

main48530-80047iCE120,ZZE121..GEN200104-200209

MARK 48530-1A400

sub48530-80092

main48530-80050iNZE121..LX200104-200209

MARK 48530-1A430

sub48530-80095

main48530-80052iZZE121..LHD;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN200104-200311

MARK 48530-1A440

sub48530-80147

main48530-80053iZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC200104-200311

MARK 48530-1A450

sub48530-80149

main48530-80062iZZE122..ARL200110-200311

MARK 48530-1A530

sub48530-80150

main48530-80091iNZE121,ZZE121..RHD..GEN200209-200311

MARK 48530-1A610

sub48530-80154

main48530-80092iCE120,ZZE121..GEN200209-200311

MARK 48530-1A620

sub48530-80148

main48530-80095iCE120,NZE120,ZZE122..LHD..GEN200209-200311

MARK 48530-1A650

sub48530-80146

main48530-80146iNZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN200311-200408

MARK 48530-12B30

sub48530-80512

main48530-80147iZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN)200311-200404

MARK 48530-12A40

main48530-80148iCE120,ZZE121..GEN200311-200408

MARK 48530-1A260

main48530-80149iNZE120,ZZE122..WG..XLI200311-200404

MARK 48530-12B00

main48530-80150iZZE122..ARL200311-200408

MARK 48530-12A80

main48530-80154iNZE121,ZZE121..RHD..GEN200311-200408

MARK 48530-12A50

main48530-80197iZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN)200404-200408

MARK 48530-12B50

sub48530-80147

main48530-80198iNZE120,ZZE122..WG..XLI200404-200408

MARK 48530-12B60,ROUGH ROAD PACKAGE

sub48530-80513

main48530-80270iNZE121,ZZE121..RHD..GEN200408-200607

MARK 48530-12A50

sub48530-80403

main48530-80274iZZE122..ARL200408-200607

MARK 48530-12A80

sub48530-80406

main48530-80276iNZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN200408-200610

MARK 48530-12B30

sub48530-80408

main48530-80277iCE120,ZZE121..GEN200408-200607

MARK 48530-12A60

sub48530-80409

main48530-80278iZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN)200408-200607

MARK 48530-12B50

sub48530-80410

main48530-80279iNZE120,ZZE122..WG..XLI200408-200609

MARK 48530-12B60,ROUGH ROAD PACKAGE

sub48530-80411

main48530-80403iNZE121,ZZE121..RHD200607-200708

MARK 48530-12A51

main48530-80406iZZE122..ARL200607-200702

MARK 48530-12A81

main48530-80408iNZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN200610-200708

MARK 48530-12B31

main48530-80409iCE120,ZZE121..GEN200607-200708

MARK 48530-12A61

sub48530-80410

main48530-80410iZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN)200607-200708

MARK 48530-12B51

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200702

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90560-14028iZZE122..SED..ARL200008-200702

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09J80iCE120,NZE120,ZZE121..PKN200407-200408

MARK 48530-1A440

main48530-09K10iCE120,NZE120,ZZE121..PKN200410-200808

MARK 48530-12A40

main48530-80028iNZE121,ZZE121200008-200104

MARK 48530-1A390

sub48530-80046

main48530-80029iZZE121..MTM200008-200104

MARK 48530-1A400

sub48530-80047

main48530-80029iZZE121..MTM200008-200104

MARK 48530-1A400,W(REAR STABILIZER)

sub48530-80047

main48530-80032iNZE120,ZZE122200008-200104

MARK 48530-1A430

sub48530-80050

main48530-80033iNZE120,ZZE122..SED200008-200104

MARK 48530-1A440,ROUGH ROAD PACKAGE

sub48530-80052

main48530-80034iNZE120,ZZE122..WG200008-200104

MARK 48530-1A450,ROUGH ROAD PACKAGE

sub48530-80053

main48530-80046iNZE121,ZZE121..RHD..GEN200104-200209

MARK 48530-1A390

sub48530-80154

main48530-80047iCE120,ZZE121..GEN200104-200209

MARK 48530-1A400

sub48530-80092

main48530-80050iZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN200104-200209

MARK 48530-1A430

sub48530-80095

main48530-80052iCE120,NZE120,ZZE121..PKN;CE120,NZE120,ZZE122..LHD..SED..GEN200104-200311

MARK 48530-1A440

sub48530-80147

main48530-80053iNZE120,ZZE122..WG..XLI200104-200311

MARK 48530-1A450

sub48530-80149

main48530-80062iZZE122..ARL200110-200311

MARK 48530-1A530

sub48530-80150

main48530-80091iNZE121,ZZE121..RHD..GEN200209-200311

MARK 48530-1A610

sub48530-80154

main48530-80092iCE120,ZZE121..GEN200209-200311

MARK 48530-1A620

sub48530-80148

main48530-80095iNZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN200209-200311

MARK 48530-1A650

sub48530-80146

main48530-80146iNZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN200311-200408

MARK 48530-12B30

sub48530-80512

main48530-80147iZZE121..LHD;CE120,NZE121..(LX,XLI)..GEN;NZE120,ZZE122..SED..(GCC,GEN)200311-200404

MARK 48530-12A40

main48530-80148iCE120,ZZE121..GEN200311-200408

MARK 48530-1A260

main48530-80149iNZE120,ZZE122..WG..XLI200311-200404

MARK 48530-12B00

main48530-80150iZZE122..ARL200311-200408

MARK 48530-12A80

main48530-80154iNZE121,ZZE121..RHD..GEN200311-200408

MARK 48530-12A50

main48530-80197iZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN)200404-200408

MARK 48530-12B50

sub48530-80147

main48530-80198iNZE120,ZZE122..WG..XLI200404-200408

MARK 48530-12B60,ROUGH ROAD PACKAGE

sub48530-80513

main48530-80270iNZE121,ZZE121..RHD..GEN200408-200607

MARK 48530-12A50

sub48530-80403

main48530-80274iZZE122..ARL200408-200607

MARK 48530-12A80

sub48530-80406

main48530-80276iNZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN200408-200610

MARK 48530-12B30

sub48530-80408

main48530-80277iCE120,ZZE121..GEN200408-200607

MARK 48530-12A60

sub48530-80409

main48530-80278iZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN)200408-200607

MARK 48530-12B50

sub48530-80410

main48530-80279iNZE120,ZZE122..WG..XLI200408-200609

MARK 48530-12B60,ROUGH ROAD PACKAGE

sub48530-80411

main48530-80403iNZE121,ZZE121..RHD200607-200708

MARK 48530-12A51

main48530-80406iZZE122..ARL200607-200702

MARK 48530-12A81

main48530-80408iNZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN200610-200708

MARK 48530-12B31

main48530-80409iCE120,ZZE121..GEN200607-200708

MARK 48530-12A61

sub48530-80410

main48530-80410iZZE121..LHD;CE120,NZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN)200607-200708

MARK 48530-12B51

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90560-14028iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

48725FBUSH, REAR AXLE CARRIER, RH

main48725-12560iNZE121..GLI;ZZE121..RHD..GEN200404

W(ABS)

main48725-12560iCE120..RHD..GEN;NZE121,ZZE121..GEN200110-200404

main48725-12560iCE120,ZZE121..XLI200404

W(ABS & DISC BRAKE)

main48725-12560iCE120,ZZE121..XLI200404

W(DISC BRAKE)

main48725-12570iZZE121..LHD..LX200404

ROUGH ROAD PACKAGE & W(DISC BRAKE);W(DRUM BRAKE)

main48725-12570iZZE121..LHD..LX200404

ROUGH ROAD PACKAGE;W(DISC BRAKE)

main48725-12570iNZE121..LX200008-200404

ROUGH ROAD PACKAGE

main48725-12570iCE120,NZE120,ZZE121..PKN200202-200507

main48725-12580iZZE122..ARL200110-200702

48725GBUSH, REAR AXLE CARRIER, LH

main48725-12560iNZE121..GLI;ZZE121..RHD..GEN200404

W(DISC BRAKE)

main48725-12560iCE120..RHD..GEN;NZE121,ZZE121..GEN200110-200404

main48725-12560iNZE121..GLI;ZZE121..RHD..GEN200404

W(ABS)

main48725-12560iNZE121..GLI;ZZE121..RHD..GEN200404

W(ABS & DISC BRAKE)

main48725-12570iCE120,ZZE121..XLI200404

ROUGH ROAD PACKAGE & W(DISC BRAKE);W(DRUM BRAKE)

main48725-12570iZZE121..LHD;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200404

ROUGH ROAD PACKAGE

main48725-12570iCE120,NZE120,ZZE122..PKN200202-200507

main48725-12570iNZE121..LX;NZE120,ZZE122..GCC,GEN200404

ROUGH ROAD PACKAGE;W(DISC BRAKE)

main48725-12580iZZE122..ARL200110-200702

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-02020iCE120,NZE120,ZZE121..PKN200202-200507

main48750-47010iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

48755SUPPORT, REAR SUSPENSION

main48755-02020iCE120,NZE120,ZZE122..PKN200202-200507

main48755-63010iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200702

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-02020iCE120,NZE120,ZZE122..PKN200202-200507

main48750-47010iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200702

48812BAR, STABILIZER, REAR

main48812-12400iCE120,NZE120,ZZE122..LHD..GEN200209-200404

ROUGH ROAD PACKAGE

main48812-12400iZZE122..SED..ARL200404-200702

OD=20.0

main48812-13010iNZE121..LX200008-200209

sub48812-13050

main48812-13030iCE120,NZE120,ZZE121..PKN200202-200311

sub48812-68030

main48812-13040iNZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN200209-200301

sub48812-13050

main48812-13050iNZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN200404

OD=22.2

main48812-13050iCE120,NZE120,ZZE122..LHD..GEN200209-200404

MIDDLE SOUTH AMERICA SPEC

main48812-32480iCE120,NZE120,ZZE12#..ARL,GCC,GEN200008-200209

ROUGH ROAD PACKAGE

main48812-68030iCE120,NZE120,ZZE122..PKN200311-200507

48817UBOLT(FOR REAR STABILIZER)

main90105-14138iNZE121..LX200008-200702

48830ANUT(FOR REAR STABILIZER LINK)

main90179-14062iCE120,NZE120,ZZE122..PKN200008-200702

9010510361

main90105-10361

9011912357

main90119-12357

9017810014

main90178-10014

9017812009

main90178-12009

9017814004

main90178-14004

9017912078

main90179-12078

28 parts on this diagram · 2 diagrams in section
