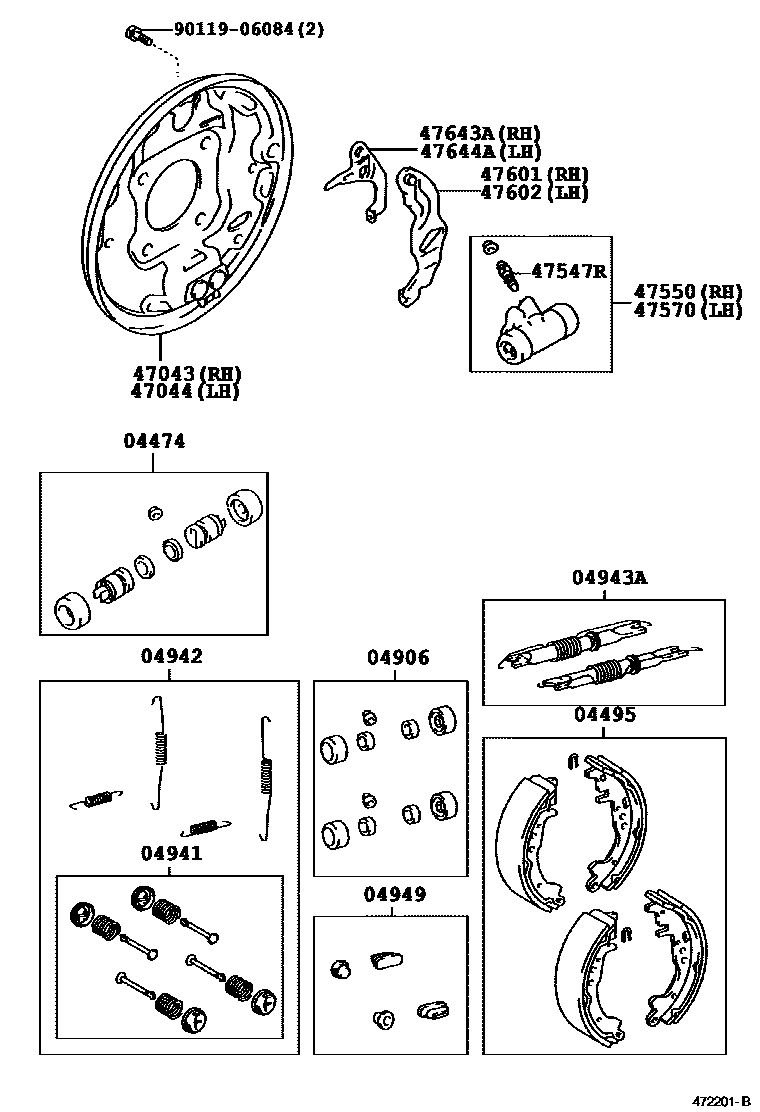

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52010×2iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..(GCC,GEN)200209-200404

04495SHOE KIT, REAR BRAKE

main04495-52020iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..(GCC,GEN)200008-200209

MARK NBK LN521

main04495-52040iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..(GCC,GEN)200404-200708

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-52010iZZE122..LHD..WG..GEN;CE120,NZE120..LHD..GEN200008-200404

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-12010iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

main04941-46010iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..(GCC,GEN)200502-200708

04942SPRING KIT, REAR BRAKE

main04942-12010iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

main04942-46010iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..(GCC,GEN)200502-200708

04943ASTRUT KIT, REAR BRAKE

main04943-12010iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

04949PLUG KIT, REAR BRAKE

main04949-12010iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20140iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20140iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-52011iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-52011iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

main47601-52100iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..(GCC,GEN)200512

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

main47602-52100iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..(GCC,GEN)200512

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iZZE121..XLI;NZE120..GCC;ZZE122..RHD..XLI;CE120,NZE120..RHD..GEN200008-200209

9011906084

main90119-06084

17 parts on this diagram · 1 diagram in section
