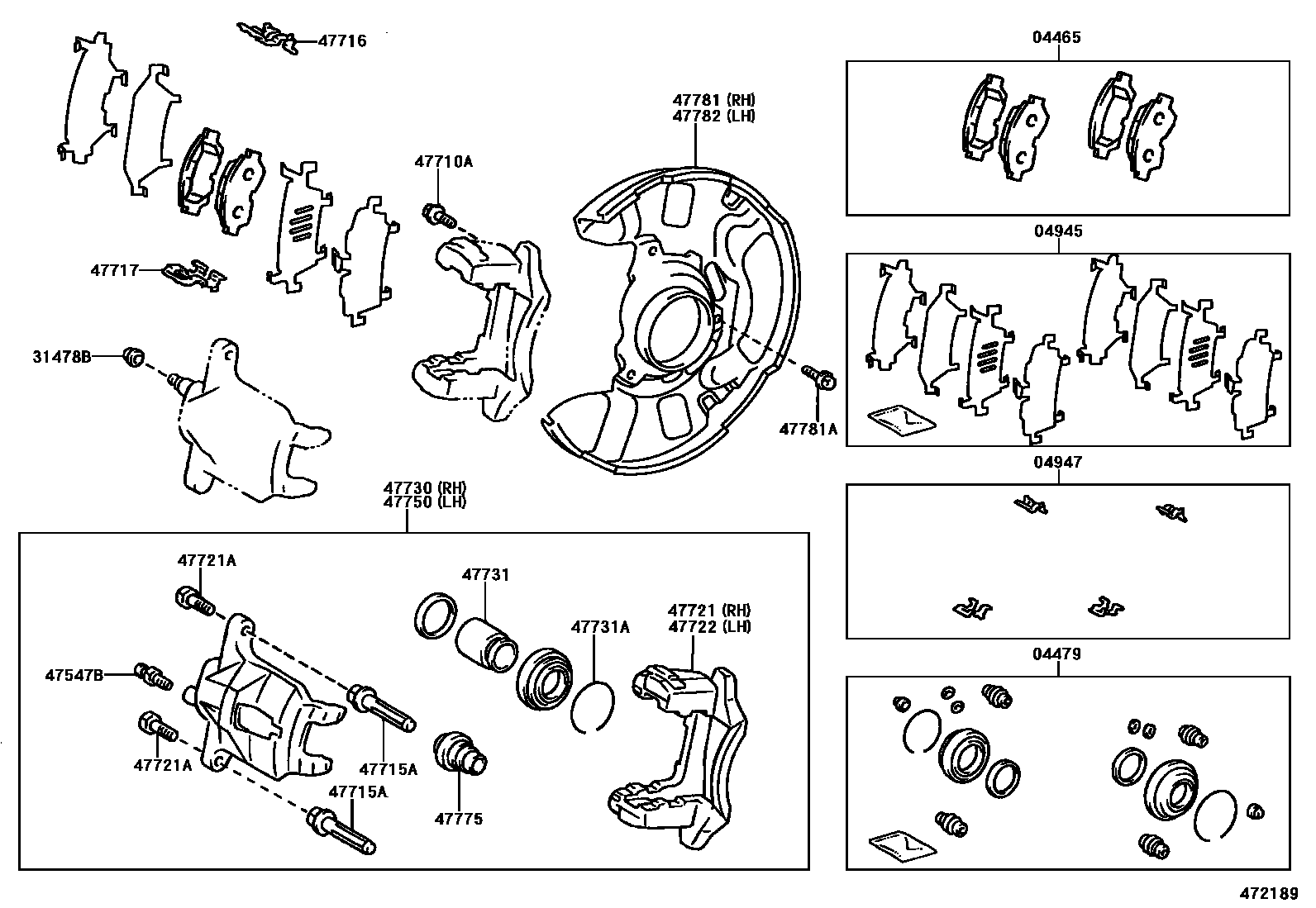

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1W(ABS) 0004 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-12580iNZE120200008-200104

MARK AISIN PC554

sub04465-12581

main04465-12581iNZE120..GCC,GEN200104-200708

MARK AISIN PC554

main04465-12590iNZE121,ZZE12#200008-200104

MARK AISIN PC554

sub04465-12591

main04465-12591iNZE121,ZZE12#200104-200105

MARK AISIN PC554

sub04465-12592

main04465-12592iNZE120..PKN;CE120,NZE121,ZZE12#200105-200708

MARK AISIN PC554

main04465-21030iZZE122..CONQ200510-200702

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-13020iZZE122..CONQ200605-200702

main04479-20320iCE120,NZE121,ZZE12#..GCC,GEN200008-200708

sub04478-47060

main04479-20320iZZE122..CONQ200510-200702

W(ABS)

sub04478-47060

main04479-20330iZZE122..CONQ200510-200604

sub04478-13020

main04479-47020iNZE120..GCC,GEN200008-200708

sub04478-47050

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-13030iZZE122..CONQ200510-200702

main04945-20210iCE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN)200008-200708

main04945-20210iZZE122..CONQ200510-200702

W(ABS)

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20110iNZE120..PKN;CE120,NZE121,ZZE12#200008-200708

main04947-20110iZZE122..CONQ200510-200702

W(ABS)

main04947-20120iZZE122..CONQ200510-200702

main04947-47010iNZE120..GCC,GEN200008-200708

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN200008-200702

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200708

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22080iZZE122..CONQ200510-200702

main47715-52010iCE120,NZE12#,ZZE12#..GCC,GEN200008-200510

main47715-52010iZZE122..CONQ200510-200702

W(ABS)

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-12070iNZE120..GCC,GEN200008-200404

main47716-20200iCE120,NZE121,ZZE12#..GCC,GEN200008-200510

main47716-20200iZZE122..CONQ200510-200702

W(ABS)

main47716-20210iZZE122..CONQ200510-200702

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12030iNZE120..GCC;NZE120..RHD..GEN200008-200404

main47717-20100iZZE122..CONQ200008-200510

main47717-20100iZZE122..CONQ200510-200702

W(ABS)

main47717-20110iZZE122..CONQ200510-200702

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12220iNZE120..GCC,GEN200008-200404

main47721-20440iCE120,NZE121,ZZE12#..GCC,GEN200008-200510

main47721-20440iZZE122..CONQ200510-200702

W(ABS)

main47721-20460iZZE122..CONQ200510-200702

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12040iNZE120..GCC,GEN200008-200404

main47722-20130iZZE122..SED..ARL200008-200510

main47722-20130iZZE122..CONQ200510-200702

W(ABS)

main47722-20150iZZE122..CONQ200510-200702

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12490iNZE120..GCC,GEN200008-200404

main47730-20600iCE120,NZE120,ZZE122..PKN200008-200510

main47730-20600iZZE122..CONQ200510-200702

W(ABS)

main47730-20640iZZE122..CONQ200510-200702

47731PISTON, FRONT DISC BRAKE

main47731-12170iNZE120..LHD..GEN200008-200404

main47731-20260iCE120,NZE120,ZZE122..PKN200008-200510

main47731-20260iZZE122..CONQ200510-200702

W(ABS)

main47731-44010iZZE122..CONQ200510-200702

sub47731-33010

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iZZE122..ARL;CE120,ZZE122..LHD..GEN200008-200510

main90520-86005iZZE122..CONQ200510-200702

W(ABS)

main90522-66001iNZE120..LHD..GEN200008-200702

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12490iNZE120..GCC,GEN200008-200404

main47750-20510iZZE122..SED..ARL200008-200510

main47750-20510iZZE122..CONQ200510-200702

W(ABS)

main47750-20640iZZE122..CONQ200510-200702

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iZZE122..CONQ200510-200604

sub47775-50010

main47775-50010iZZE122..CONQ200605-200702

main47775-52010iZZE122..CONQ200510-200702

W(ABS)

sub47775-02130

main47775-52010iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200510

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02090iCE120,NZE120,ZZE121..PKN200205-200507

main47781-12240iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200708

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iCE120,NZE120,ZZE122..PKN200008-200708

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02090iCE120,NZE120,ZZE122..PKN200205-200507

main47782-12240iCE120,NZE12#,ZZE12#..GCC,GEN200008-200708

21 parts on this diagram · 4 diagrams in section
