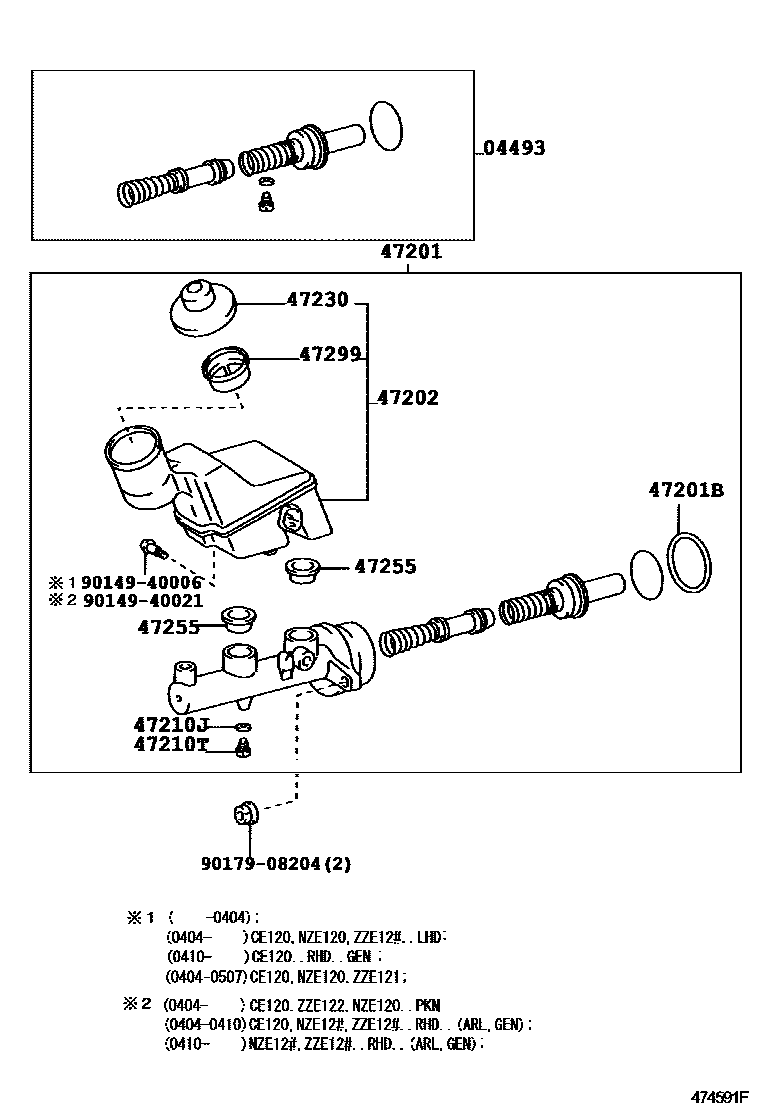

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-1A010iCE120,NZE120,ZZE121..PKN200008-200405

sub04493-1A030

main04493-1A030iCE120,NZE120,ZZE122..PKN200404-200708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12B50iCE120,NZE120..20D,GLI,XLI200708

main47201-1A330iZZE122..SED..ATM..ARL200008-200702

main47201-1A340iCE120..RHD..GEN200008-200702

main47201-1A360iNZE120,ZZE12#..LHD..ATM200008-200404

main47201-1A370iZZE121..LHD..MTM;NZE120,ZZE122..MTM..GCC200008-200404

main47201-1A390iCE120,NZE120..(20D,GLI,XLI)..PKN200204-200707

main47201-1A400iZZE121..ATM..PKN200204-200507

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iZZE122..ARL;CE120,NZE120,ZZE122..LHD..GEN200008-200702

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-12120iNZE121,ZZE12#..RHD..ATM..(ARL,GEN)200008-200404

sub47220-12121

sub90149-40021

main47220-12121iZZE122..WG..ATM..ARL;NZE121,ZZE12#..RHD..ATM..GEN200404-200702

main47220-12130iCE120,NZE12#,ZZE12#..RHD..MTM..(ARL,GEN)200008-200404

sub47220-12131

sub90149-40021

main47220-12131iCE120..RHD..GEN200404-200702

main47220-12140iNZE120,ZZE12#..LHD..ATM200008-200404

main47220-12150iCE120,NZE120,ZZE12#..LHD..MTM200008-200404

main47220-12160iCE120,NZE120,ZZE121..MTM..PKN200204-200404

sub47220-12161

sub90149-40021

main47220-12161iCE120..RHD..GEN200404-200507

main47220-12170iZZE121..ATM..PKN200204-200404

sub47220-12171

sub90149-40021

main47220-12171iZZE122..ATM..PKN200404-200507

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200112-200702

main90430-06104iNZE121..MTM..LX200008-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iNZE121..MTM..LX200008-200702

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iCE120..RHD..GEN200008-200702

main47230-24010iCE120,NZE120,ZZE122..PKN200204-200507

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iNZE121..MTM..LX200008-200702

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iCE120..RHD..GEN200204-200507

main47299-25010iNZE121..MTM..LX200008-200702

9014940006

main90149-40006

9014940021

main90149-40021

9017908204

main90179-08204

12 parts on this diagram · 1 diagram in section
