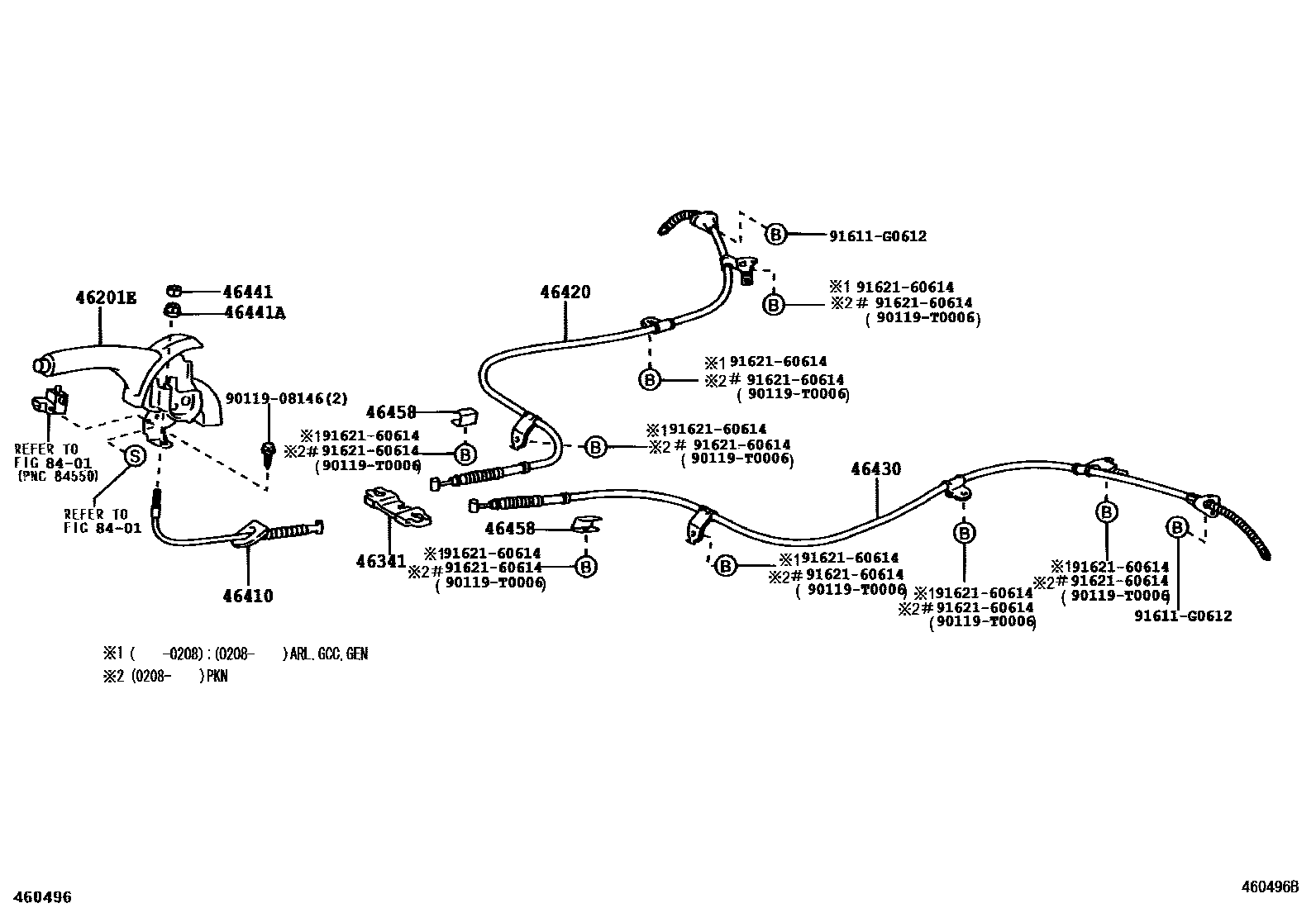

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02070-E0iCE120,NZE120,ZZE122..PKN200202-200603

SANDAL WOOD,TRIM0#

main46201-02340-E0iCE120,NZE120,ZZE122..PKN200603

SANDAL WOOD,TRIM0#

main46201-12230-B0iZZE122..RHD..WG..GEN200211-200404

ROUGH ROAD PACKAGE & W(ABS),DK.GRAY,TRIM0#

main46201-12230-B0iZZE122..RHD..WG..GEN200404-200609

DK.GRAY,TRIM1#

main46201-12230-B0iZZE122..RHD..SED..XLI200008-200708

W(REAR DRUM BRAKE),DK.GRAY,TRIM1#

main46201-12230-E0iZZE122..RHD..SED..XLI;CE120,NZE120..RHD..GEN200008-200708

W(REAR DRUM BRAKE),SANDAL WOOD,TRIM0#

main46201-12240-B0iZZE121..MTM..XLI;CE120,NZE120..LHD..GEN200008-200708

DK.GRAY,TRIM1#

main46201-12240-B0iCE120,NZE120,ZZE121..LHD..(GLI,XLI)..GEN200008-200209

DK.GRAY,TRIM15,17

main46201-12240-B0iCE120,NZE120,ZZE121..LHD..(GLI,XLI)..GEN200209-200404

W(REAR DRUM BRAKE),DK.GRAY,TRIM1#

main46201-12240-E0iZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..LHD..(GLI,XLI)..GEN200209-200404

W(REAR DRUM BRAKE),SANDAL WOOD,TRIM0#

main46201-12240-E0iZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..LHD..(GLI,XLI)..GEN200008-200708

SANDAL WOOD,TRIM0#

main46201-12250-B0iZZE122..SED..ARL200110-200401

W(REAR DISC BRAKE),DK.GRAY,TRIM0#

main46201-12250-B0iZZE122..ULT200404-200702

DK.GRAY,TRIM1#

main46201-12250-B0iZZE122..WG..ARL;ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI)200008-200708

W(REAR DISC BRAKE),DK.GRAY,TRIM1#

main46201-12250-B0iZZE122..ULT200404-200702

DK.GRAY,TRIM0#

main46201-12250-E0iZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI)200008-200708

W(REAR DISC BRAKE),SANDAL WOOD,TRIM0#

main46201-12260-B0iCE120,ZZE12#..LHD..SED..GEN200209-200708

W(REAR DISC BRAKE),DK.GRAY,TRIM1#

main46201-12260-B0iCE120,ZZE12#..LHD..SED..GEN200008-200209

W(ABS),DK.GRAY,TRIM15,17

main46201-12260-B0iZZE122..SED..GCC200008-200402

DK.GRAY,TRIM1#

main46201-12260-B0iZZE122..LHD..SED..GEN;CE120,ZZE121..LHD..MTM..XLI200209-200402

W(ABS),DK.GRAY,TRIM1#

main46201-12260-E0iCE120,ZZE12#..LHD..GEN200209-200708

W(REAR DISC BRAKE),SANDAL WOOD,TRIM0#

main46201-12260-E0iCE120,ZZE12#..LHD200008-200402

W(ABS),SANDAL WOOD,TRIM0#

main46201-12290-B0iNZE120..SED..GCC;NZE120..LHD..GLI200209-200708

CHROME PLATED,DK.GRAY,TRIM1#

main46201-12290-E1iNZE120..GCC;NZE120..LHD..GLI200209-200708

CHROME PLATED,SANDAL WOOD,TRIM0#

main46201-12320-B0iNZE121,ZZE12#..RHD..(GLI,LX)200209-200708

CHROME PLATED,DK.GRAY,TRIM1#

main46201-12320-E0iNZE121,ZZE12#..RHD..(GLI,LX)200209-200708

CHROME PLATED,SANDAL WOOD,TRIM0#

main46201-12330-B0iZZE121..LHD..LX;ZZE122..LHD..SED200209-200708

CHROME PLATED,DK.GRAY,TRIM1#

main46201-12330-B0iZZE122..WG..GCC200404-200609

DK.GRAY,TRIM1#

main46201-12330-E0iZZE121..LHD..LX;ZZE122..WG..GCC;ZZE122..LHD..SED200209-200708

CHROME PLATED,SANDAL WOOD,TRIM0#

main46201-12340-B0iNZE120..RHD..GLI..GEN200209-200708

CHROME PLATED,DK.GRAY,TRIM1#

main46201-12340-E0iNZE120..RHD..GLI..GEN200209-200708

CHROME PLATED,SANDAL WOOD,TRIM0#

46341EQUALIZER, PARKING BRAKE

main46341-20070iCE120,NZE120,ZZE121..PKN200008-200702

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02060iCE120,NZE120,ZZE122..PKN200202-200603

main46410-12270iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12490iCE120,NZE120,ZZE122..PKN200202-200702

main46420-12490iZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN200008-200404

W(REAR DISC BRAKE)

main46420-12510iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..(GCC,GEN)200008-200404

main46420-12510iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..(GCC,GEN)200404

W(REAR DRUM BRAKE)

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12400iCE120,NZE121,ZZE12#..ARL,GCC,GEN200008-200404

W(REAR DISC BRAKE)

main46430-12400iCE120,NZE120,ZZE121..PKN200202-200702

main46430-12410iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..(GCC,GEN)200404

W(REAR DRUM BRAKE)

main46430-12410iZZE122..RHD..XLI;ZZE122..LHD..WG..GEN;CE120,NZE120,ZZE121..(GLI,XLI)..(GCC,GEN)200008-200404

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200008-200702

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iCE120,NZE120,ZZE122..PKN200107-200702

main90179-06171iNZE12#,ZZE12#200008-200603

46458RETAINER, CABLE

main46458-02030iCE120,NZE120,ZZE121..PKN200202-200507

main46458-28010iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200702

8401

9011908146

main90119-08146

90119T0006

main90119-T0006

91611G0612

main91611-G0612

9162160614

main91621-60614
