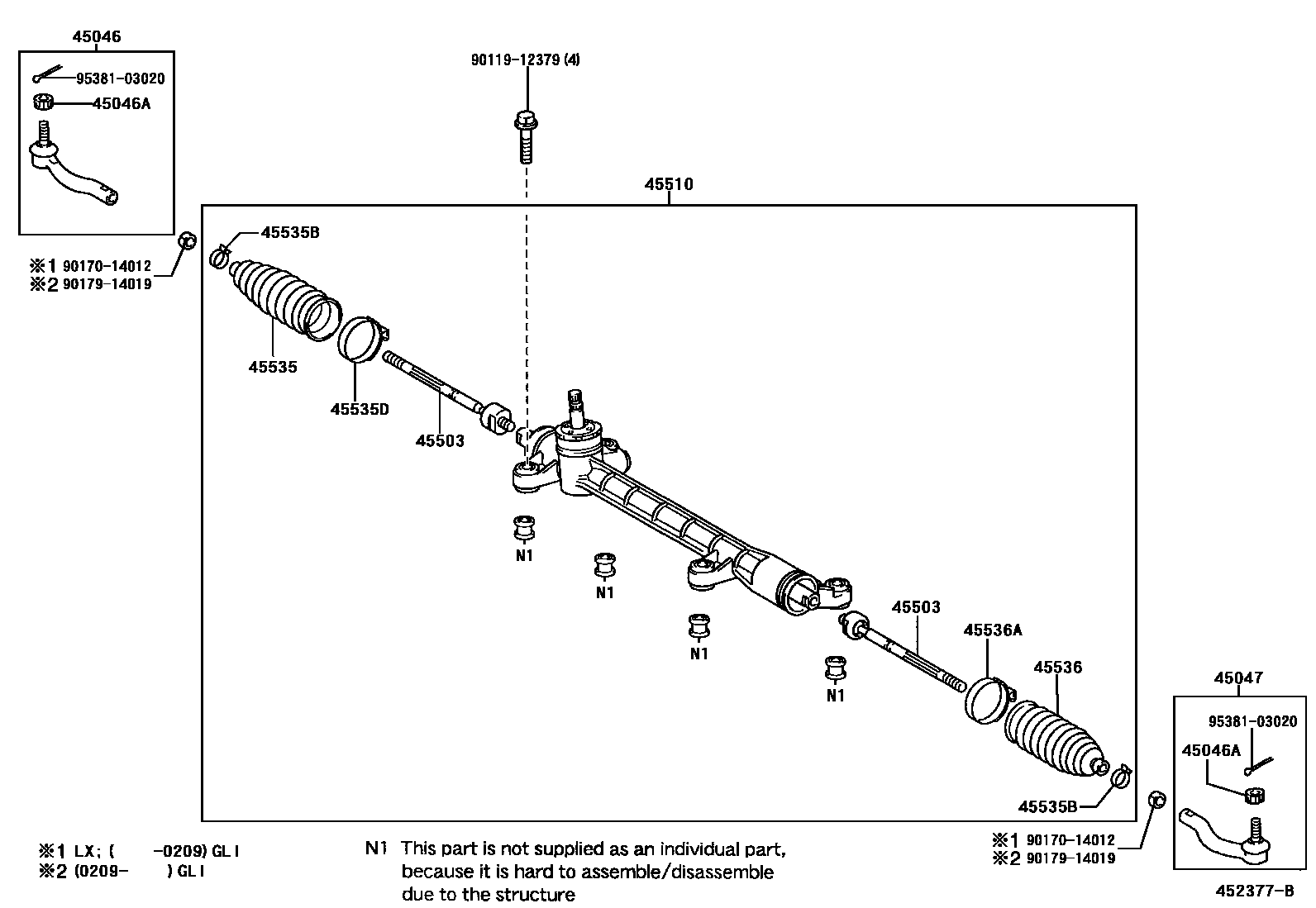

FRONT STEERING GEAR & LINK

0001 1MANUAL STEERING 0002 1MANUAL STEERING 0003 1 0005 1 0006 1 0007 1 0009 1 0010 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09160iZZE122..PKN200507

main45046-19265iNZE121200008-200209

main45046-49115iZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200209

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iCE120,NZE12#,ZZE12#..GCC,GEN200209-200404

45047END SUB-ASSY, TIE ROD, LH

main45047-09050iZZE121..PKN200202-200507

(L)

main45047-19115iNZE121200008-200209

main45047-49045iCE120,NZE120,ZZE12#..ARL,GCC,GEN200404-200708

45503END SUB-ASSY, STEERING RACK

main45503-09220×2iZZE121..PKN200202-200507

main45503-12130×2iNZE121;ZZE121..XLI;NZE120,ZZE122..XLI..GCC200008-200209

W(MANUAL STEERING)

main45503-19255×2iCE120..LHD;ZZE122..ARL;ZZE122..LHD..WG..GEN;NZE120,ZZE122..LHD..GLI..GEN; NZE120,ZZE122..LHD..SED..XLI..GEN200008-200404

W(POWER STEERING)

45510GEAR ASSY, STEERING

main45510-12280iNZE120,ZZE122..LHD..XLI..GEN200008-200404

main45510-12290iNZE121..LX200404

main45510-12330iNZE121..GLI200404

45535BOOT, STEERING RACK, NO.1

main45535-02030iZZE122..PKN200507

WIRE TYPE CLAMP

main45535-13010iZZE121..PKN200202-200507

BAND TYPE CLAMP

main45535-32070iZZE122..ARL200404-200510

main45535-52060iNZE121;NZE120..GCC200404

W(MANUAL STEERING)

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46174×2iNZE121;NZE120..GCC200404

(L)

main90467-19019×2iCE120,NZE120,ZZE12#..GCC,GEN200209-200404

main90467-19021×2iNZE121200008-200404

(J)

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90080-58059iZZE121..PKN200202-200507

WIRE TYPE CLAMP

main90460-55016iZZE122..PKN200507

BAND TYPE CLAMP

main90460-58008iNZE121;NZE120,ZZE12#..LHD..XLI200008-200404

45536BOOT, STEERING RACK, NO.2

main45535-02030iZZE122..PKN200507

WIRE TYPE CLAMP

main45535-13010iZZE122..ARL200510-200702

main45535-32070×2iCE120,NZE120,ZZE12#..LHD200008-200404

main45535-52060iNZE121;NZE120,ZZE12#..LHD..XLI200008-200404

W(MANUAL STEERING)

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90080-58059iZZE122..PKN200507

WIRE TYPE CLAMP

main90460-55016×2iZZE121..PKN200202-200507

BAND TYPE CLAMP

main90460-58008iNZE121;NZE120,ZZE12#..LHD..XLI200209-200404

9011912379

main90119-12379

9017014012

main90170-14012

9017914019

main90179-14019

9538103020

main95381-03020

14 parts on this diagram · 8 diagrams in section
