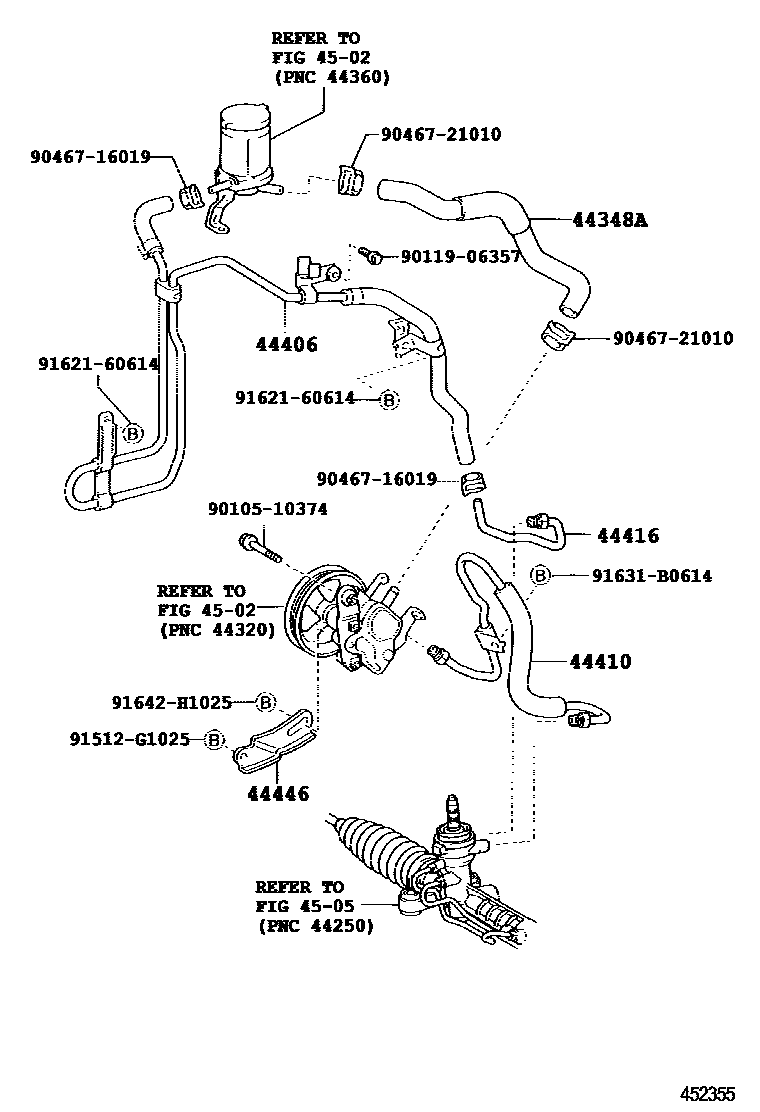

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1GULF SPEC 0009 1 0010 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-02041iZZE121..PKN200202-200507

main44348-12080iNZE120200008-200107

main44348-12081iNZE120..GCC,GEN200209-200404

main44348-12090iZZE12#200008-200107

main44348-12091iZZE122..ARL;ZZE122..LHD..GEN200107-200404

main44348-12100iCE120..PKN200507

44406TUBE SUB-ASSY, RETURN

main44406-02071iZZE122..PKN200507

main44406-12230iZZE122..ATM;NZE120,ZZE121;ZZE122..MTM..GEN200008-200107

main44406-12231iNZE120..PKN200507

main44406-12240iCE120..PKN200110-200507

main44406-12260iZZE122..MTM..GCC; ZZE122..MTM..GEN200008-200107

GULF SPEC

main44406-12261iZZE12#..LHD..MTM200209-200404

GULF SPEC

44410TUBE ASSY, PRESSURE FEED

main44410-02090iZZE122..PKN200507

main44410-12550iNZE120..RHD..GEN200008-200209

main44410-12600iZZE122..ARL200008-200404

main44410-12610iCE120..RHD200110-200203

main44410-12611iCE120..RHD..GEN200404-200708

main44410-12640iNZE120..LHD200404-200708

main44410-12650iZZE121..LHD;ZZE122..GCC200008-200209

main44410-12690iCE120..LHD200110-200203

main44410-12691iCE120..LHD200209-200404

main44410-12720iZZE122..ARL200510-200702

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-02040iZZE122..PKN200507

main44416-12250iCE120..RHD..GEN200110-200209

main44416-12270iZZE122..ARL200404-200510

main44416-13011iZZE122..ARL200510-200702

44446STRUT, ADJUSTING

main44446-52010iNZE120..GCC;NZE120..RHD..GEN200008-200209

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510374

main90105-10374

9011906357

main90119-06357

9046716019

main90467-16019

9046721010

main90467-21010

91512G1025

main91512-G1025

9162160614

main91621-60614

91631B0614

main91631-B0614

91642H1025

main91642-H1025

15 parts on this diagram · 9 diagrams in section
