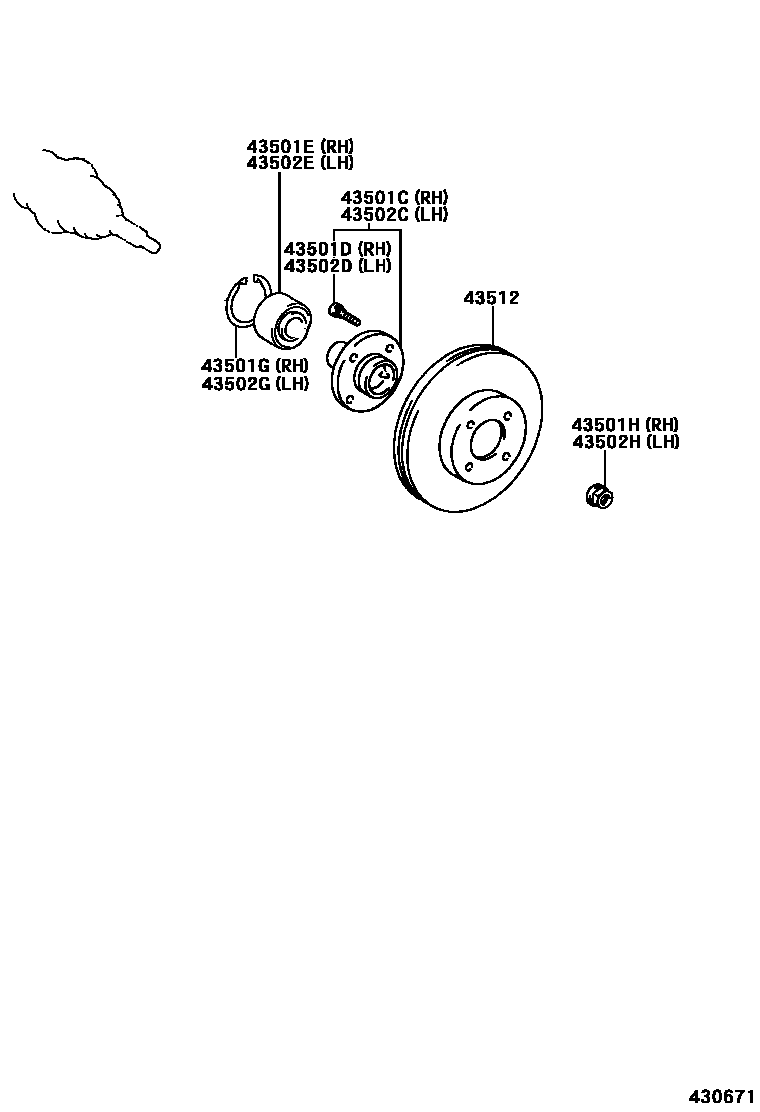

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-12140iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200008-200702

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iCE120,NZE12#,ZZE12#..ARL,GCC,GEN200008-200702

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36137iCE120,NZE120,ZZE121..PKN200202-200507

main90363-40066iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200708

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN200008-200702

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-12140iZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN200008-200702

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36137iCE120,NZE120,ZZE122..PKN200202-200507

main90363-40066iCE120,NZE12#,ZZE12#..GCC,GEN200008-200702

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iCE120,NZE12#,ZZE12#200008-200708

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iCE120,NZE120,ZZE121..PKN200008-200702

43512DISC, FRONT

main43512-02150iCE120,NZE120,ZZE122..PKN200208-200507

main43512-12610iNZE120..GCC,GEN200008-200406

sub43512-12611

main43512-12611iNZE120..GCC,GEN200406-200708

main43512-12620iCE120,NZE120,ZZE121..PKN200008-200406

sub43512-12621

main43512-12621iZZE122..CONQ200406-200702

W(ABS)

main43512-12621iCE120,NZE121,ZZE12#..GLI,LX,ULT,XLI200406-200708

main43512-12631iZZE122..CONQ200510-200702

11 parts on this diagram · 1 diagram in section
